Epson SC-P600 Service Manual

SC-P600 Revision D
SE Group Confidential (Related Staff Only)
Maintenance Lubrication Points and Instructions 73

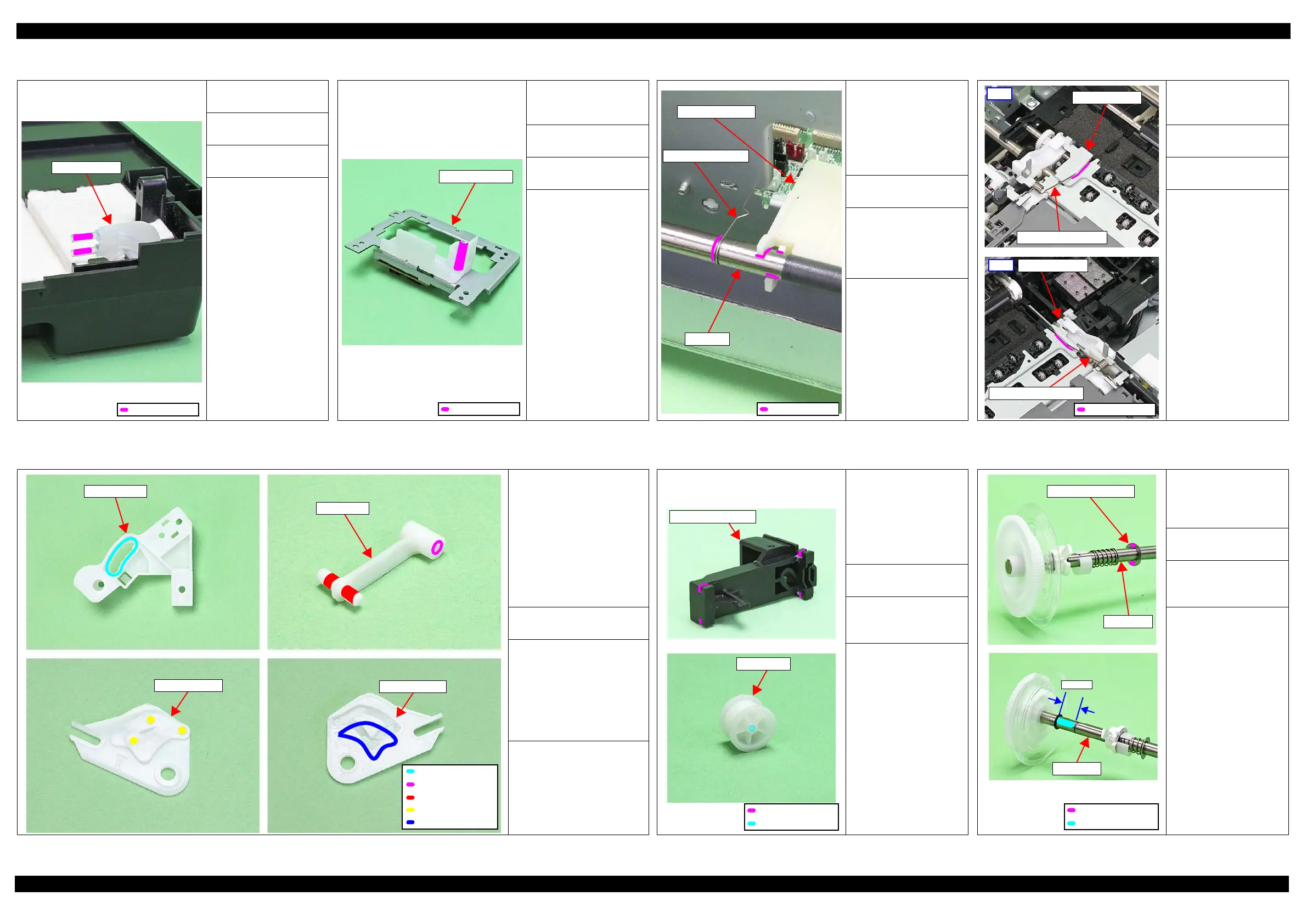

3.2 Lubrication Points and Instructions
Figure 3-1. Waste Ink Tube Figure 3-2. CR Support Plate
<Lubrication Point>
Waste Ink Tube (x2)
<Type>
CR06
<Application Amount>
Adequate amount
<Remarks>
Apply with Flux Dispenser.
Application Point
Waste Ink Tube
<Lubrication Point>
Contact point of the Ink
Tube
<Type>
G-74
<Application Amount>
Adequate amount
<Remarks>
Apply with Flux Dispenser.
Application Point
CR Support Plate
Figure 3-3. Rear Paper Guide / PF Grounding Spring Figure 3-4. Star Wheel Assy
<Lubrication Point>
1. Rear Paper Guide
(Contact points of the PF
Roller)
2. PF Grounding Spring
(Contact points of the PF
Roller)
<Type>
G-45
<Application Amount>
1.
φ 1 mm x adequate
amount
2.
φ 1 mm x half of the
circumference
<Remarks>
Apply with injector.
Application Point
PF Grounding Spring
Rear Paper Guide
PF Roller
<Lubrication Point>
Contact points of the
Torsion Spring, 47.45 (x2)
<Type>
G-26
<Application Amount>
φ 2 mm x 3 mm
<Remarks>
 Spread it with brush after
application with injector.
Application Point
Right
Star Wheel Assy
Torsion Spring, 47.45
Left
Star Wheel Assy
Torsion Spring, 47.45
Figure 3-5. Stopper Tray Unit
<Lubrication Point>
1. Stopper Tray
(Contact point of the
Compression Spring Cover)
2. Bearing of the Lever Link
3. Shaft of the Lever Link
4. Cam Front Tray
(Protrusion x3)
5. Cam Front Tray (Contact
point of the Lever Link)
<Type>
G-26
<Application Amount>
1. φ 2 mm x adequate amount
2. φ 2 mm x 3 mm
3. φ 2 mm x half of the
circumference
4.
φ 1 mm x 2 mm
5.
φ 1 mm x adequate amount
<Remarks>
 1. 4. 5.
Apply with injector.
 2. 3.
Spread it with brush after
application with injector.
Lever Link
2. Application Point
1. Application Point
3. Application Point
4. Application Point
5. Application Point
Cam Front Tray
Stopper Tray
Cam Front Tray
Figure 3-6. Driven Pulley Figure 3-7. PF Roller
<Lubrication Point>
1. Contact points (x4)
between the Driven
Pulley Holder and the
Frame
2. Shaft hole of the Driven
Pulley (x1 each)
<Type>
G-26
<Application Amount>
1.
φ 1 mm x 2 mm
2.
φ 1 mm x 1 mm (5 mg)
<Remarks>
Apply with injector.
Driven Pulley Holder
Driven Pulley
2. Application Point
1. Application Point
<Lubrication Point>
1. Washer, 8.2X0.5X14
(x2)
2. Shaft of the PF Roller
<Type>
G-45
<Application Amount>
1.
φ 2 mm x 1 mm
2.
φ 1 mm x 10 mm
<Remarks>
 1. Apply with injector.
 2. Spread it with brush
while rotating the PF
Roller after application
with injector.
2. Application Point
1. Application Point
Washer, 8.2X0.5X14
PF Roller
10 mm
PF Roller
