Maintenance 4. Cable
118 G6 Rev.21

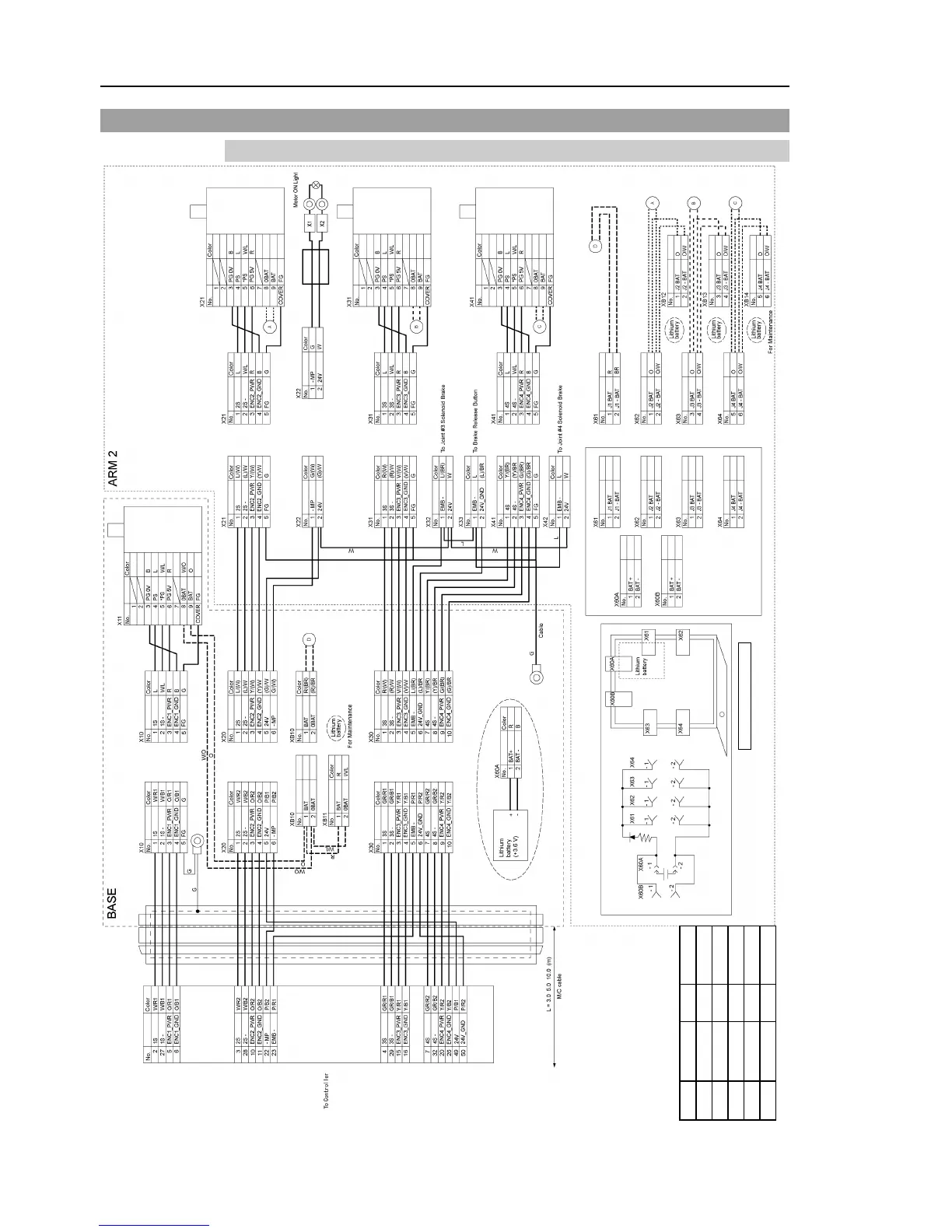

4.2 Wiring Diagrams
4.2.1 Signal Cable
Cable color
Pink
Red
Violet
White
Yellow
Code
P
R
V
W
Y
Cable color
Black
Brown
Green
Blue
Orange
Code
B
BR
G
L
O
Mounting plate
Detail Board Diagram
