Epson Stylus C67 Service Manual

EPSON Stylus C67/C68/D68 Revision A
MAINTENANCE Overview 92

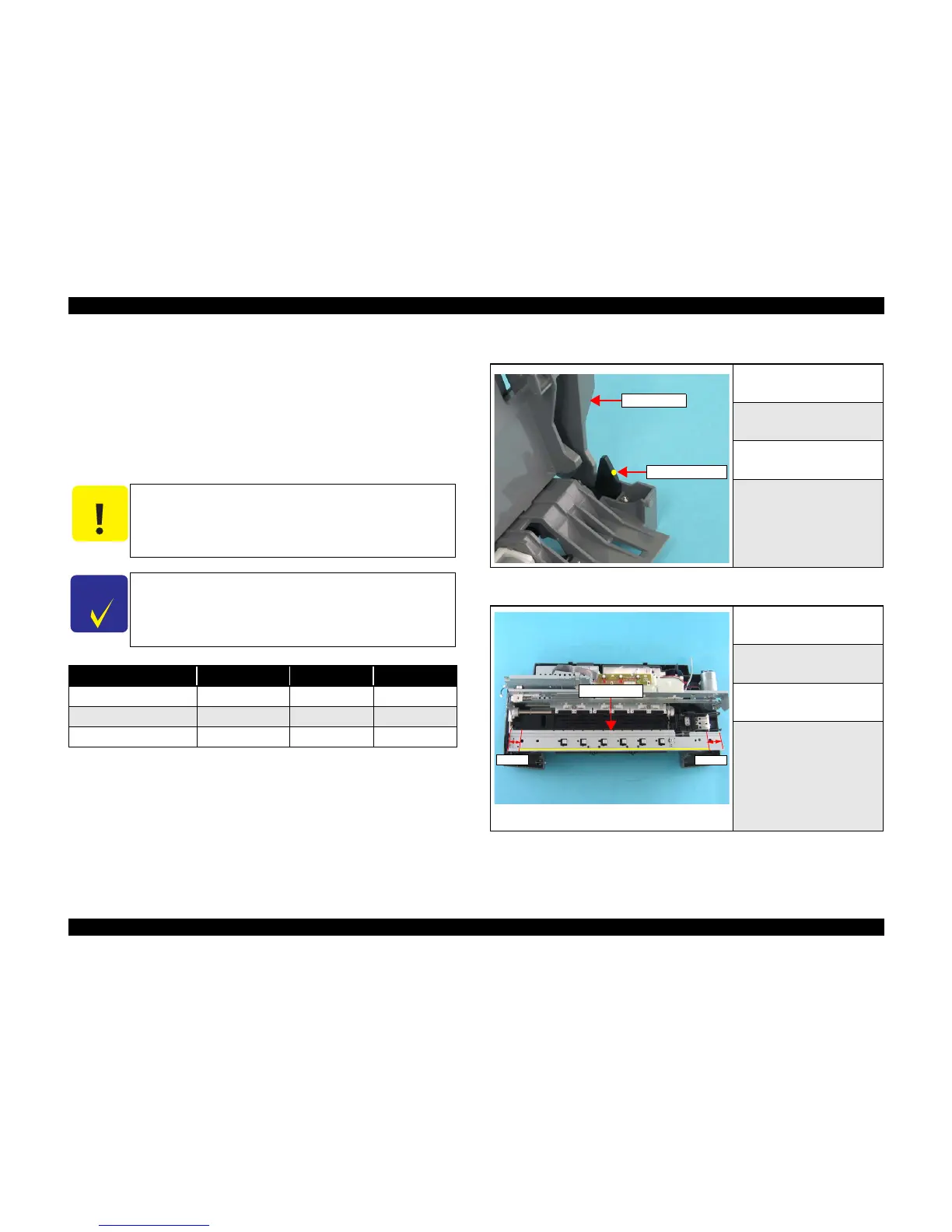

6.1.3 Lubrication
The characteristics of the grease have great affects on the mechanical function and
durability, especially does the characteristics about temperature environment. The type
and amount of the grease used to lubricate the printer parts are determined based on the
results of the internal evaluations. Therefore, be sure to apply the specified type and
amount of the grease to the specified part of the printer mechanism during servicing.
 Refer to the following figures for the lubrication points.
Figure 6-4. Lubrication on Paper Back Lever
Figure 6-5. Lubrication on Front Frame
C A U T I O N
 Never use oil or grease other than those specified in this
manual. Use of different types of oil or grease may damage the
component or give bad influence on the printer function.
 Never apply larger amount of grease than specified in this
manual.
C H E C K
P O I N T
 G-58/G-26 / G-71is already on the printer mechanism for
service part in the manufactory.
Type Name EPSON code Supplier
Grease G-26 1080614 EPSON
Grease G-58 1082176 EPSON
Grease G-71 1304682 EPSON
<Lubrication Point>
Paper Back Lever Surface
<Lubrication Type>
G-26
<Lubrication Amount>
φ1 x 1 mm
<Remarks>
• G-26 must not be adhered to
other parts.
<Lubrication Point>
Front Frame Surface
<Lubrication Type>
G-58
<Lubrication Amount>
φ1mm x 365mm
<Remarks>
• G-58 must not be adhered to
the printer mechanism and
other parts.
ASF Unit
Paper Back Lever
Front Frame
35mm
20mm
