TM-U295/U295P
Specification
(STANDARD)
App.10App.11

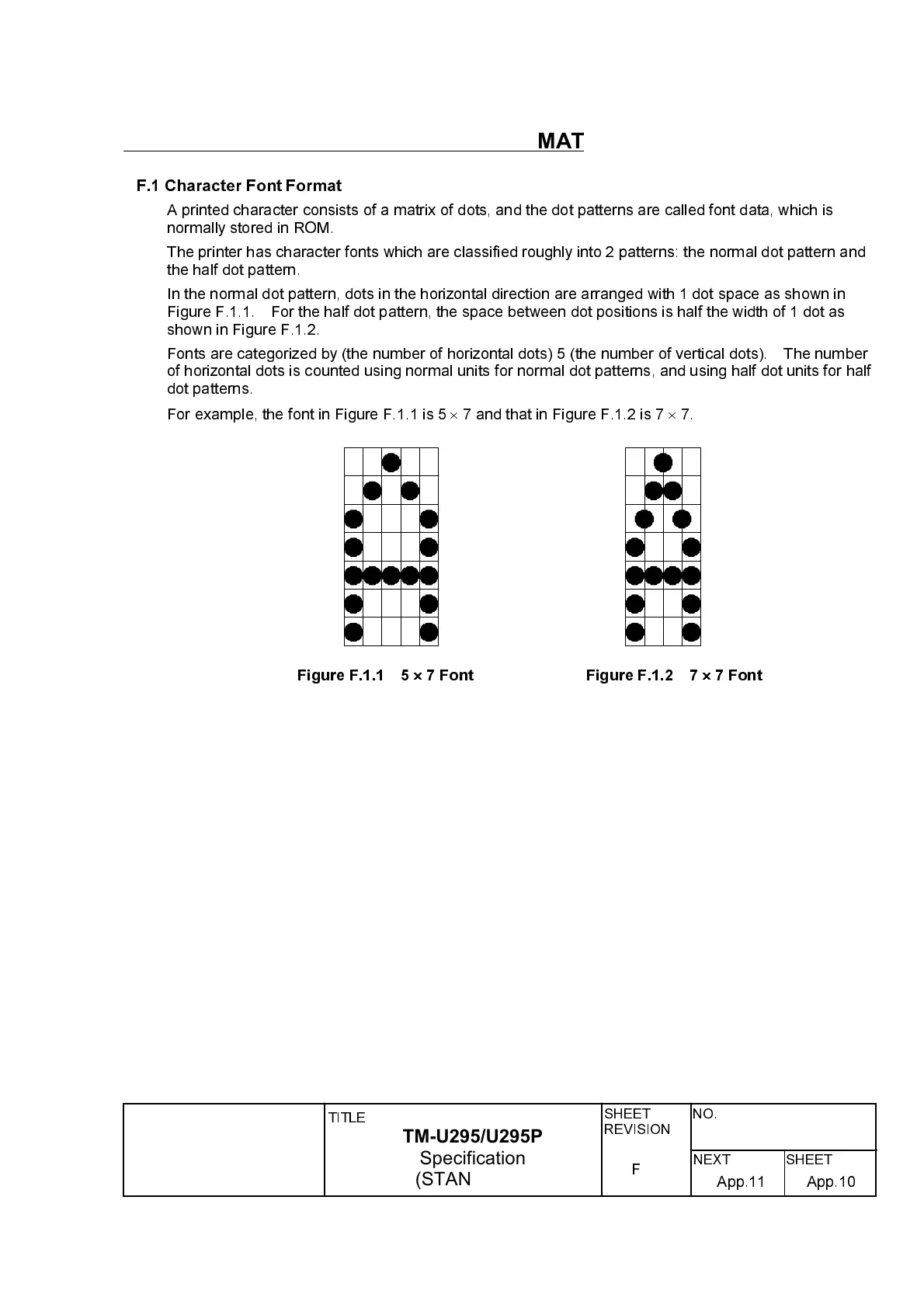

APPENDIX F: CHARACTER FONT FORMAT
F.1 Character Font Format
A printed character consists of a matrix of dots, and the dot patterns are called font data, which is
normally stored in ROM.
The printer has character fonts which are classified roughly into 2 patterns: the normal dot pattern and
the half dot pattern.
In the normal dot pattern, dots in the horizontal direction are arranged with 1 dot space as shown in
Figure F.1.1. For the half dot pattern, the space between dot positions is half the width of 1 dot as
shown in Figure F.1.2.
Fonts are categorized by (the number of horizontal dots) 5 (the number of vertical dots). The number
of horizontal dots is counted using normal units for normal dot patterns, and using half dot units for half
dot patterns.
For example, the font in Figure F.1.1 is 5 ´ 7 and that in Figure F.1.2 is 7 ´ 7.
Figure F.1.2 7 ´
´´
´ 7 FontFigure F.1.1 5 ´
´´
´ 7 Font

Epson TM-U295 Specifications

General

Color	No
Maximum number of copies	2 copies
Maximum printing width (columns)	42
Dimensions (WxDxH)	180 x 190.5 x 101.5 mm
Power requirements	24 VDC±10%
Connectivity technology	Wired
Printing media thickness	0.09/0.35 µm
Mean time between failures (MTBF)	180000 h
Safety	UL, CSA C22.2 No. 950
Country of origin	Japan
Electromagnetic compatibility	VCCI class A, FCC class A, CE marking
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	1370 mm
Quantity per pallet	120 pc(s)
Quantity per pallet (UK)	160 pc(s)
Master (outer) case width	300 mm
Quantity per pallet layer	24 pc(s)
Master (outer) case height	405 mm
Master (outer) case length	485 mm
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	32 pc(s)
Quantity per master (outer) case	4 pc(s)
Package depth	270 mm
Package width	235 mm
Package height	185 mm
Package weight	1845 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	191 mm
Width	180 mm
Height	102 mm
Weight	1600 g
