Epson TM-U295 User Manual

EPSON
TITLE
SHEET
REVISION
NO.
SHEETNEXT
F
TM-U295/U295P
Specification
(STANDARD)
16 15

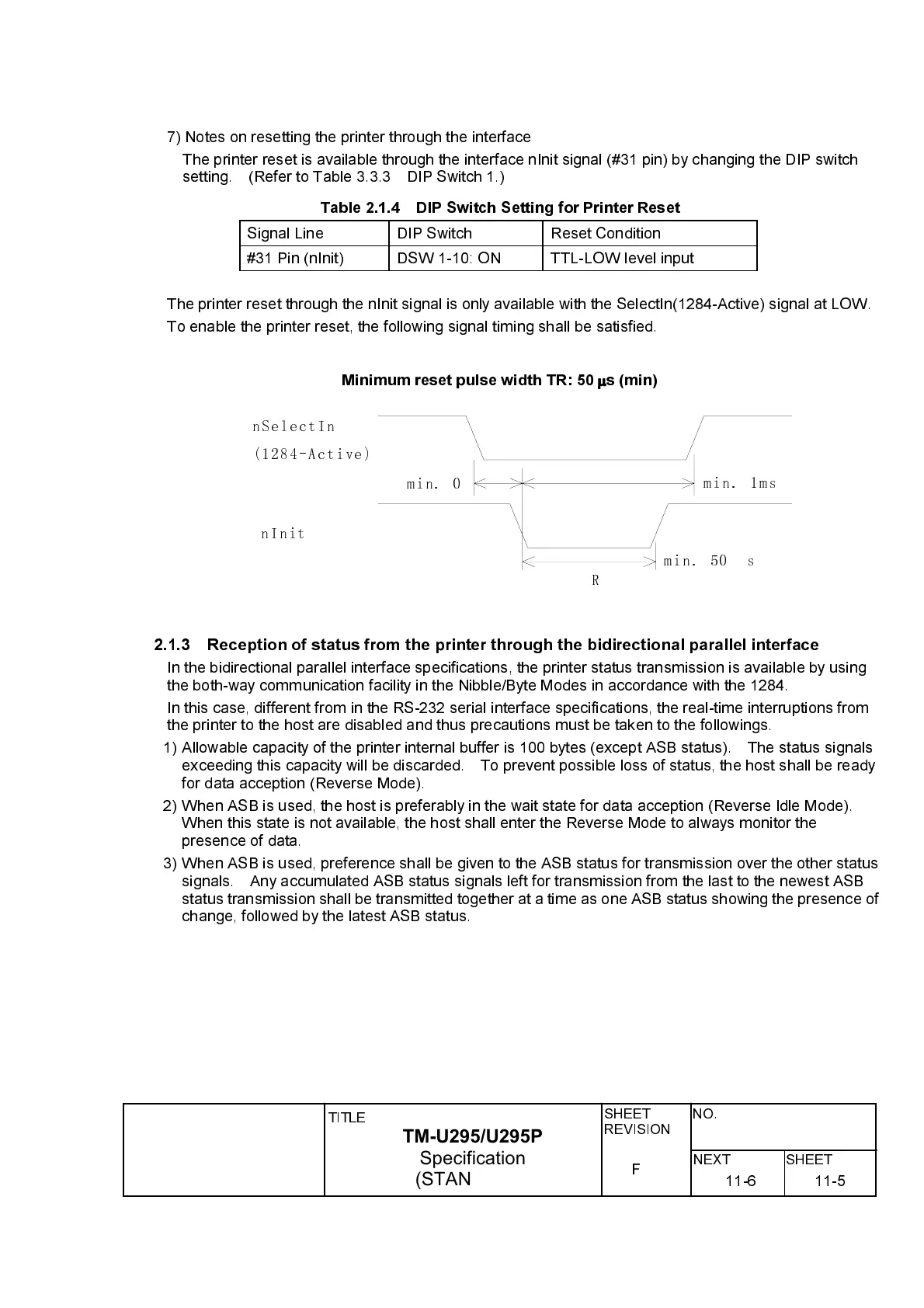

7) Notes on resetting the printer through the interface
The printer reset is available through the interface nInit signal (#31 pin) by changing the DIP switch
setting. (Refer to Table 3.3.3 DIP Switch 1.)
Table 2.1.4 DIP Switch Setting for Printer Reset
Signal Line DIP Switch Reset Condition
#31 Pin (nInit) DSW 1-10: ON TTL-LOW level input
The printer reset through the nInit signal is only available with the SelectIn(1284-Active) signal at LOW.
To enable the printer reset, the following signal timing shall be satisfied.
Minimum reset pulse width TR: 50 m
mm
m s (min)
R
nSelectIn
(1284-Active)
nInit
min. 0
min. 1ms
min. 50 s
2.1.3 Reception of status from the printer through the bidirectional parallel interface
In the bidirectional parallel interface specifications, the printer status transmission is available by using
the both-way communication facility in the Nibble/Byte Modes in accordance with the 1284.
In this case, different from in the RS-232 serial interface specifications, the real-time interruptions from
the printer to the host are disabled and thus precautions must be taken to the followings.
1) Allowable capacity of the printer internal buffer is 100 bytes (except ASB status). The status signals
exceeding this capacity will be discarded. To prevent possible loss of status, the host shall be ready
for data acception (Reverse Mode).
2) When ASB is used, the host is preferably in the wait state for data acception (Reverse Idle Mode).
When this state is not available, the host shall enter the Reverse Mode to always monitor the
presence of data.
3) When ASB is used, preference shall be given to the ASB status for transmission over the other status
signals. Any accumulated ASB status signals left for transmission from the last to the newest ASB
status transmission shall be transmitted together at a time as one ASB status showing the presence of
change, followed by the latest ASB status.
11-511-6

Epson TM-U295 Specifications

General

Color	No
Maximum number of copies	2 copies
Maximum printing width (columns)	42
Dimensions (WxDxH)	180 x 190.5 x 101.5 mm
Power requirements	24 VDC±10%
Connectivity technology	Wired
Printing media thickness	0.09/0.35 µm
Mean time between failures (MTBF)	180000 h
Safety	UL, CSA C22.2 No. 950
Country of origin	Japan
Electromagnetic compatibility	VCCI class A, FCC class A, CE marking
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	1370 mm
Quantity per pallet	120 pc(s)
Quantity per pallet (UK)	160 pc(s)
Master (outer) case width	300 mm
Quantity per pallet layer	24 pc(s)
Master (outer) case height	405 mm
Master (outer) case length	485 mm
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	32 pc(s)
Quantity per master (outer) case	4 pc(s)
Package depth	270 mm
Package width	235 mm
Package height	185 mm
Package weight	1845 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	191 mm
Width	180 mm
Height	102 mm
Weight	1600 g
