TM-U295/U295P
Specification
(STANDARD)
App.13App.14

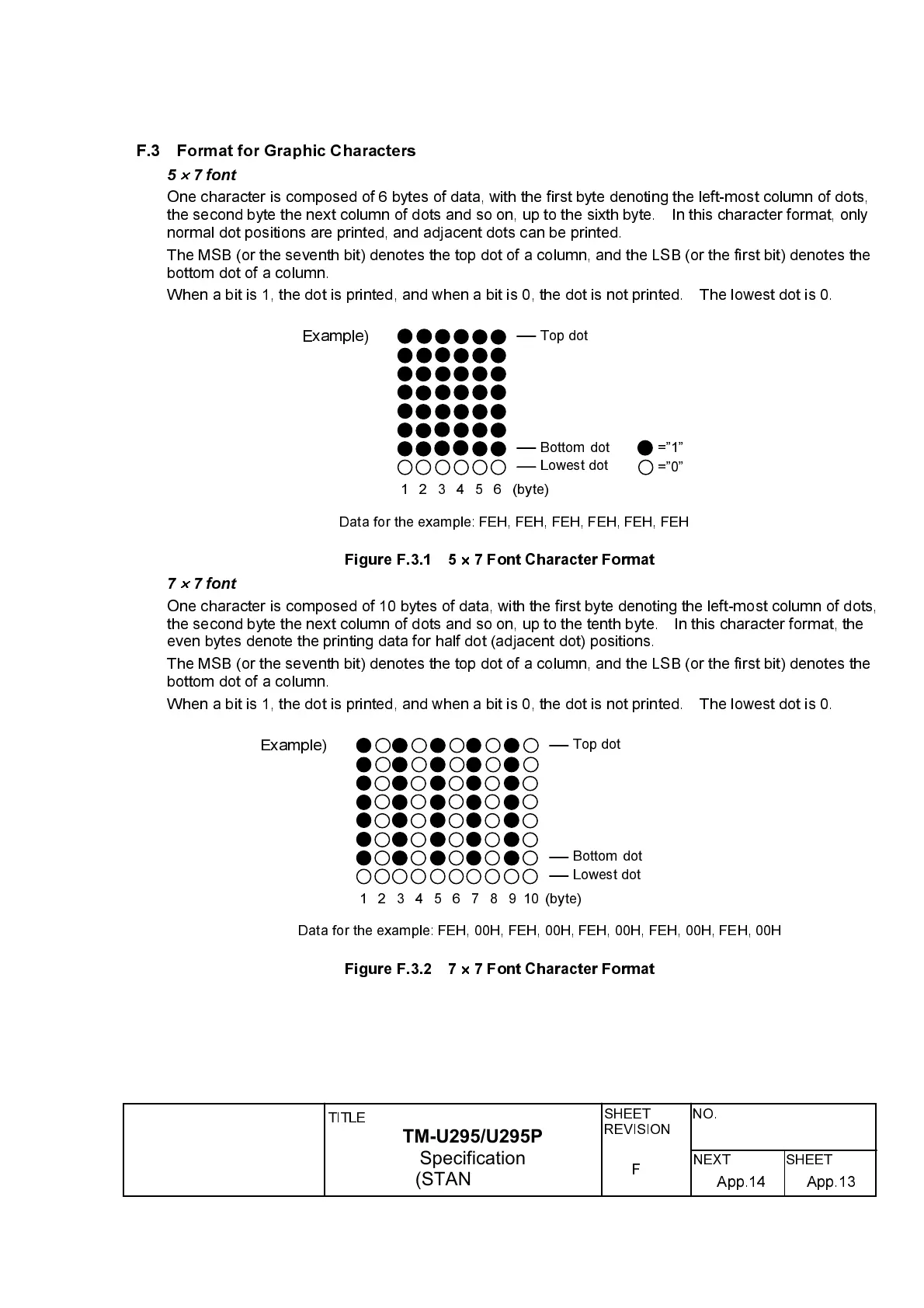

F.3 Format for Graphic Characters
5 ´
´´
´ 7 font
One character is composed of 6 bytes of data, with the first byte denoting the left-most column of dots,
the second byte the next column of dots and so on, up to the sixth byte. In this character format, only
normal dot positions are printed, and adjacent dots can be printed.
The MSB (or the seventh bit) denotes the top dot of a column, and the LSB (or the first bit) denotes the
bottom dot of a column.
When a bit is 1, the dot is printed, and when a bit is 0, the dot is not printed. The lowest dot is 0.
Example)
Top dot
(byte)654321
Bottom dot
Data for the example: FEH, FEH, FEH, FEH, FEH, FEH
Lowest dot
=1
=0
Figure F.3.1 5 ´
´´
´ 7 Font Character Format
7 ´
´´
´ 7 font
One character is composed of 10 bytes of data, with the first byte denoting the left-most column of dots,
the second byte the next column of dots and so on, up to the tenth byte. In this character format, the
even bytes denote the printing data for half dot (adjacent dot) positions.
The MSB (or the seventh bit) denotes the top dot of a column, and the LSB (or the first bit) denotes the
bottom dot of a column.
When a bit is 1, the dot is printed, and when a bit is 0, the dot is not printed. The lowest dot is 0.
Example)
(byte)654321
Data for the example: FEH, 00H, FEH, 00H, FEH, 00H, FEH, 00H, FEH, 00H
Top dot
Bottom dot
Lowest dot
10987
Figure F.3.2 7 ´
´´
´ 7 Font Character Format

Epson TM-U295 Specifications

General

Color	No
Maximum number of copies	2 copies
Maximum printing width (columns)	42
Dimensions (WxDxH)	180 x 190.5 x 101.5 mm
Power requirements	24 VDC±10%
Connectivity technology	Wired
Printing media thickness	0.09/0.35 µm
Mean time between failures (MTBF)	180000 h
Safety	UL, CSA C22.2 No. 950
Country of origin	Japan
Electromagnetic compatibility	VCCI class A, FCC class A, CE marking
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	1370 mm
Quantity per pallet	120 pc(s)
Quantity per pallet (UK)	160 pc(s)
Master (outer) case width	300 mm
Quantity per pallet layer	24 pc(s)
Master (outer) case height	405 mm
Master (outer) case length	485 mm
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	32 pc(s)
Quantity per master (outer) case	4 pc(s)
Package depth	270 mm
Package width	235 mm
Package height	185 mm
Package weight	1845 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	191 mm
Width	180 mm
Height	102 mm
Weight	1600 g
