QX50/QX200/QX2000 Manual I: Installation Guide
Step 2.3: Internet (WAN) – Internet Configuration Wizard
Select the Basic Setup – Internet (WAN) from the Setup menu for QX50/QX200 and Basic
Setup – Uplink Configuration Wizard from the Setup menu in case of QX2000 product. The
Internet (WAN)/Uplink Configuration Wizard is a tool for the administrator to configure
the WAN settings and to adjust QX IP PBX's connectivity in the global network. It must be run if
QX IP PBX is desired to be connected to the Internet.
The page Getting Started will be displayed:

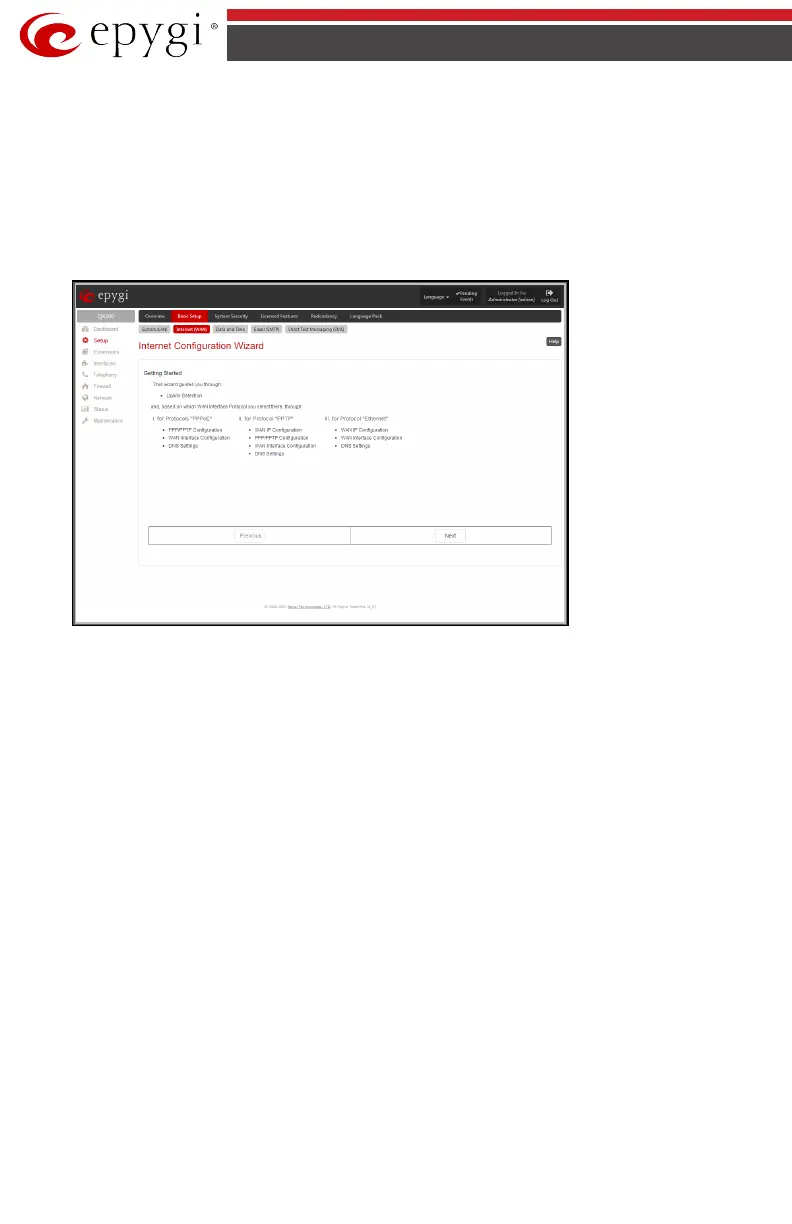

Fig.I- 18: Internet Configuration Wizard
This first page of the Internet Configuration Wizard is for informational purposes only and
lists the items to be configured, Click on the Next button for the Uplink Configuration page.
Before configuring the WAN port to the Internet, you need to get the following information
from your internet service provider:
• Bandwidth - the available upstream and downstream.
• WAN IP Configuration - is DHCP supported? If yes, no more information is needed. If
DHCP is not supported, the following data is needed: the WAN IP address, the subnet
mask, the IP address of the default gateway and the IP address of the Domain Name
Server (DNS).
• MAC address - needed when the ISP requires a specific MAC address for the WAN.
Additionally, for Point-to-Point Protocol over Ethernet (PPPoE) WAN interface, you need to get
the following information from your internet service provider:
• PPP Configuration - does your ISP use a dynamic or fixed WAN IP address? If the WAN
IP address is dynamic, no more information is needed. If the WAN IP address is fixed,
you will have to enter it.
• Authentication - does your ISP require authentication? If authentication is required, in-
formation about the corresponding method (PAP, CHAP or MSCHAP) is needed including
the username and password of the PPPoE account.
This information will be needed to be inserted in the Internet Configuration Wizard.
To Next Page
