opens (LEAF2) has to be connected to MOT2.
L
DO NOT connect the motor of a single leaf automation
to MOT2.
- Functions available in Advanced programming:
Od (opening
delay - option for 2-leaf automation).

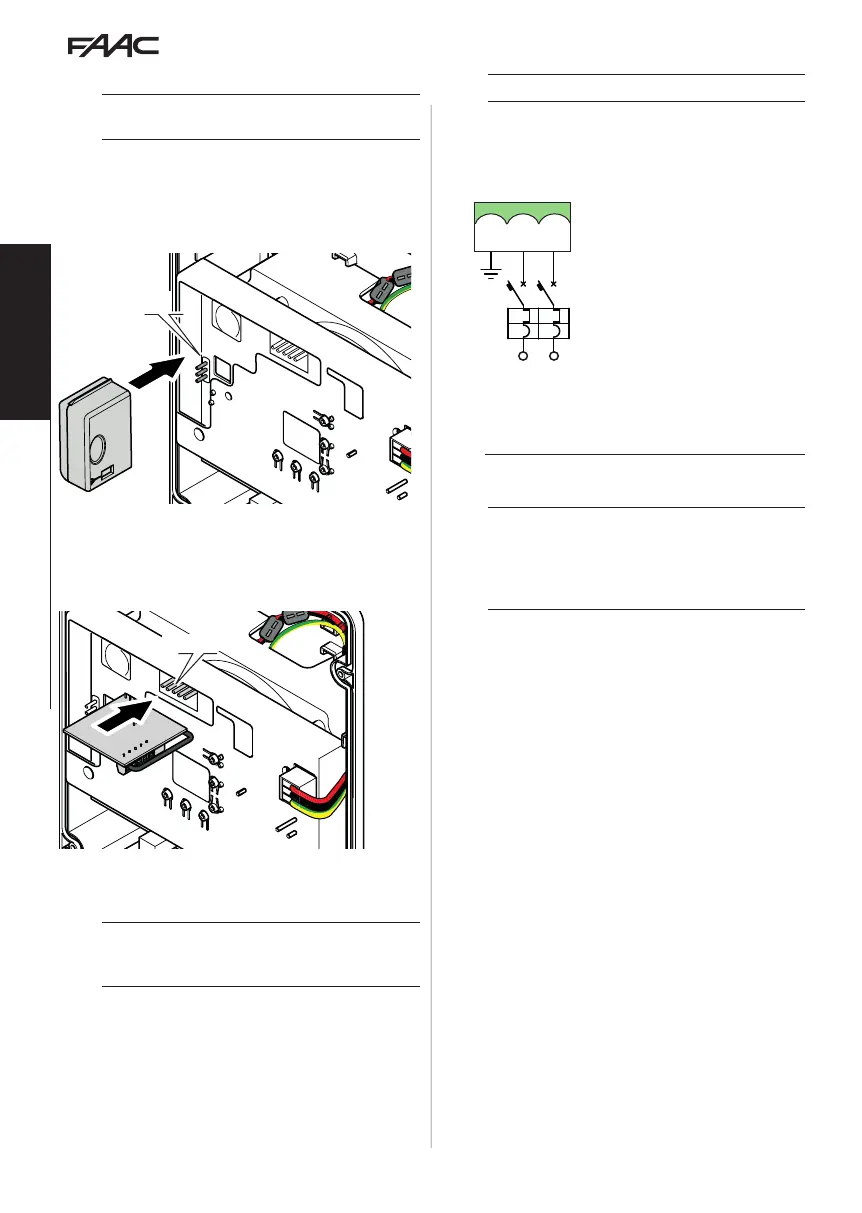

XF MODULE
XF MODULE (3 pin)
Insert the XF Module into the 3-pin quick insertion
connector. Insert it as shown in the figure.
RADIO RECEIVER/DECODER BOARD
RADIO (5 pin)
Insert the radio receiver board or the decoder board
into the 5-pin quick insertion connector. Insert it as
shown in the figure.
L
If a FAAC RP receiver is used, it is recommended to install
the appropriate external antenna in order to obtain a
sufficient range (see the device instructions).
EMERGENCY BATTERIES BATTERY
Connect the back-up batteries (dedicated section in
the § Accessories chapter) or a stabilized power supply
top the BATTERY connector.
L
Connect before switching on mains power.
MAINS POWER SUPPLY CON
N
L
PE N L
CON
Connect the mains power supply to the CON terminal
board on the switching power supply.
Use at least 3G 1.5 mm wires.
!
It is mandatory to connect to the system earthing
conductor.
L
The switching power supply is factory set to a mains
voltage of 230 V~ and is connected to the POWER con-
nector on the board. If the mains voltage is 115 V~,
the position of the selector (Switching power supply)
has to be changed.

FAAC E124 Specifications

General

Model	E124
Category	Control Unit
Maximum Motor Current	5 A
Operating Temperature	-20°C to +55°C
Operating Voltage	230V AC
Protection Degree	IP55
Power Supply	230V AC (+6% -10%) 50 (60) Hz
