Setting indicating how the user can use the clock:
ON/OFF: User enters on/off times.
ON/DURATION: User enters time and duration of activation.
Setting of the registration input used to measure the amount of water. The volume of
water can be measured by a flow meter.
Setting of the relay address controlled by the clock.
Setting of the passive (not controlled) relay status.
N.O. (normally open) if it makes no contact.
N.C. (normally closed) if it makes contact.
The control computer can register digital inputs. These registration inputs can be used to register amounts (for
example water).
The amount is registered in the form of pulse values (counts) or contact. The control computer adds up the
number of counts or measures the active time and converts the time into a measured amount.
Setting of the name of the function.
Setting of the address of the digital input.

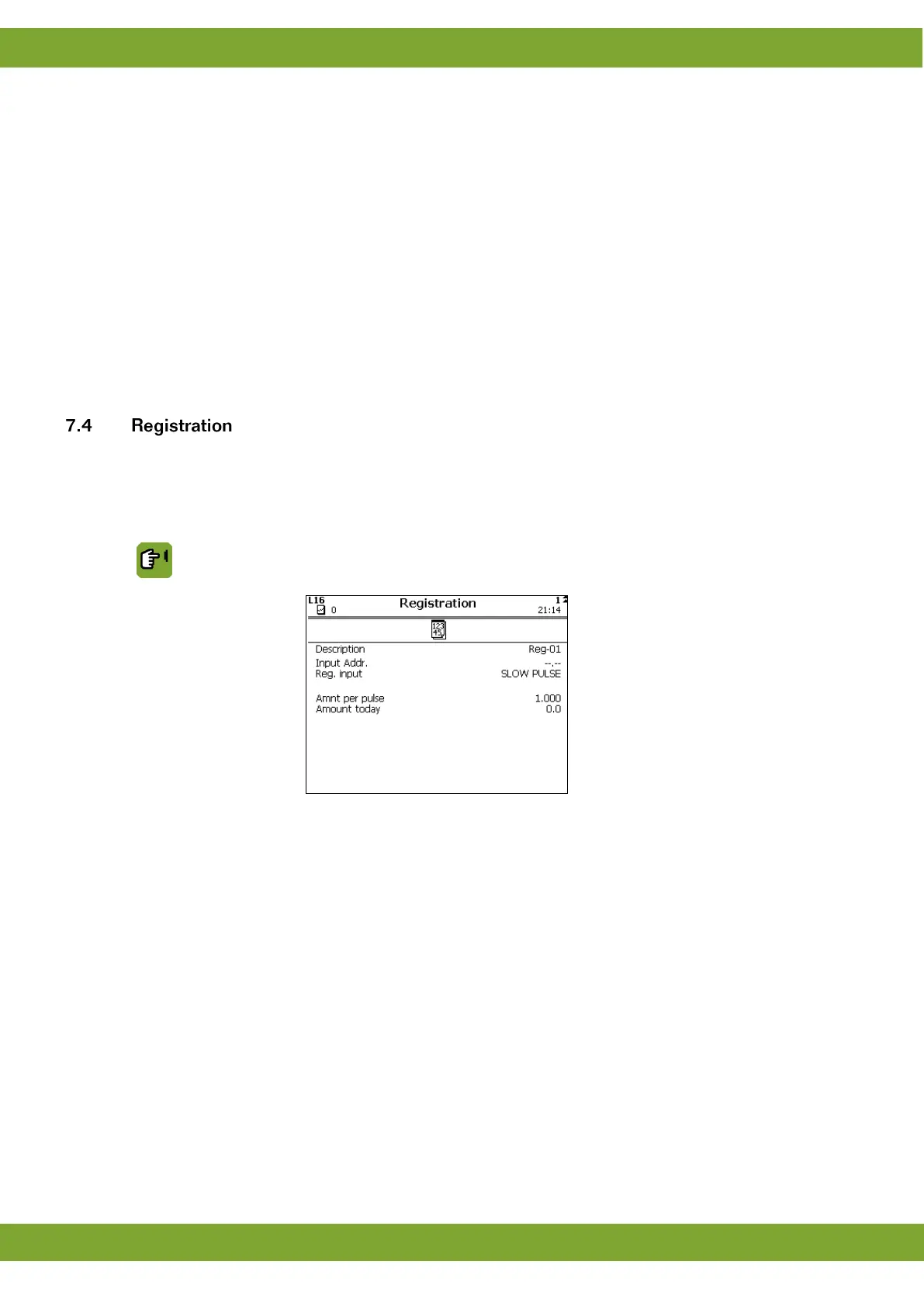

Setting the type of measurement:
MANUALLY: Enables you to enter the amount of today manually.
SLOW PULSE: Measuring instruments with a maximum frequency of 20 pulses per
second (20 Hz).
QUICK PULSE: Measuring instruments with a maximum frequency of 20 pulses per
second (20 Hz) (only use when there is a link with a switch clock).
CONTACT: As long as the sensor makes contact, the value will be added up
cumulatively. The amount is therefore determined by time the contact is HIGH.
Setting of the unit that corresponds to one pulse. (only with measurement type: SLOW
PULSE or QUICK PULSE)
