WARNINGS
Do not place objects in front of the
camera.

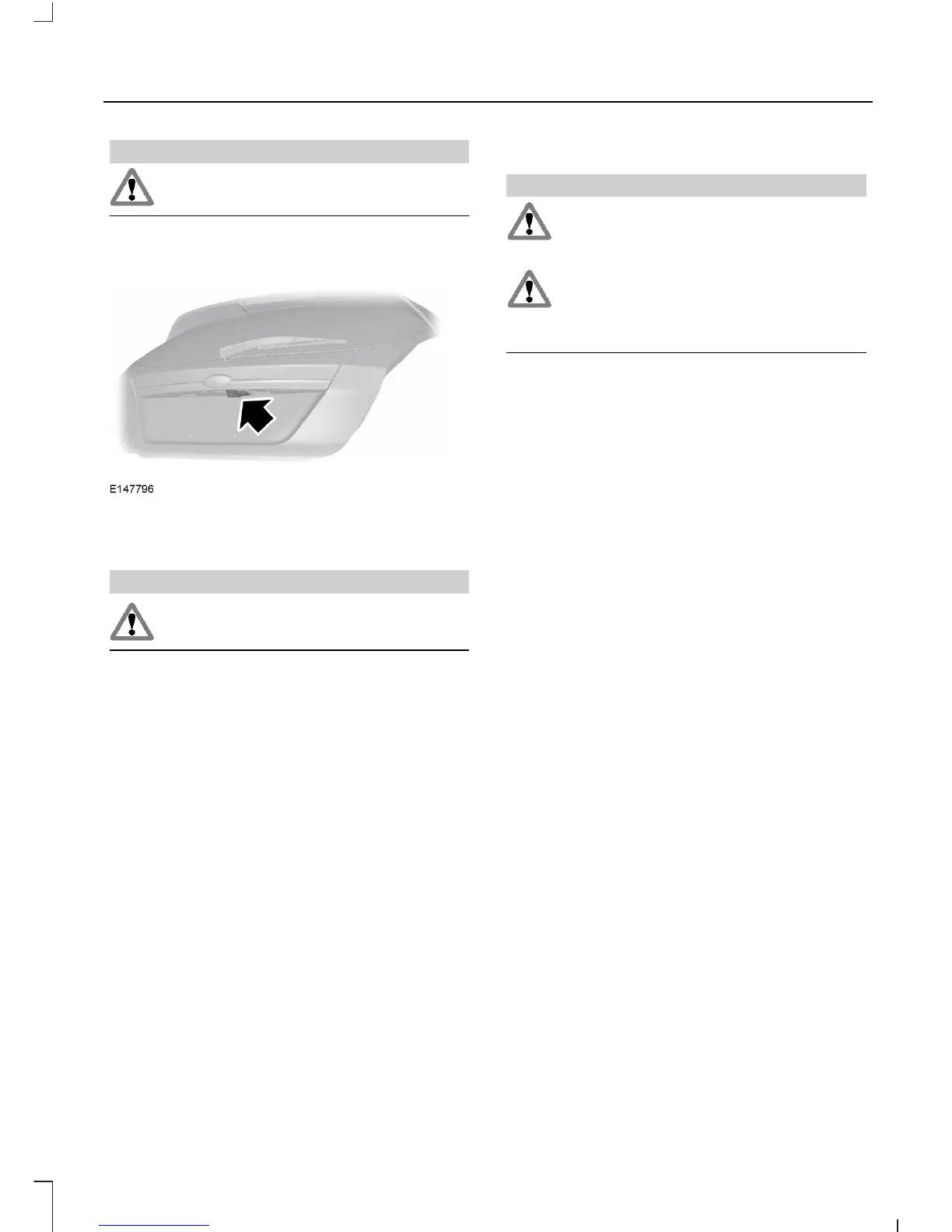

The camera is located on the liftgate near
the handle.
Switching the Rear View Camera
On
WARNING
The camera may not detect objects
that are close to your vehicle.
Switch the ignition and the audio unit on.
Press the parking aid switch in the
instrument panel or move the transmission
selector lever to position R (reverse).
The image is displayed on the screen.
The lamp in the switch illuminates when
the system is switched on.
The camera may not operate correctly in
the following conditions:
• Dark areas.
• Intense light.
• If the ambient temperature increases
or decreases rapidly.
• If the camera is wet, for example in rain
or high humidity.
• If the camera's view is obstructed, for
example by mud.
Using the Display
WARNINGS
Obstacles above the camera position
will not be shown. Inspect the area
behind your vehicle if necessary.
Marks are for general guidance only,
and are calculated for vehicles in
maximum load conditions on an
even road surface.
The lines show the distance from the outer
edge of the front tire plus two inches (51
millimeters) and the rear bumper.
115
B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013
