FUSE BOX LOCATIONS

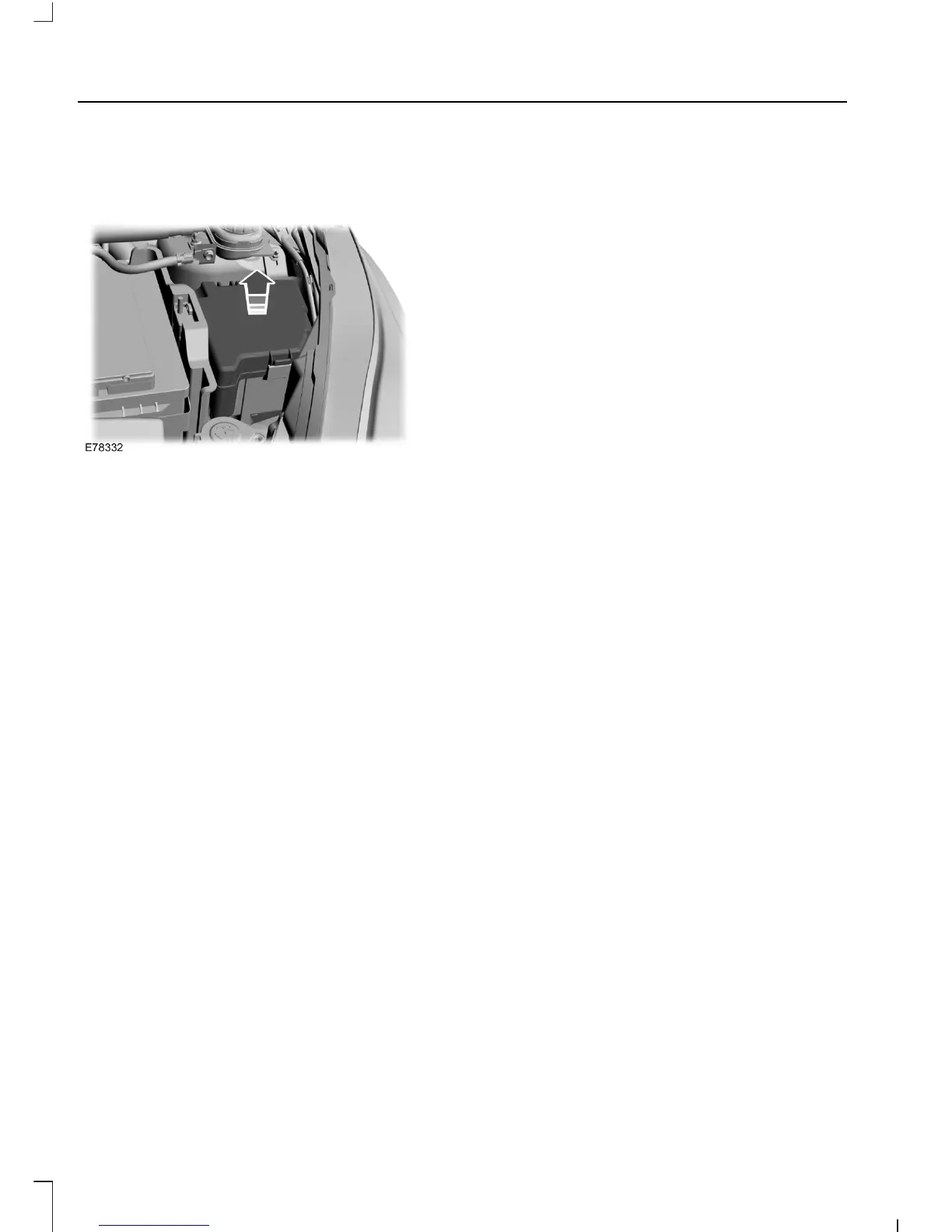

Engine Compartment Fuse Box

Passenger Compartment Fuse Box

This fuse box is located behind the glove

box. Open the glove box and empty the

contents. Press the sides inwards and

swivel the glove box downward.

134

B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013
