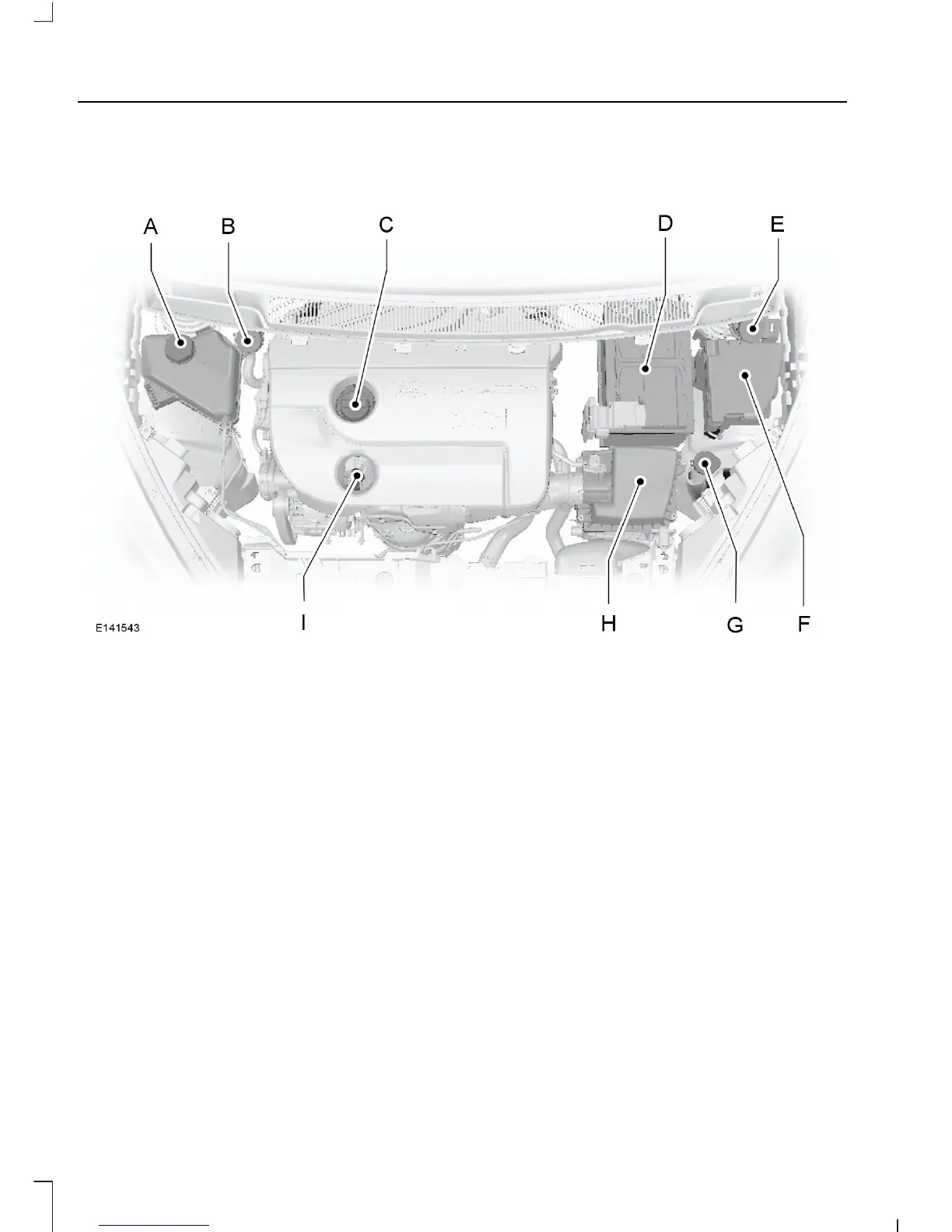

UNDER HOOD OVERVIEW - 1.5L DURATORQ-TDCI/1.6L
DURATORQ-TDCI (DV) DIESEL
Engine coolant reservoir
*
: See Engine Coolant Check (page 158).A
Brake and clutch fluid reservoir (right-hand drive)
*
: See Brake and Clutch
Fluid Check (page 159).
B
Engine oil filler cap
*
: See Engine Oil Check (page 157).C
Battery: See Changing the 12V Battery (page 159).D
Brake and clutch fluid reservoir (left-hand drive)
*
: See Brake and Clutch Fluid
Check (page 159).
E
Engine compartment fuse box. See Fuses (page 134).F
Windshield and rear window washer fluid reservoir: See Washer Fluid Check
(page 159).
G
Air cleaner: No maintenance necessary.H
Engine oil dipstick
*
: See Engine Oil Check (page 157).I
*
The filler caps and the engine oil dipstick are colored for easy identification.
156
B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013
Maintenance
