Furuno FAR-1513-BB Installation Manual

2. WIRING
2-17

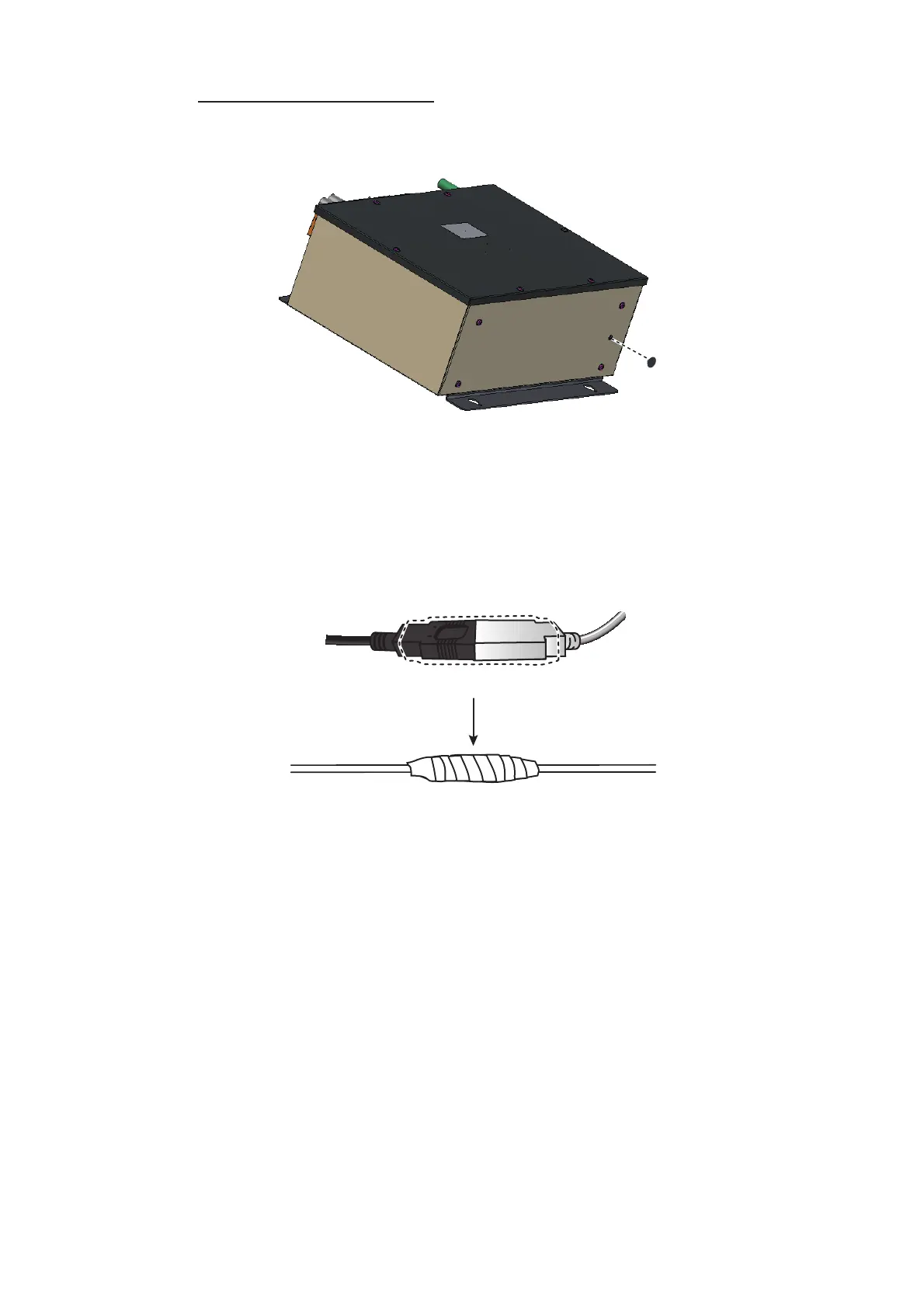

How to attach the blind seal
Attach the blind seal over the hole on the rear side of the unit.
2.5 Trackball Control Unit
Connect the cable from the control unit to the cable on the trackball control unit. Cover
the junction with heat shrink tubing, then heat. Cover the heat shrink tubing with vinyl
tape.
Blind
seal
Connect cables, cover junction with heat shrink tubing, then heat.
Cover with vinyl tape.
