1. MOUNTING, WIRING
2
1.2 Flush Mount, Fixed at Front
Flush mount, fix at front is the standard installation method.
1. Use the flush mounting template (supplied) to make a cutout in the mounting location.

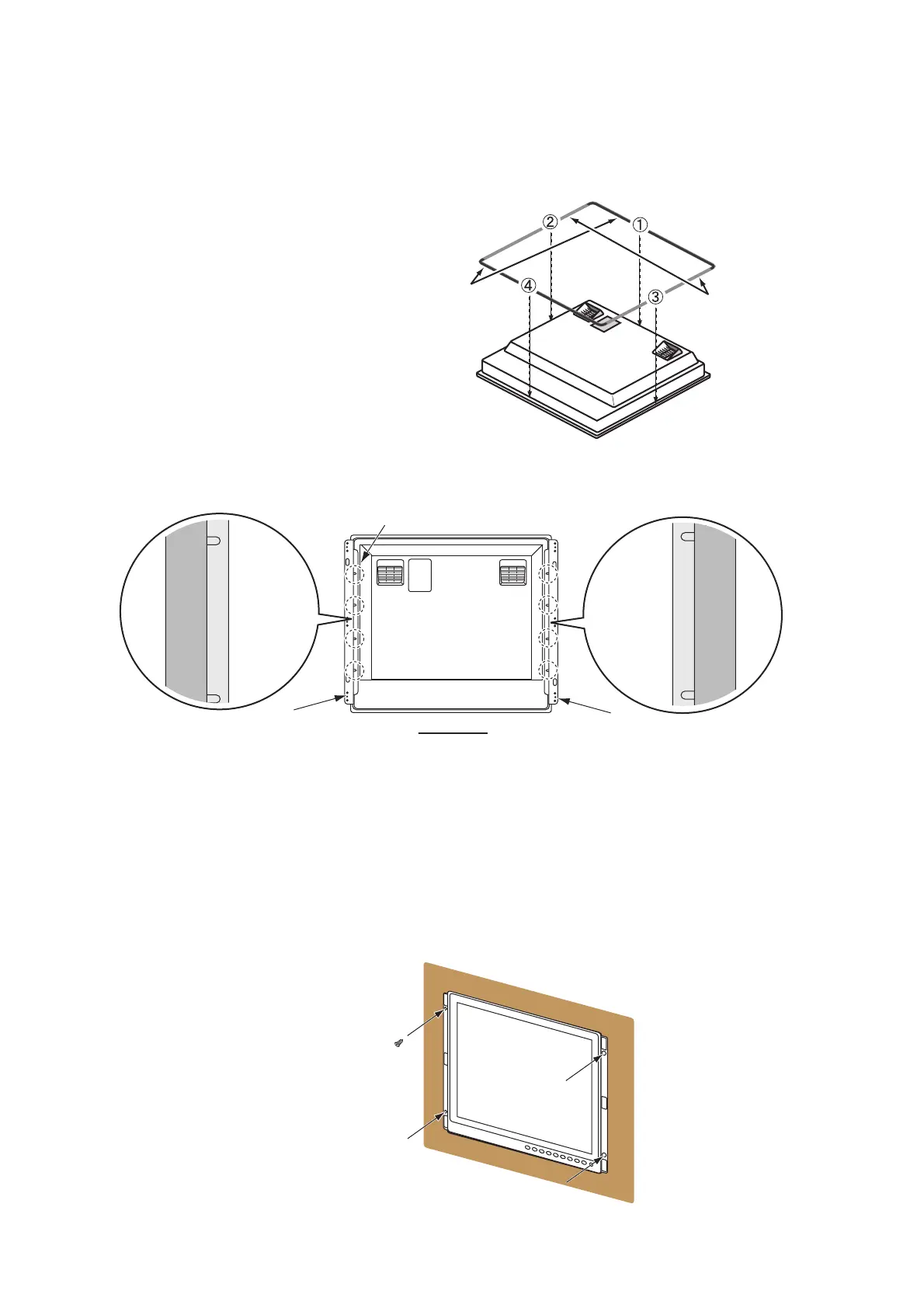

2. Attach the flush mounting sponges
to the back of the monitor unit in
the order shown in the figure at
right.
3. Attach the flush mounting panels to the monitor unit from the rear with the binding head
screws (M4x10, 8 pcs., supplied).
Note 1: The shape of the flush mounting panel is different between right and left. The left pan-
el is marked "A"; the right panel is marked "B".
Note 2: To tighten screws, first tighten the top and bottom screws then tighten the middle two
screws.
Note 3: Attach the flush mounting panels to both sides of the monitor unit with no gap.
4. Connect all cables at the back of the monitor unit. See section 1.8.
5. Set the monitor unit assembly to the cutout.
6. Fix the monitor unit to the cutout with the self-tapping screws (6x30, 4 pcs., supplied).
Flush Mounting
Sponge H (2 mm)
for left and right
Flush Mounting
Sponge (5 mm) for
top and bottom
Binding Head Screw (8 places)
Flush Mounting Panel A
Flush Mounting Panel B
Self-Tapping Screw
(4 places)
To Next Page
