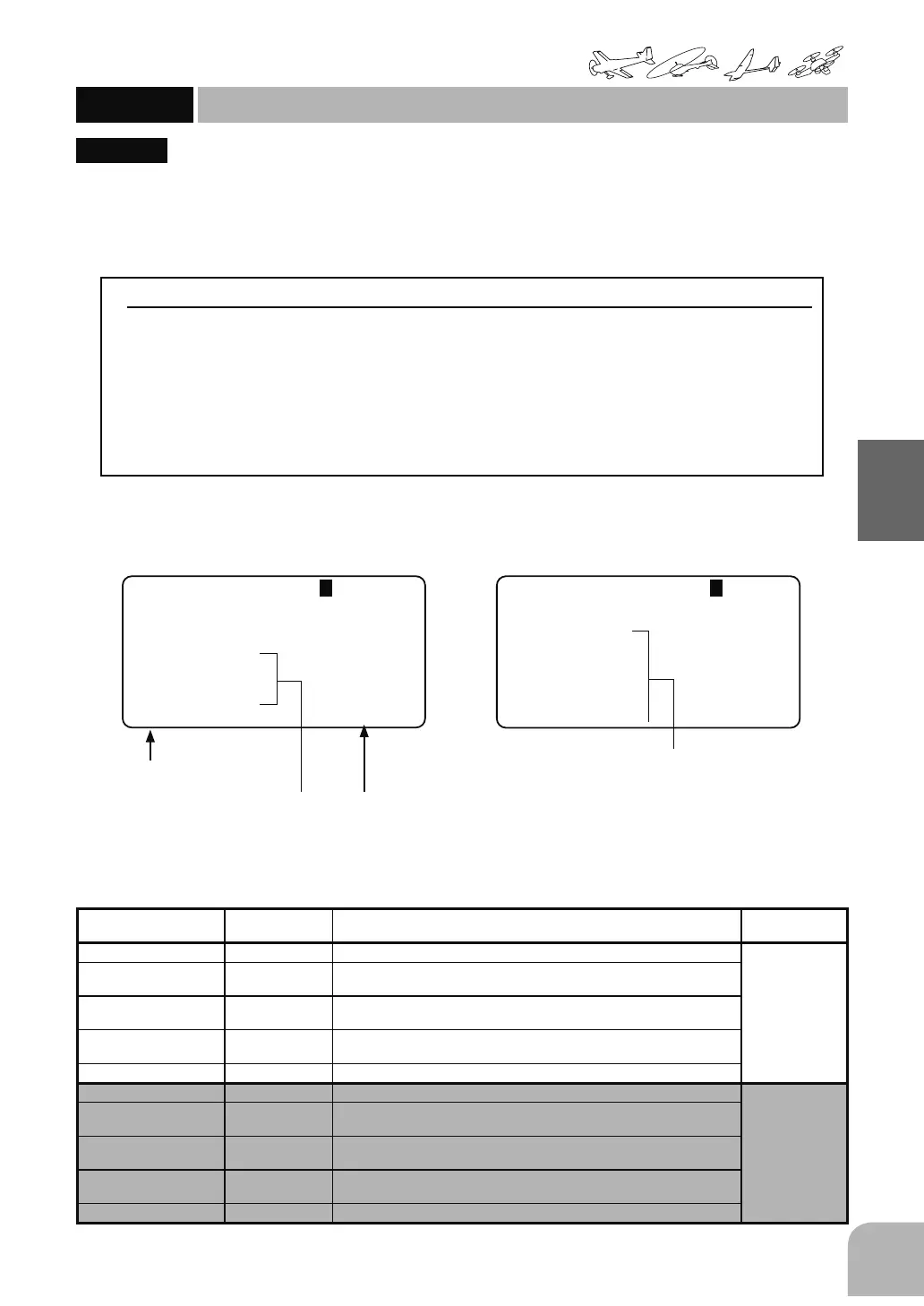

FUTABA 10J User Manual

83
Commonfunction
Function
SENSOR
SensorSlot
(Common)
This screen registers the telemetry sensors used
with the transmitter. When only one of a certain
type of sensor is used, this setting is unnecessary
and the sensor can be used by simply connecting it
to the S.BUS2 port of the transmitter.
When using 2 or more of the same kind of
sensor, they must be registered here.
[What is a slot?]
6HUYRVDUHFODVVL¿HGE\&+EXWsensorsDUHFODVVL¿HGLQXQLWVFDOOHG"slot". There are slots
from No. 1 to No. 31.
$OWLWXGHVHQVRUV*36VHQVRUV and other data sensor units may use PXOWLSOHVORWV.
Using a sensor which uses two or more slots, the required number of slots is automatically
assigned by setting up a start slot.
When 2 or more of the same kind of sensor are used, the sensors themselves must allocate
unused slots and memorize that slot.
Sensor
Therequired
numberofslots
Thenumberwhichcanbeusedasastartslot Sellingarea
TEMP(SBS-01T) 1slot 1 〜 31
Global
RPM(SBS01RM,SBS-
01RO)
1slot 1 〜 31
Voltage(SBS-01V) 2slot
1,2,3,4,5,6,8,9,10,11,12,13,14,16,17,18,19,20
,21,22,24,25,26,27,28,29,30
Altitude(SBS-01A) 3slot
1,2,3,4,5,8,9,10,11,12,13,16,17,18,19,20,21,24
,25,26,27,28,29
GPS(SBS-01G) 8slot 8,16,24
TEMP125-F1713 1slot 1 〜 31
Europe
VARIO-F1712 2slot
1,2,3,4,5,6,8,9,10,11,12,13,14,16,17,18,19,20
,21,22,24,25,26,27,28,29,30
VARIO-F1672 2slot
1,2,3,4,5,6,8,9,10,11,12,13,14,16,17,18,19,20
,21,22,24,25,26,27,28,29,30
CURR-F1678 3slot
1,2,3,4,5,8,9,10,11,12,13,16,17,18,19,20,21,24
,25,26,27,28,29
GPS-F1675 8slot 8,16,24
＜
Assignable slot
＞
*Altimeter, GPS, and other sensors that display a large amount of data require multiple slots.
*Depending on the type of sensor, the slot numbers that can be allocated may be limited.
● The"SENSOR"ofamenuischosen,andJogkey
press.
● Slotnumber
● 3slotsSBS-01Ais
used.
● 8slotsSBS-01Gisused.
● SensorID：Whenmultiplesensorsofthesametypeare
notused,IDisunnecessary.
● Jogkeypressessideandmakesit2pages.
6(16256/27

㌣6%67
㌣6%6$
6%6$
6%6$
㌣6%69
㌣6%6502
6(16256/27

6%69
6%6*
6%6*
6%6*
6%6*
㌣6%6*
