GE Multilin C60 Breaker Protection System 4-17
4 HUMAN INTERFACES 4.3 FACEPLATE INTERFACE
4

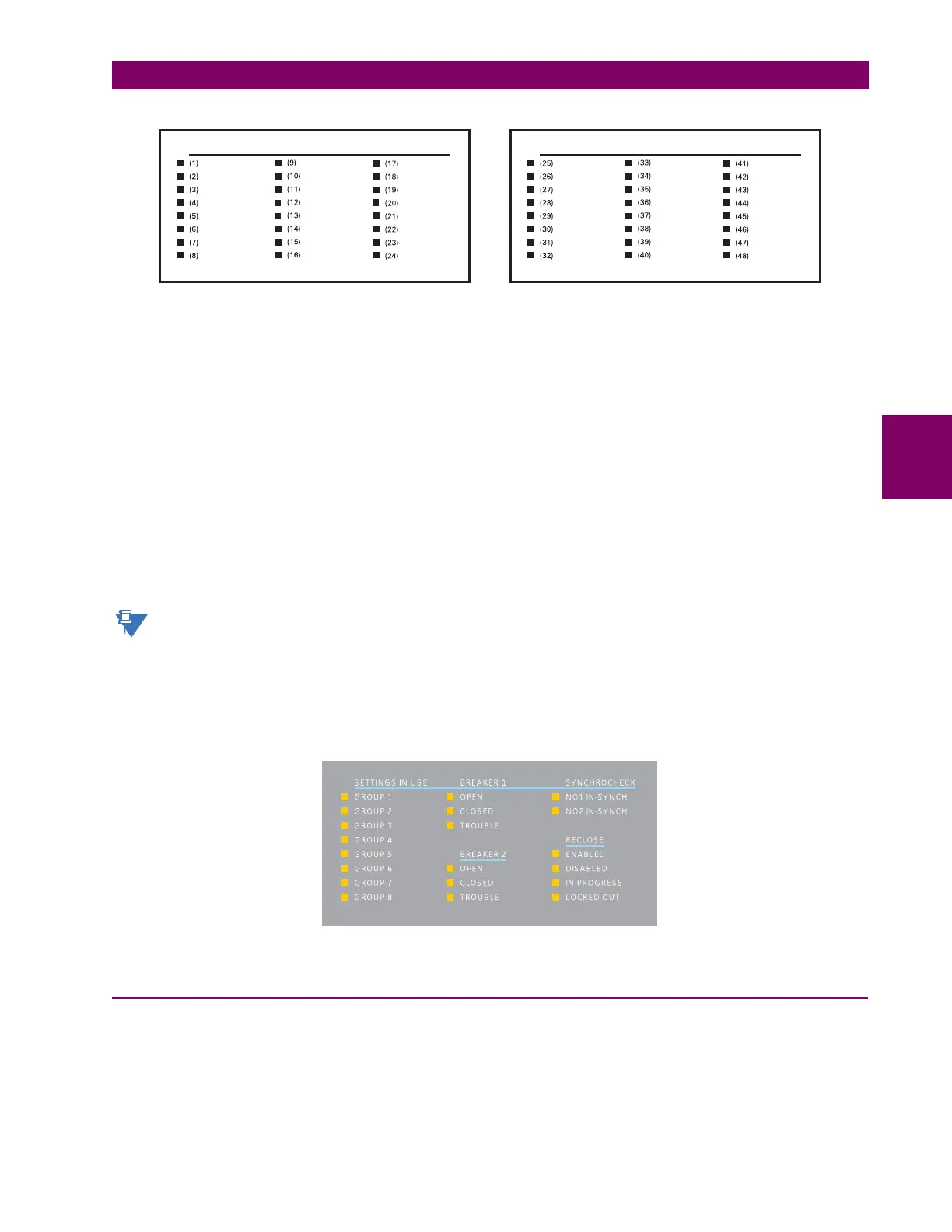

Figure 4–20: LED PANELS 2 AND 3 (INDEX TEMPLATE)
DEFAULT LABELS FOR LED PANEL 2:
The default labels are intended to represent:
• GROUP 1...6: The illuminated GROUP is the active settings group.
• BREAKER 1(2) OPEN: The breaker is open.
• BREAKER 1(2) CLOSED: The breaker is closed.
• BREAKER 1(2) TROUBLE: A problem related to the breaker has been detected.
• SYNCHROCHECK NO1(4) IN-SYNCH: Voltages have satisfied the synchrocheck element.
• RECLOSE ENABLED: The recloser is operational.
• RECLOSE DISABLED: The recloser is not operational.
• RECLOSE IN PROGRESS: A reclose operation is in progress.
• RECLOSE LOCKED OUT: The recloser is not operational and requires a reset.
Firmware revisions 2.9x and earlier support eight user setting groups; revisions 3.0x and higher support six setting
groups. For convenience of users using earlier firmware revisions, the relay panel shows eight setting groups.
Please note that the LEDs, despite their default labels, are fully user-programmable.
The relay is shipped with the default label for the LED panel 2. The LEDs, however, are not pre-programmed. To match the
pre-printed label, the LED settings must be entered as shown in the User-programmable LEDs section of chapter 5. The
LEDs are fully user-programmable. The default labels can be replaced by user-printed labels for both panels as explained
in the following section.
Figure 4–21: LED PANEL 2 (DEFAULT LABELS)
4.3.3 CUSTOM LABELING OF LEDS
a) ENHANCED FACEPLATE
The following procedure requires these pre-requisites:
• EnerVista UR Setup software is installed and operational
• The C60 settings have been saved to a settings file
USER-PROGRAMMABLE LEDS USER-PROGRAMMABLE LEDS
842782A1.CDR
To Next Page
