2.1 INTRODUCTION 2 PRODUCT DESCRIPTION
2

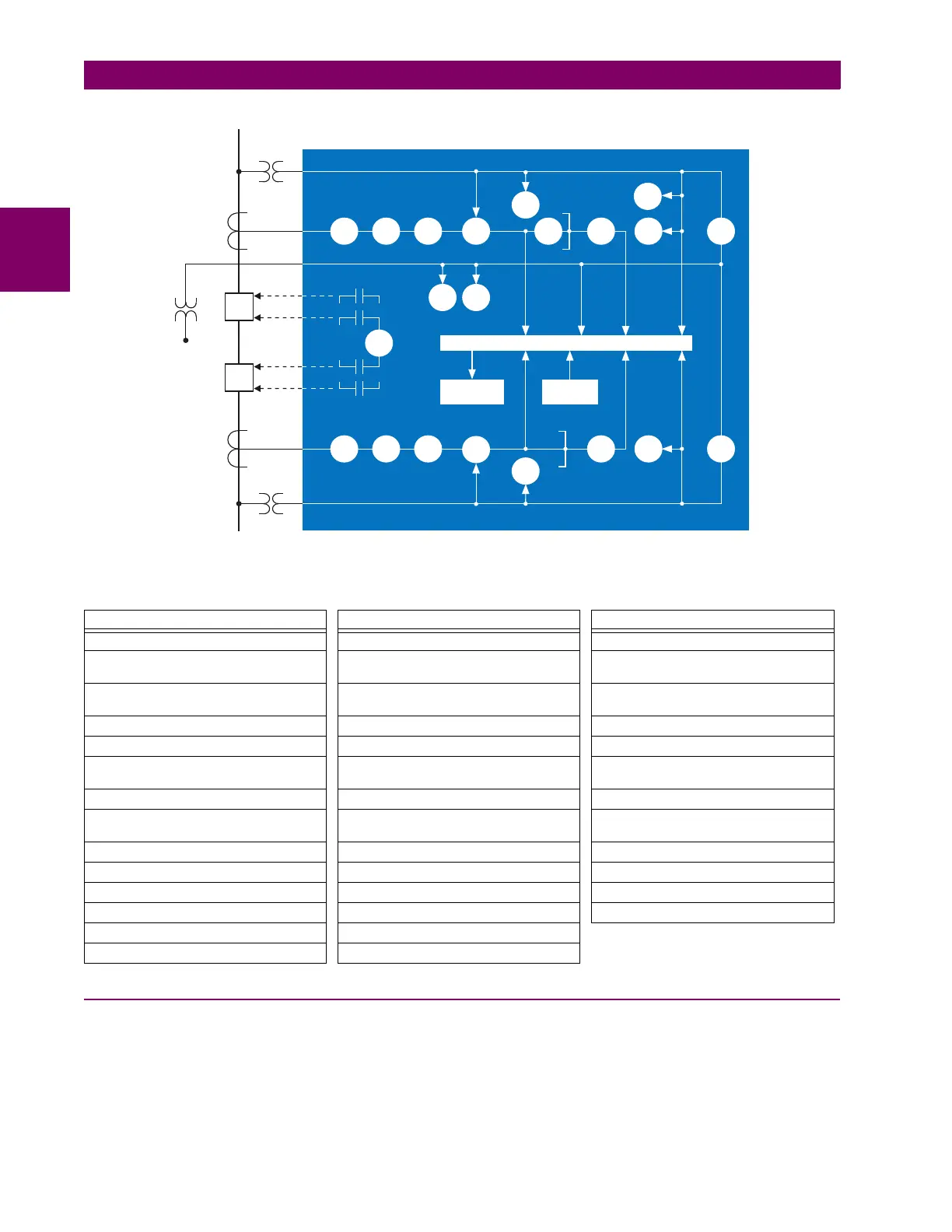

Figure 2–1: SINGLE LINE DIAGRAM
2.1.2 SECURITY
The following security features are available:
• Password security — Basic security present in the default offering of the product
• EnerVista security — Role-based access to various EnerVista software screens and configuration elements. The fea-
ture is available in the default offering of the product and only in the EnerVista software.
Table 2–2: OTHER DEVICE FUNCTIONS
FUNCTION FUNCTION FUNCTION
Breaker Arcing Current (I
2
t) Event Recorder Setting Groups (6)
Breaker Control DNP 3.0 or IEC 60870-5-104
Communications
Synchrophasors (PMU)
Breaker Flashover Fault Detector and Fault Report Time synchronization over IRIG-B or
IEEE 1588
Breaker Restrike FlexElements™ (8) Time Synchronization over SNTP
Contact Inputs (up to 96) FlexLogic Equations Transducer Inputs/Outputs
Contact Outputs (up to 64) IEC 60870-5-103 Communications
(optional)
User Definable Displays
Control Pushbuttons IEC 61850 Communications (optional) User Programmable LEDs
CyberSentry™ security Metering: Current, Voltage, Power,
Energy, Frequency
User Programmable Pushbuttons
Data Logger Modbus Communications User Programmable Self-Tests
Demand Modbus User Map Virtual Inputs (64)
Digital Counters (8) Non-Volatile Latches Virtual Outputs (96)
Digital Elements (48) Non-Volatile Selector Switch VT Fuse Failure
Direct Inputs/Outputs (32) Oscillography
Disconnect Switches Open Pole Detector
834710AD.CDR
C60 Breaker Protection System
Metering + PMU
Close
Close
Trip
Trip
TM
FlexElement
Transducer
input
79
27
27
25
25
50P 51P 50BF 50NBF
50P 50NBF51P
50BF
27X
52
52
32
32
59X
59N
59N
49
59P
