Invasive Pressure /
PA
Invasive Pressures
■ The invasive pressure labels
are displayed on the monitor
with a number (1 – 4). These
numbers identify the location
in the Dash monitor.
A maximum of six waveforms
and eight parameters can be
displayed on the monitor
when using individual scale
mode.
■ Invasive Pressure —
Insertion.
• To activate invasive pressure
monitoring, securely connect
the transducer cable into the
appropriate red port on the
side of the Dash monitor.
– The invasive parameter
window will automatically
appear once the cable is
plugged into the Dash
monitor.
– To discontinue invasive
monitoring, remove the
cable from the monitor.
The parameter window
will be removed from
the display.
• Preset names are assigned
to each pressure port:
– BP 1: Arterial Line
– BP 2: PA Line
NOTE: Up to two additional Invasive Pressures can be
monitored when using bifurcated cable plugged into the
invasive ports. (Available with Masimo only).

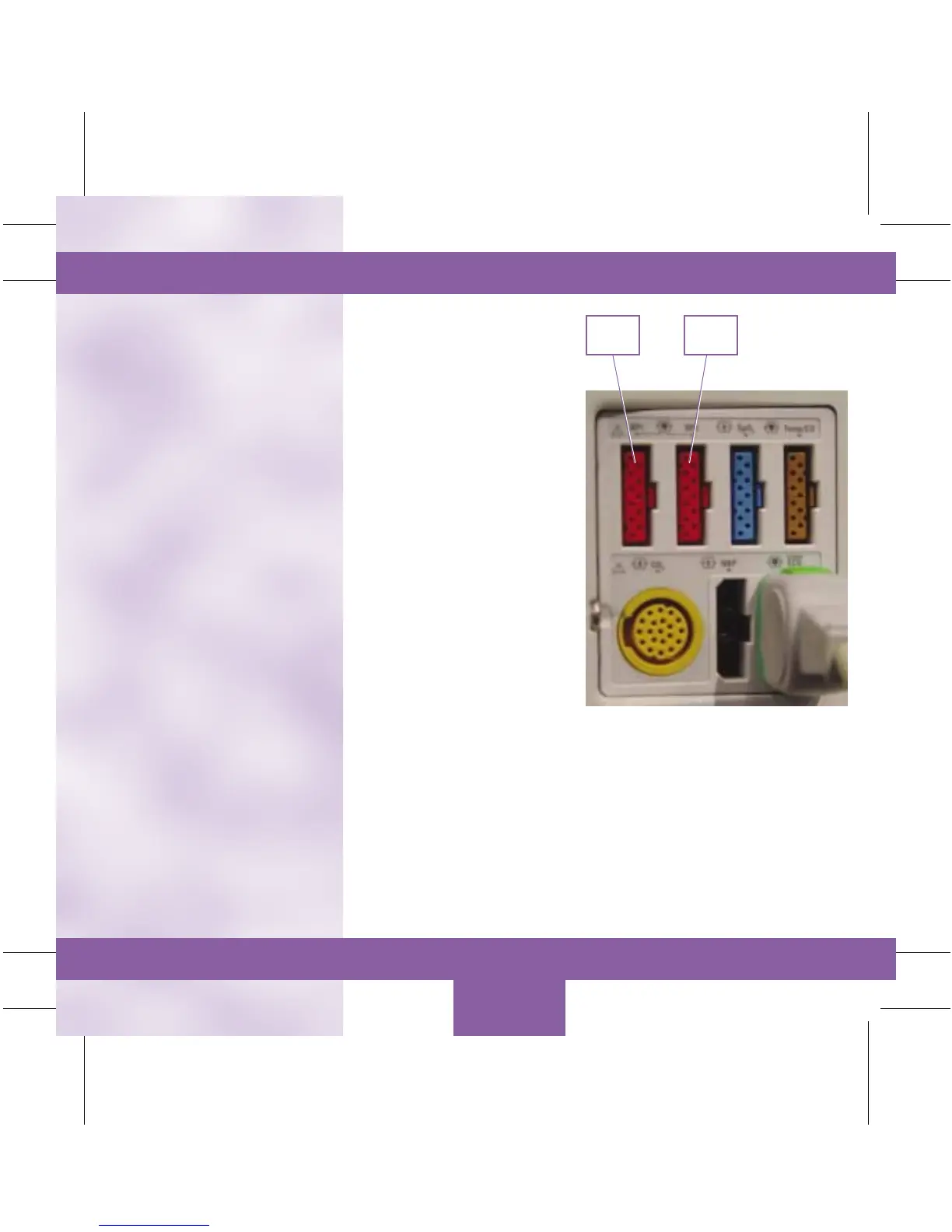

ART
BP 2
ART
BP 1
