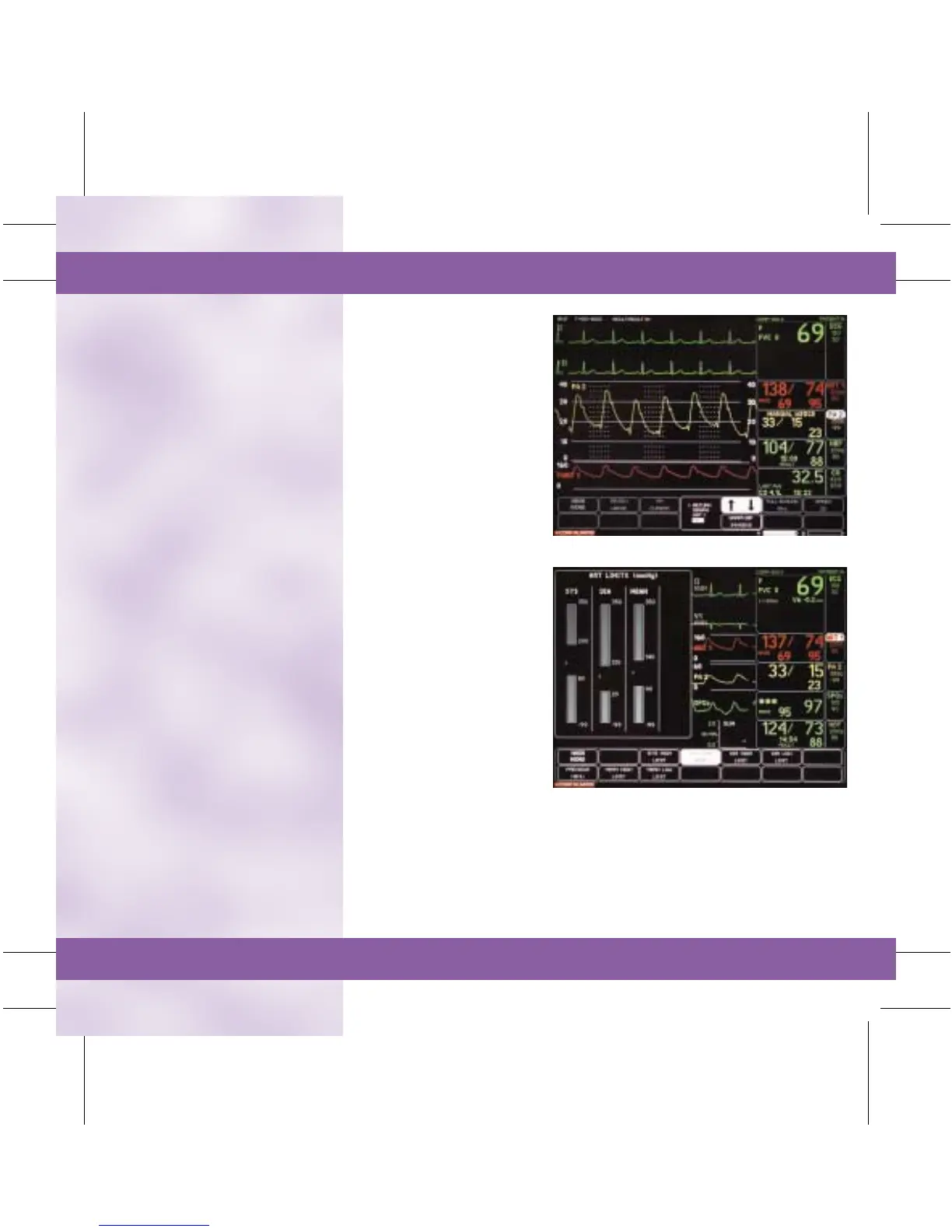

■ Graph BP Waveform
• To Graph Waveforms
(without ECG lead):
– Select MORE MENUS.
– Select MONITOR SETUP.
– Select GRAPH SETUP.
– Select GRAPH BP
INVASIVE.
– Highlight desired
waveforms to be graphed.
– Highlight GRAPH.
– Select MAIN MENU to
exit.
– Press the GRAPH GO/
STOP button on the
monitor to stop the graph.
NOTE: This feature is also available in the PA Insert/Wedge
menu.
■ Invasive Pressures —
Limits:
• To Change Invasive Line
Pressure Limits:
– Select the appropriate
parameter window.
– Select LIMITS.
– Select the appropriate limit
(systolic, diastolic or mean).
– Turn the Trim Knob to
the desired limit and press
to select.
– Select MAIN MENU to
exit.
■ Invasive Pressures —
Change Names:
• Be sure that the
invasive pressure
parameter window is
labeled correctly.
Having the invasive
pressure port named
properly is important
for proper waveform
processing and
scaling.
• To Change the Name:
– Select the desired
pressure parameter
window.
– Select NAME
CHANGE.
– A popup menu
opens, indicating
the available
options.
– Turn the cursor in
front of the desired
name and press to
select.
– Select MAIN
MENU to
exit.
Graph BP Waveforms
Changing Pressure Limits
