PA
PA Insert/Wedge is a feature
found in the PA Invasive
Pressures Menu. There are two
modes for doing a PA Wedge
measurement: Auto and
Manual.
■ The Auto Mode allows a PA
Wedge measurement to be
performed without having to
touch the monitor after
starting the program. The
Manual Mode defaults when
the PA Insert/Wedge menu
option is selected.
NOTE: The monitor must detect a 30% change in the
waveform to measure a wedge. If the waveform does not
change accordingly, the Wedge Processing message will not
appear and you must use the manual mode for wedge
measurements.
• To Complete an Auto PA
Wedge:
– Select PA.
– Select PA INSERT/
WEDGE.
– Select MODE:MANUAL
(this changes the mode to
Auto).
– An INFLATE BALLOON
message appears in the PA
parameter window.
– Deflate the balloon.
– PA Wedge Review
Information window is
automatically displayed.
– To change the PA value,
select MOVE WEDGE
CURSOR.
– Turn the Trim Knob to
move the cursor to the
desired position and press
to select.
– Press the GRAPH GO/
STOP button on the
monitor to print window.
– Select MAIN MENU to
exit.
NOTE: The last PAW with a time stamp will be displayed in the
PA parameter window.

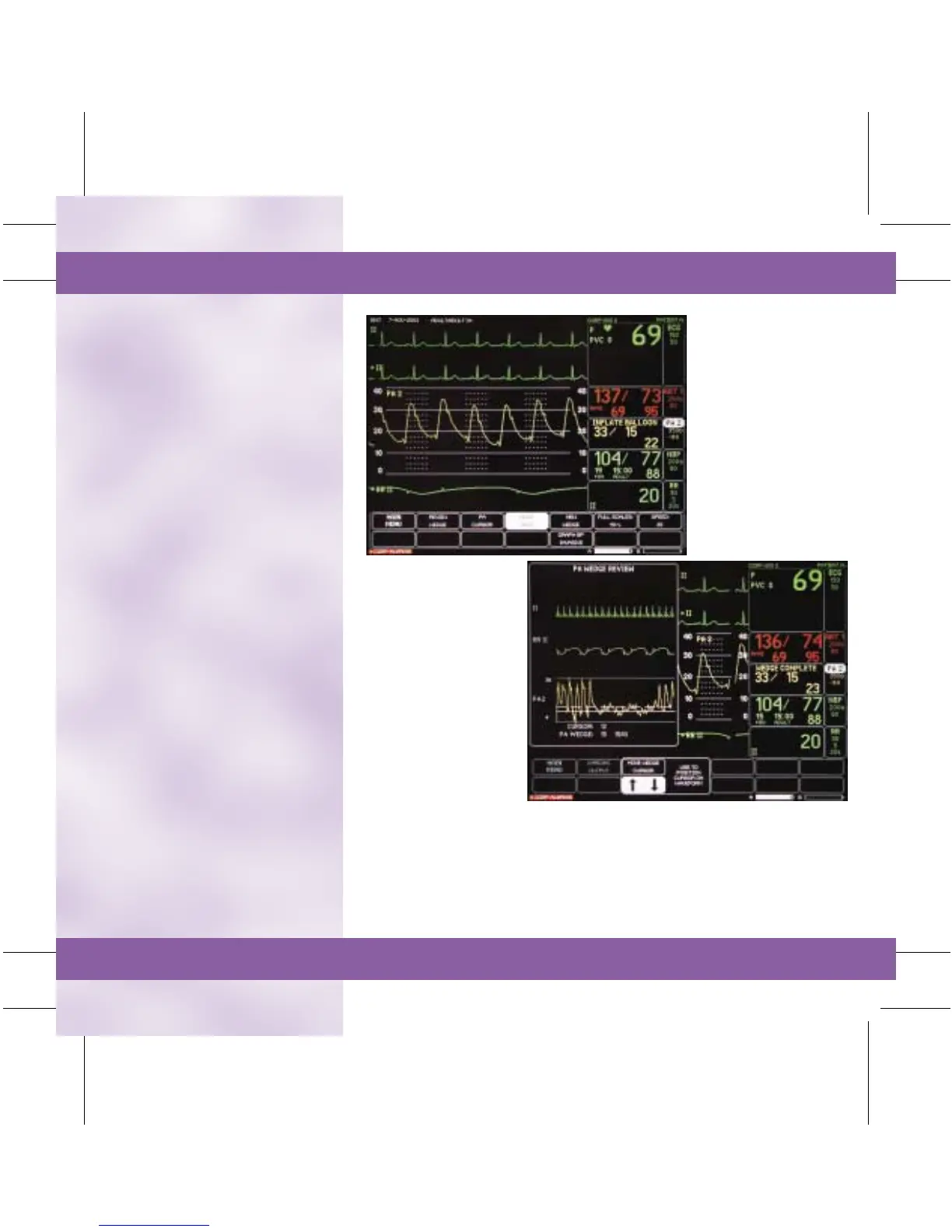

PA Insert/Wedge
PA Wedge Review
