DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 41
8-6-5 Foot Rest Bumper replacement
Foot Rest Bumper removal
The Foot Rest Bumper is attached to the LOGIQ E10 with two self-clinching studs.
Table 8-31 Manpower / Time and Tools
Manpower /
Time
Tools / PPE
One person /
15 minutes
No tools are required.
Table 8-32 Preparations and Preparation Links
Preparations - you must perform the following steps
1. Power down the system.
2. Disconnect the mains power cable from the wall outlet and all Probes and External I/O Cabling.
3. Remove the Side Covers and Front Cover.
Preparation Links (if you need more information):
• 4-2-4 "Power SHUT DOWN" on page 4-9.
• 8-6-3 "Side Cover(s)/Side Air Intake (Filter) inspection / replacement" on page 8-33.
• 8-6-4 "Front Cover replacement" on page 8-38.
Table 8-33 Foot Rest Bumper removal
Steps

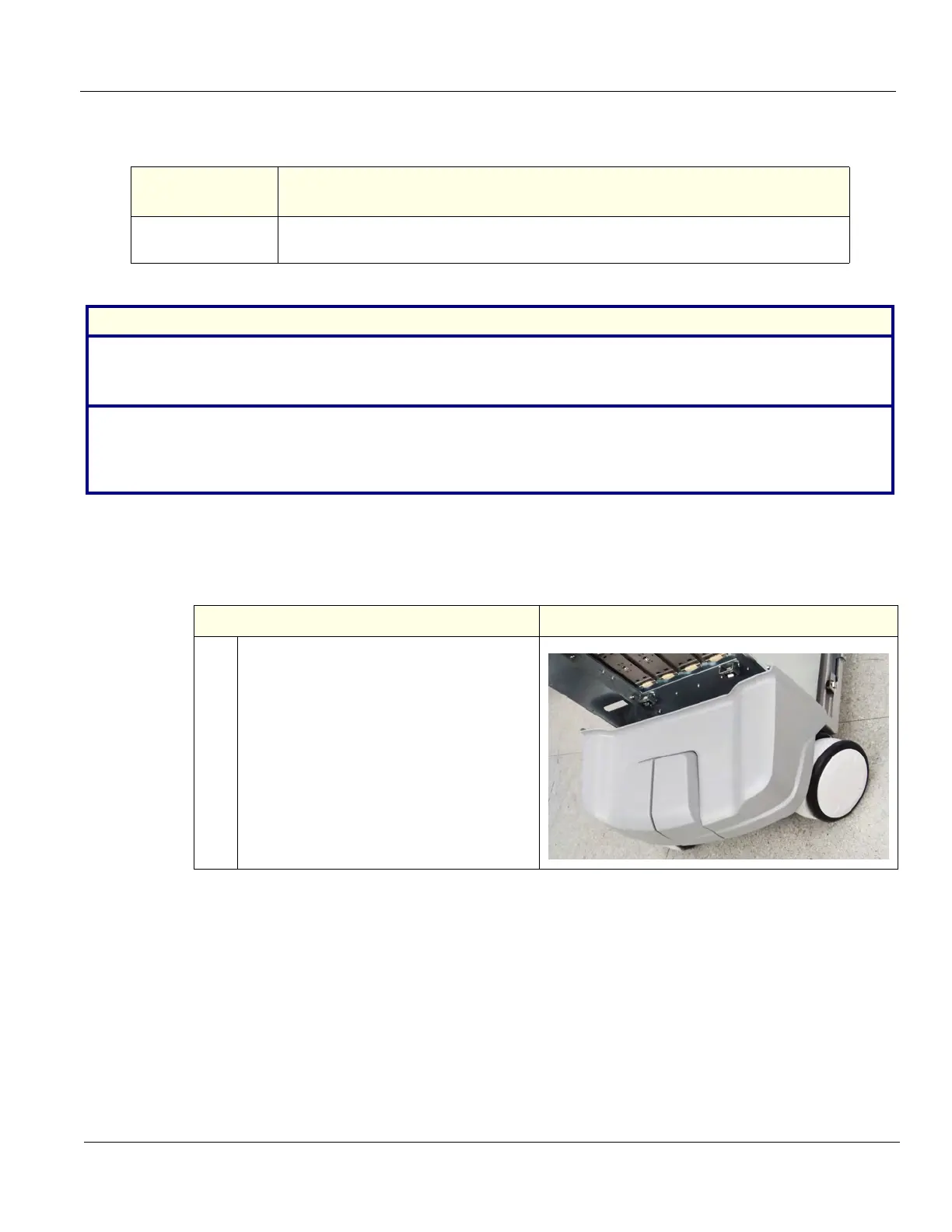

Corresponding Graphic
1.
With both hands at the bottom, gently and
evenly, pull the Bumper straight up.
Set bumper in a safe place.
