GE LOGIQ E10 Service Manual
4
of 1
of 1 rating
778 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
D
IRECTION
5750007-1EN, R
EV
. 1
LOGIQ E10
B
ASIC
S
ERVICE
M
ANUAL
8 - 260
Section 8-11 - Fr
ont End Acquisition / Card Cage parts replacement

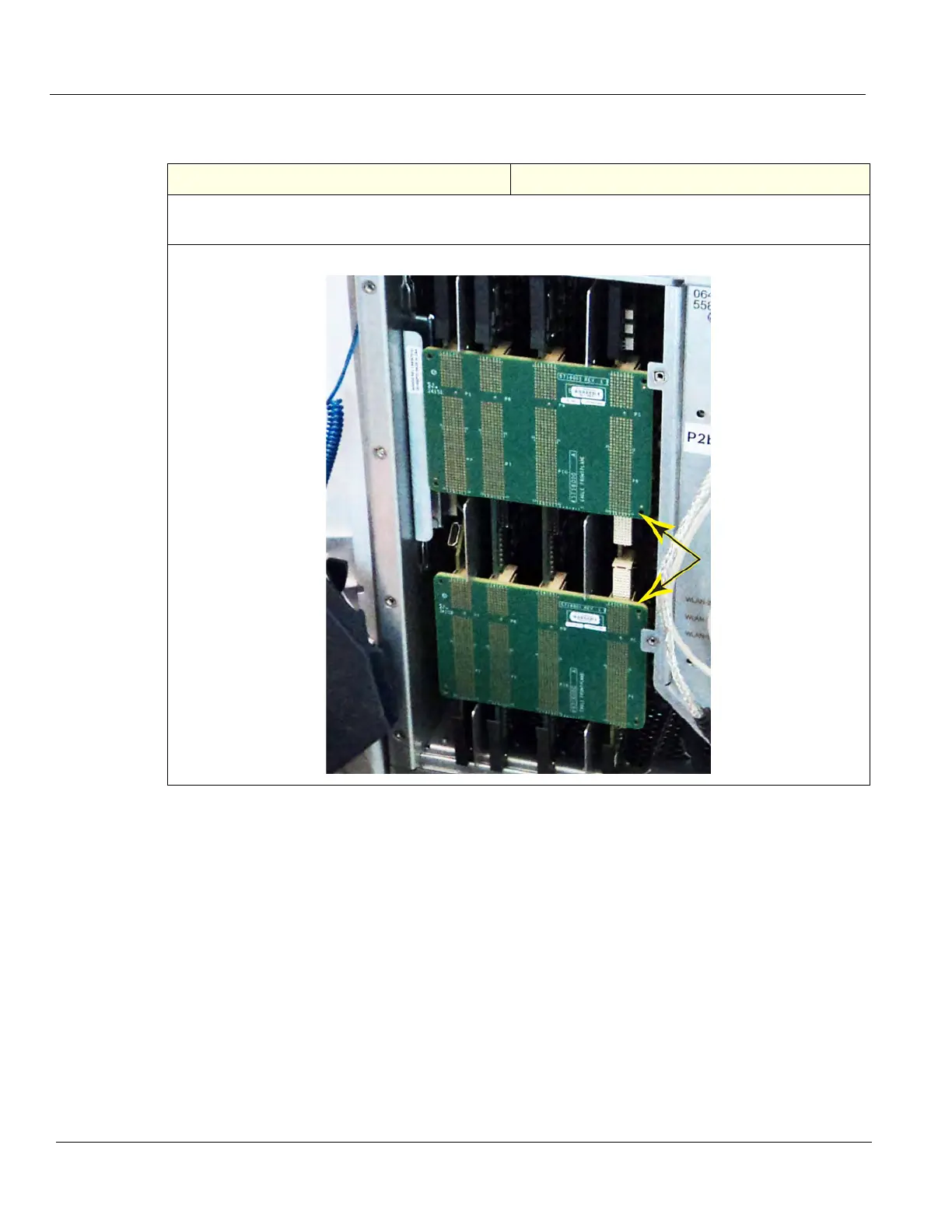

Front Plane
Boards removal
Table 8-282 Front Plane Boar
ds removal
Step
Corresponding Graphic
NOTE: Read through the removal and installa
tion steps completely before performing. Perfor
m the
steps carefully to avoid damage to the Front Plane
connectors
.
Front Plane
Boards
505
507
Table of Contents
Table of Contents
19
CHAPTER 1 Introduction
21
Overview
21
Chapter 1 Introduction
37
Contents in this Chapter
37
Purpose of this Chapter
37
Service Manual Overview
38
Attention
38
Contents in this Service Manual
39
Typical Users of LOGIQ E10 Documentation
40
LOGIQ E10 Models Covered in this Manual
40
Service Manual Overview
40
Product Description
41
Important Conventions
42
Conventions Used in Book
42
Standard Hazard Icons
43
Product Icons
46
Product Labels on the LOGIQ E10 When Used in a Veterinary Environment
53
Safety Considerations
54
Introduction
54
Human Safety
54
Mechanical Safety
57
Electrical Safety
60
Battery Safety
61
Label Locations
62
Dangerous Procedure Warnings
63
Lockout/Tagout (LOTO) Requirements
64
Lockout/Tagout Procedure
65
Returning/Shipping Probes and Repair Parts
66
Electromagnetic Compatibility (EMC)
67
What Is EMC
67
Compliance
67
Electrostatic Discharge (ESD) Prevention
68
Customer Assistance
69
Section 3-4 Completing the Setup
106
Electrical Specifications
107
Connections on the I/O Rear Panel
108
Connecting Probes
109
Connections on the Patient I/O Panel
109
Power On/Boot up
111
Password Policies
114
Disc Encryption
118
Login
121
Logoff/Power Shut down
123
Complete Power down
124
Section 4-2 Functional Checks
132
General Procedures
133
Overview
134
Power On/Boot up
136
Power SHUT down
139
Top Console Checks
140
Brakes and Direction Lock Functional Checks
144
Operation Checks
145
Chapter 5 Components and Functions (Theory)
159
LOGIQ E10 Models
160
LOGIQ E10 Description
161
Software Overview
163
Service Desktop
168
Front End
170
Back End
172
Backplane
176
Top Console with Main Monitor and Operator Panel
178
Power Distribution
179
Air Flow Control
183
Casters and Brakes Description
184
Options and Peripherals Descriptions
185
Section 7-3 Service Desktop
216
Color Statuses
217
Disruptive Mode
217
Licenses
218
Home
220
Utilities
226
Options
237
Agent Configuration
238
Section 7-4 Troubleshooting
240
EMI Prevention/Abatement
241
Noise
242
Shortcut Keys
245
Test of Printers
245
Section 8-7 Replacing Top Console Parts
329
Main Monitor Assembly Replacement
330
Main Monitor Arm Assembly Replacement
337
Main Monitor Arm Assembly Adapter Replacement
345
Probe Holder Insert Replacement
352
OP (Operator Panel) Knobs Replacement
355
Silicone Keyboard Cover Replacement
357
A/N Keyboard Mechanics Replacement
360
Upper OP (Operator Panel)/Touch Panel Assembly Replacement
363
Lower OP (Operator Panel) Replacement
368
Bulkhead Board Replacement
373
Bulkhead, Plate, Extended Replacement
379
Cover, UI Upper Assembly (Speakers) Replacement
383
Trackball Assembly Replacement
387
Lower Bezel Replacement
390
Upper OP Frame Assembly Replacement
398
Lower OP Frame Assembly Replacement
402
Palm Rest Cover Replacement
406
Left Handle Cover Replacement
409
Right Handle Cover Replacement
412
Options Holder / Left or Right Support Replacement
415
Gel Warmer Replacement
419
Storage Tray / Transvaginal Probe Holder Replacement
423
Replacing the Gel Warmer with a Storage Tray or TV/TR Probe Holder
425
XYZ Buttons Replacement
426
Probe Cable Hooks Replacement
429
Section 8-10 Casters and Brakes Replacement
474
Rear Caster(S) Replacement
475
Front Caster(S) Replacement
478
Caster Hubcap Replacement
482
Pedal Mechanism Replacement
485
Pedal Mechanism Cam FRU Replacement
490
Pedal Mechanism Covers Replacement
496
Section 8-11 Front End Acquisition / Card Cage Parts Replacement
499
Front End Card Cage Cover Replacement
501
Front Plane / XD BUS Replacement
505
Relay Board (GRLY or RLY) Replacement
509
Transmitter Board (ETX) Replacement
512
ECB Replacement
518
GPU Replacement
524
WLAN Replacement
532
BIOS Battery Replacement
538
EPM Replacement
541
Backplane Replacement
544
Connector Panel Replacement
560
Rear I/O Replacement
573
Batteries Replacement
576
HDD Replacement
581
Fan Tray Replacement
585
Light Block (Hard Drive/Network Status) Replacement
588
Printer Tray Replacement
591
Cable Holders - ECB, Main Power Supply and Rear I/O Replacement
594
Option Box Replacement
598
Card Cage Replacement
607
Section 8-13 Peripherals Replacement
619
DVD R/W Drive Replacement
620
Internal Peripherals Overview
620
Drive Bay Storage Drawer (DVD Storage) Replacement
624
Shear Wave Capacitor Pack Replacement
627
External Peripherals Overview
630
Section 8-16 Options Replacement
652
LOGIQ E10 Options Installation Instructions
653
LOGIQ E10 Option Location
654
Option Replacement
655
CW Option Replacement
659
Patient I/O ECG Option Replacement
663
Power Assistant Option Replacement
669
Printer (Digital Graphic) Replacement
673
Shear Wave Option Replacement
677
Nav Option Replacement
680
Wireless LAN Option
683
Chapter 9 Renewal Parts
685
List of Abbreviations
686
Software
688
Covers and Bumpers
689
Top Console Parts
695
XYZ Mechanism Parts
700
Main Console Parts
702
Casters (Wheels) Parts
706
Back End Parts
712
Main Power Supply
714
Peripherals
715
Mains Power Cables
716
Internal Cables
718
Probes
723
Options
728
