8-10 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-4 LCD Std Arm with Cover
8-2-4-1 Tools
• Common pilIips screwdrivers
• Allen/Unbraco wrench
8-2-4-2 Preparations
• Shut down the system and switch off the main breaker.
• Maneuver control console to a suitable position for removing the monitor.
8-2-4-3 Removal procedure
1.) Remove the Power Cable, DVI Cable.
2.) Unscrew 1 screw to remove the LCD arm cover.

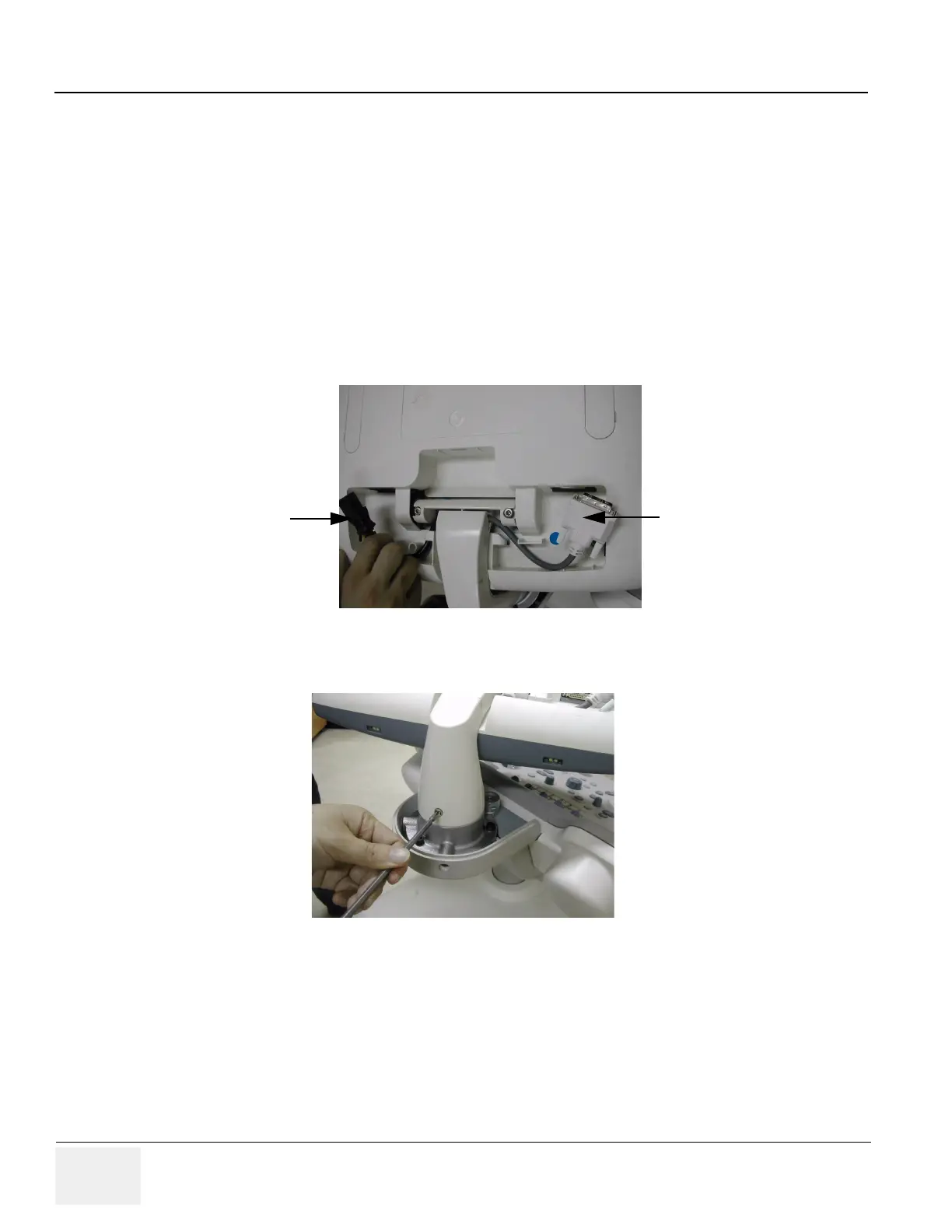

Figure 8-13 Removing the Cable
Figure 8-14 Unscrews 1 screw
