DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-7 - Mechanical Option Installation instruction 8-221
8-7-21 MTZ PROBE HOLDER Installation
1.) This section describes the installation procedure of the MTZ PROBE HOLDER.
2.) Assemble the MTZ PROBE HOLDER FIX BRKT to MTZ HOLDER with 3 screws (2160212, FH
M4X8)
3.) Assemble the Holder to bottom of the Keyboard with 2 screws (2159634, BH M4X10).
4.) Installation completion.

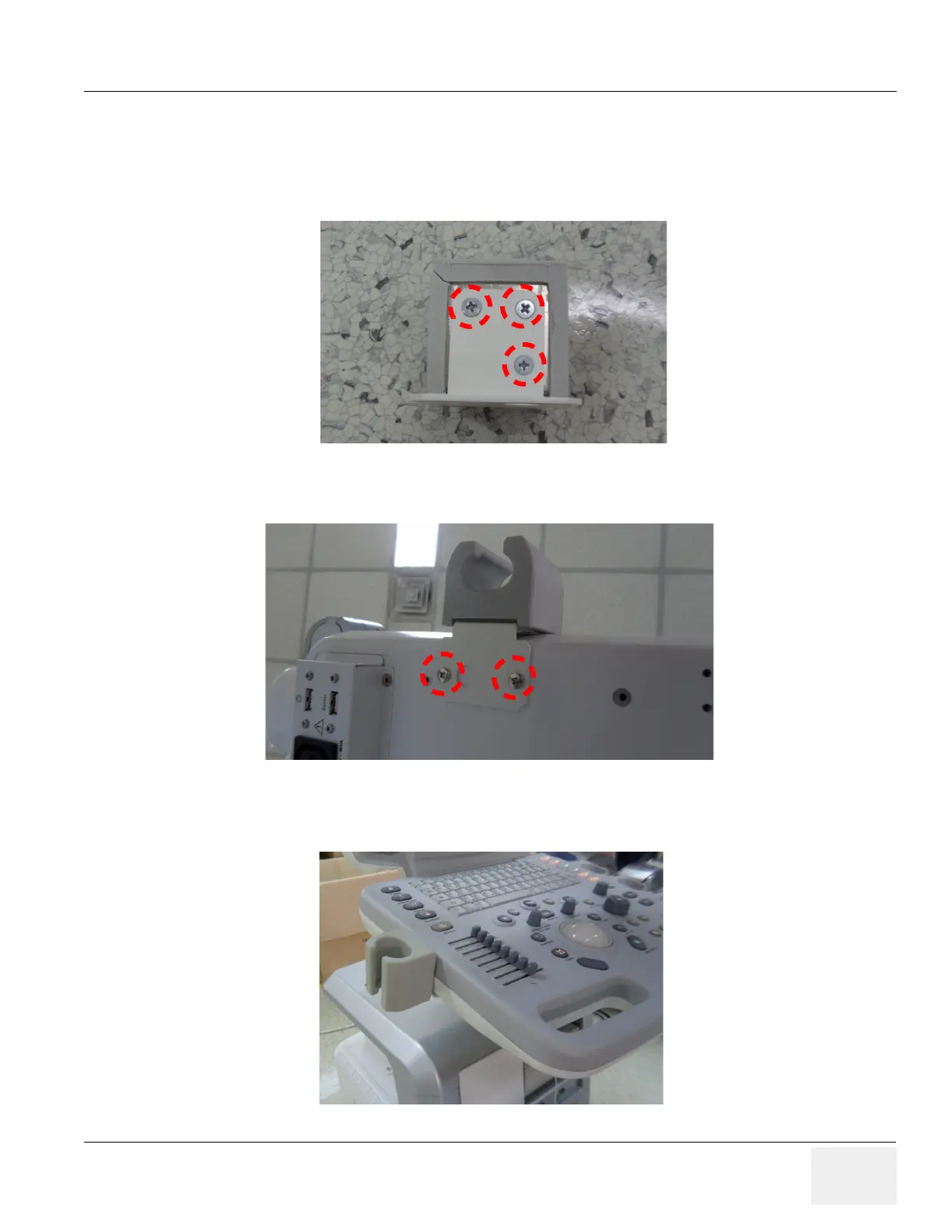

Figure 8-338 MTZ PROBE HOLDER Installation
Figure 8-339 MTZ PROBE HOLDER Installation
Figure 8-340 MTZ PROBE HOLDER Installation
