DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
8-196 Section 8-7 - Mechanical Option Installation instruction
8-7-11 Color Printer Fixture Top Installation - UP-D25MD Printer
1.) Unscrew 2 existing screws from the top cover.
2.) Connect the USB cable and Power cable to the Color Printer.
3.) Install Fixture DVD bot bracket on the top cover by screwing 2 screws (2327592, FH M4x14).

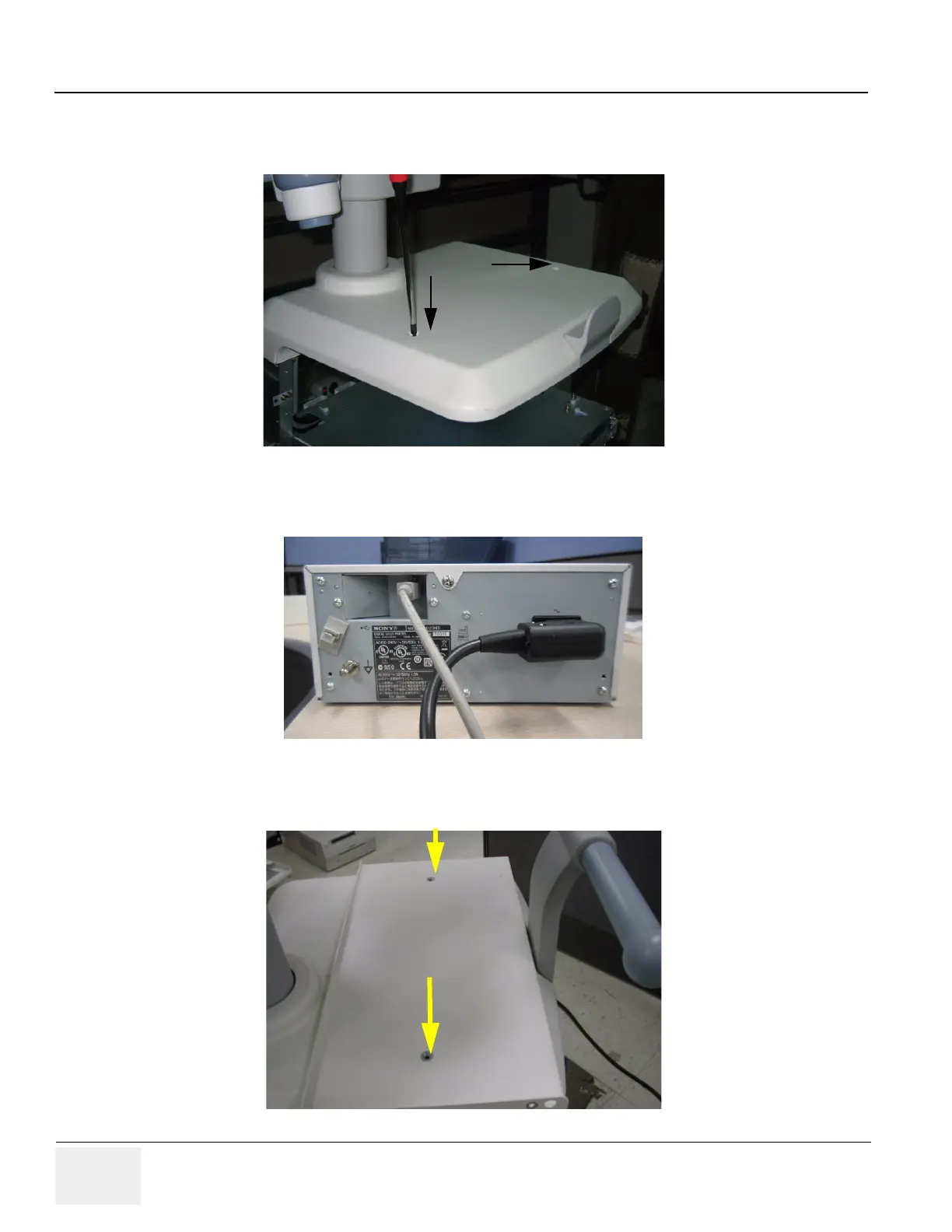

Figure 8-284 Color Printer Fixture Top Installation
Figure 8-285 Color Printer Fixture Top Installation
Figure 8-286 Color Printer Fixture Top Installation
