Revision B2-6
Equipment Overview: Preparation for Use
MAC 5000 resting ECG analysis system
2000657-002

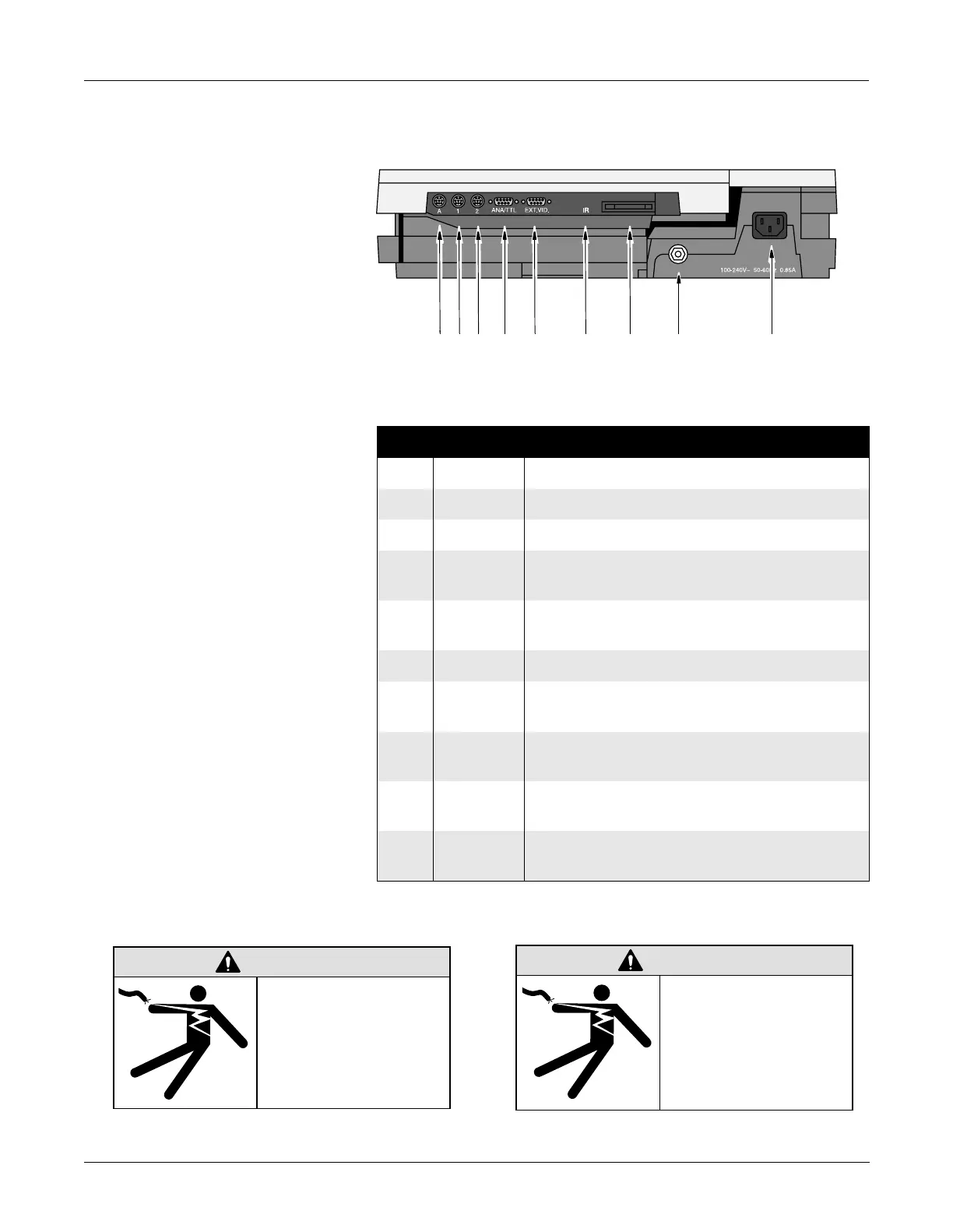

Connector Identification
MD1325-118
ABC D E F HGI
Table 2-1. Back Panel Connectors
Item Name Description
A A Not functional.
B 1 Connect a Marquette KISS pump (optional).
C 2 Connect a local transmission cable, serial line,
Marquette KISS pump, or external modem (optional).
D ANA/TTL Connect a device requiring analog data or TTL
trigger.
E EXT.VID. Connect an external video display.
F IR Point at a MAC 5000 or MUSE CV system’s IR
transceiver to transmit or receive ECG data.
G card slot Insert the software card into this slot to run the
system.
H ground lug Connect non-grounded peripheral devices to ensure
equipotential.
I mains AC
power
Insert the mains AC power cable.
WARNING
M15287-7C
Keep leakage current
within acceptable limits
when connecting
auxiliary equipment to
this device.
WARNING
M15287-9D
Total system leakage
current must not
exceed 100
microamperes.
