GE Marquette MAC 5000 User Manual

Revision B3-6
Maintenance: Battery and Patient Cable Replacement
MAC 5000 resting ECG analysis system
2000657-002

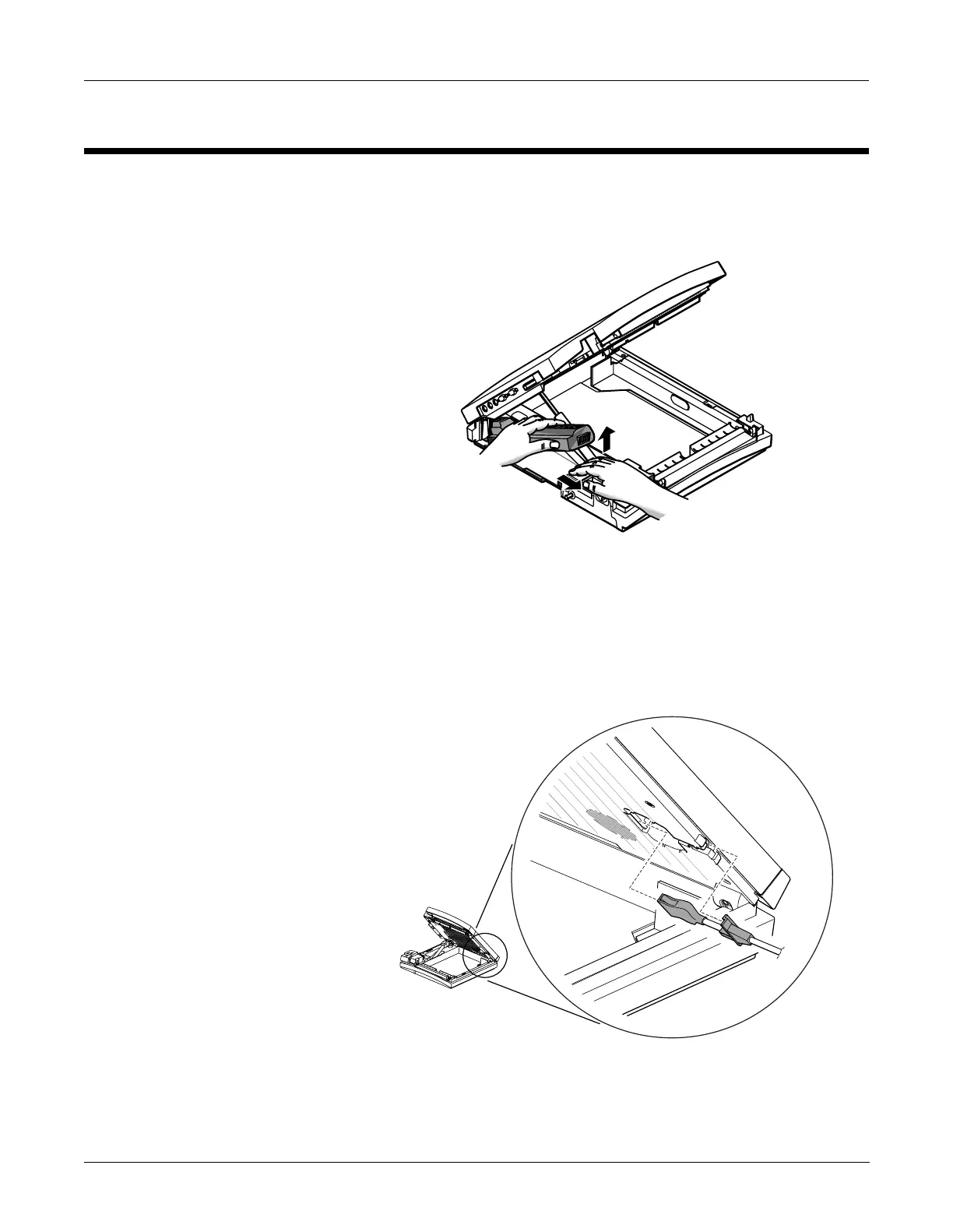

Battery and Patient Cable Replacement
Battery Replacement
1. Press the internal access button to open the unit.
2. Slide the battery release button in the direction of the arrow and
lift the battery out.
3. Install a new battery and close the unit.
Patient Cable
Replacement
1. Press the internal access button to open the unit.
2. Press connector release tabs and pull the connector loose.
3. Pull the cable from the retaining tabs.
4. Reassemble the cable by reversing the above steps.
MD1325-112B
MD1322-006
