Revision B3-8
Maintenance: Disassembly Guidelines
MAC 5000 resting ECG analysis system
2000657-002
Reassembly
Reassemble the power supply reversing the steps for removal. Before
replacing the screws, ensure that the ground wire is routed through the
notch in the plastic and not pinched.
Top Cover
Removal

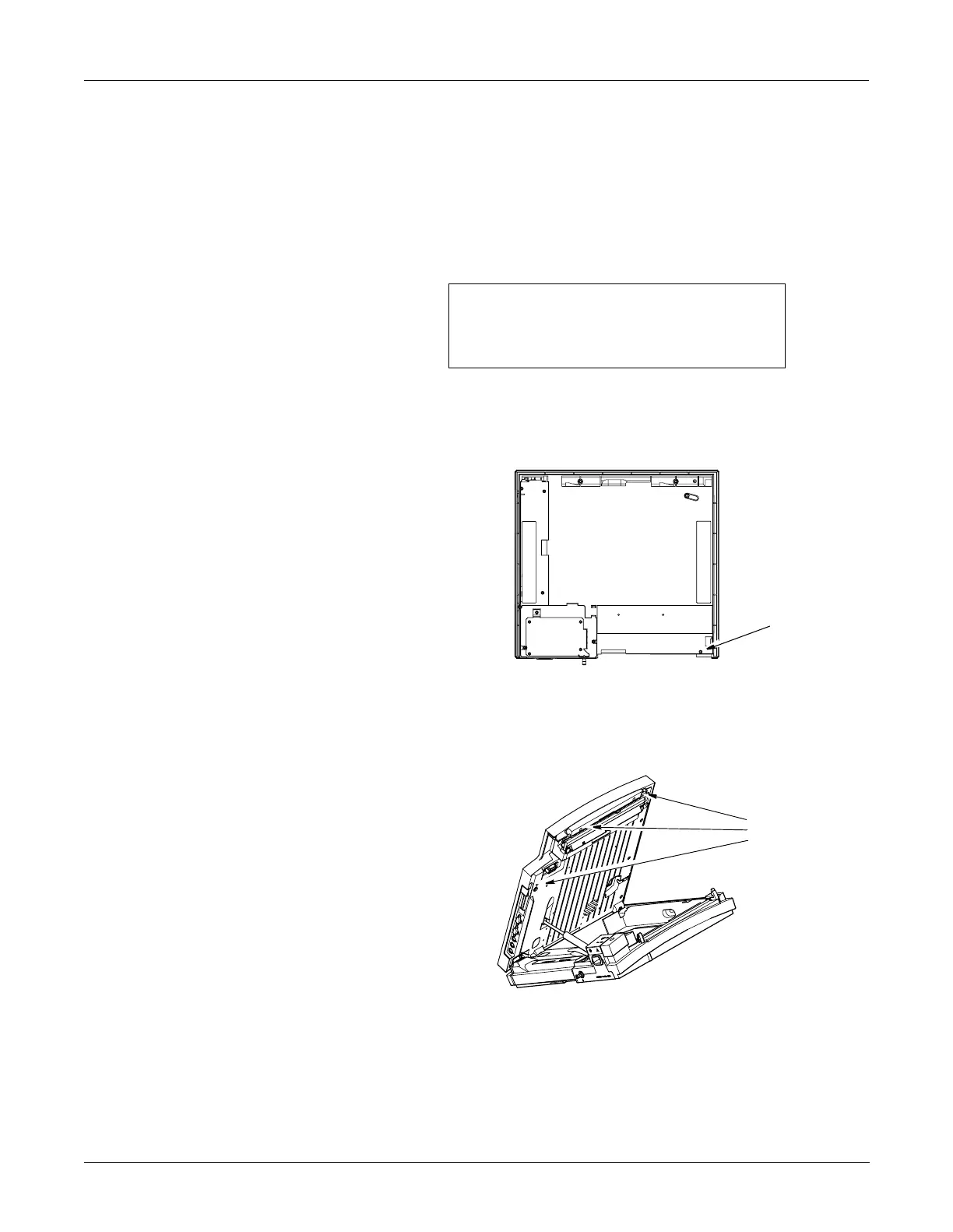

1. Turn the unit over so the bottom side is up and remove the
TORX screw through the hole on the right rear corner of the
unit. (This screw is only visible and accessible with the battery
removed.)
2. Turn the unit right side up and press the internal access button
and raise the top of the unit.
3. Remove three TORX screws.
4. Lower the top of the unit and lock in place.
5. Raise the display to the vertical position.
NOTE
It is not necessary to remove the power
supply prior to removing the top cover.
TORX
Screw
MD1322-002
Three TORX
Screws
MD1322-004A
To Next Page
