GE Marquette MAC 5000 User Manual

Revision B 4-5
Troubleshooting: Input and Output Connectors
MAC 5000 resting ECG analysis system
2000657-002
ANALOG Pins (J6)
EXT. VID. Pins (J7)

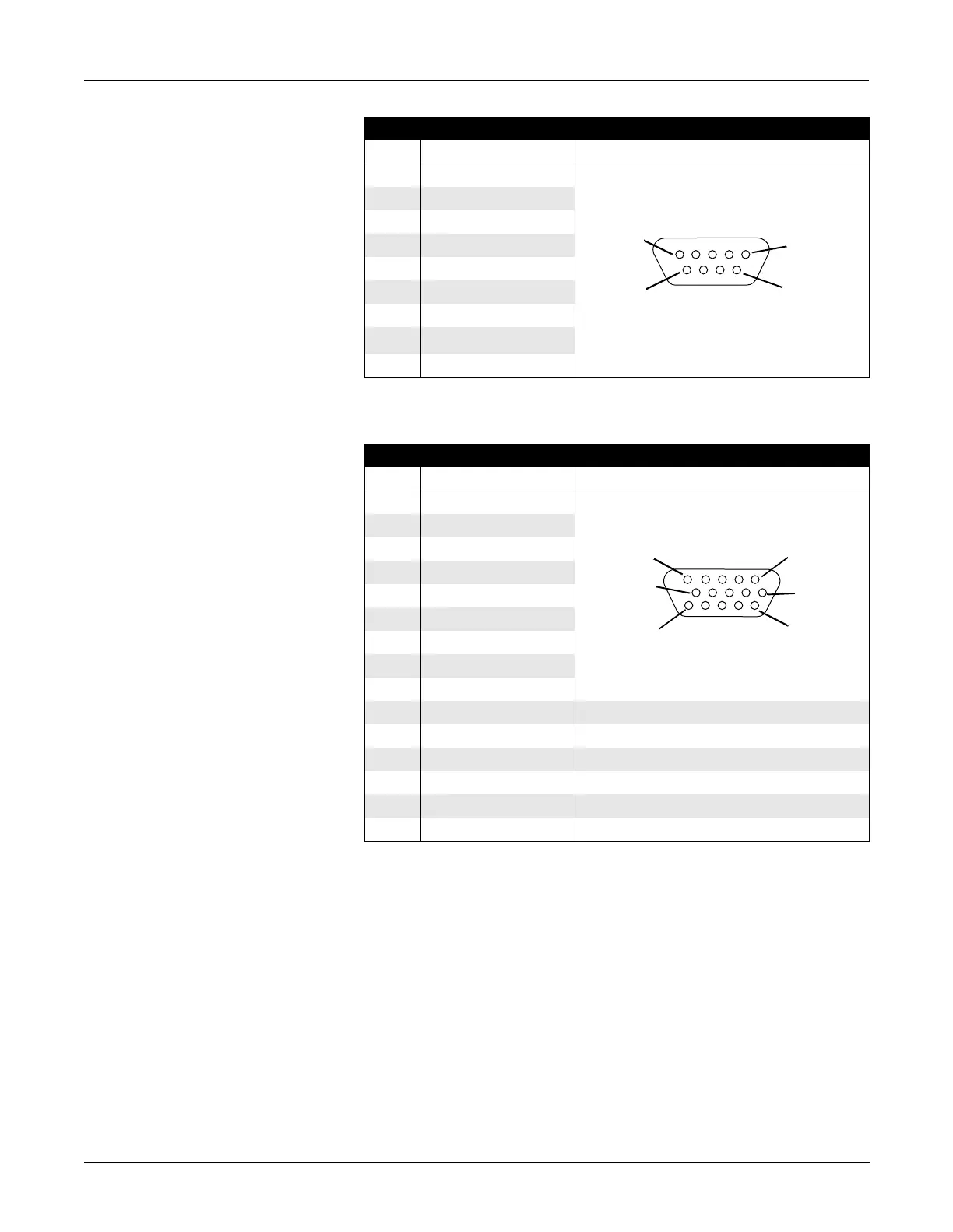

Table 4-4. Acquisition Module Connector (J4)
Pin Name
1+12V
2 DC Output 1
3 TTL Trigger Output
4 Ground
5 Ground
6 DC Output 2
7 DC Input 1
8 ECG Output
9 DC Input 2
6
9
5
1
Table 4-5. External VGA Video (J7)
Pin Name
1Red Video
2 Green Video
3Blue Video
4 Ground
5 Ground
6 Ground
7 Ground
8 Ground
9NC
10 Ground
11 Ground
12 NC
13 Horizontal Sync
14 Vertical Sync
15 NC
1
6
15
5
11
10
MD1322-010
MD1322-009
