Revision B4-6
Troubleshooting: Internal Cabling
MAC 5000 resting ECG analysis system
2000657-002
Internal Cabling

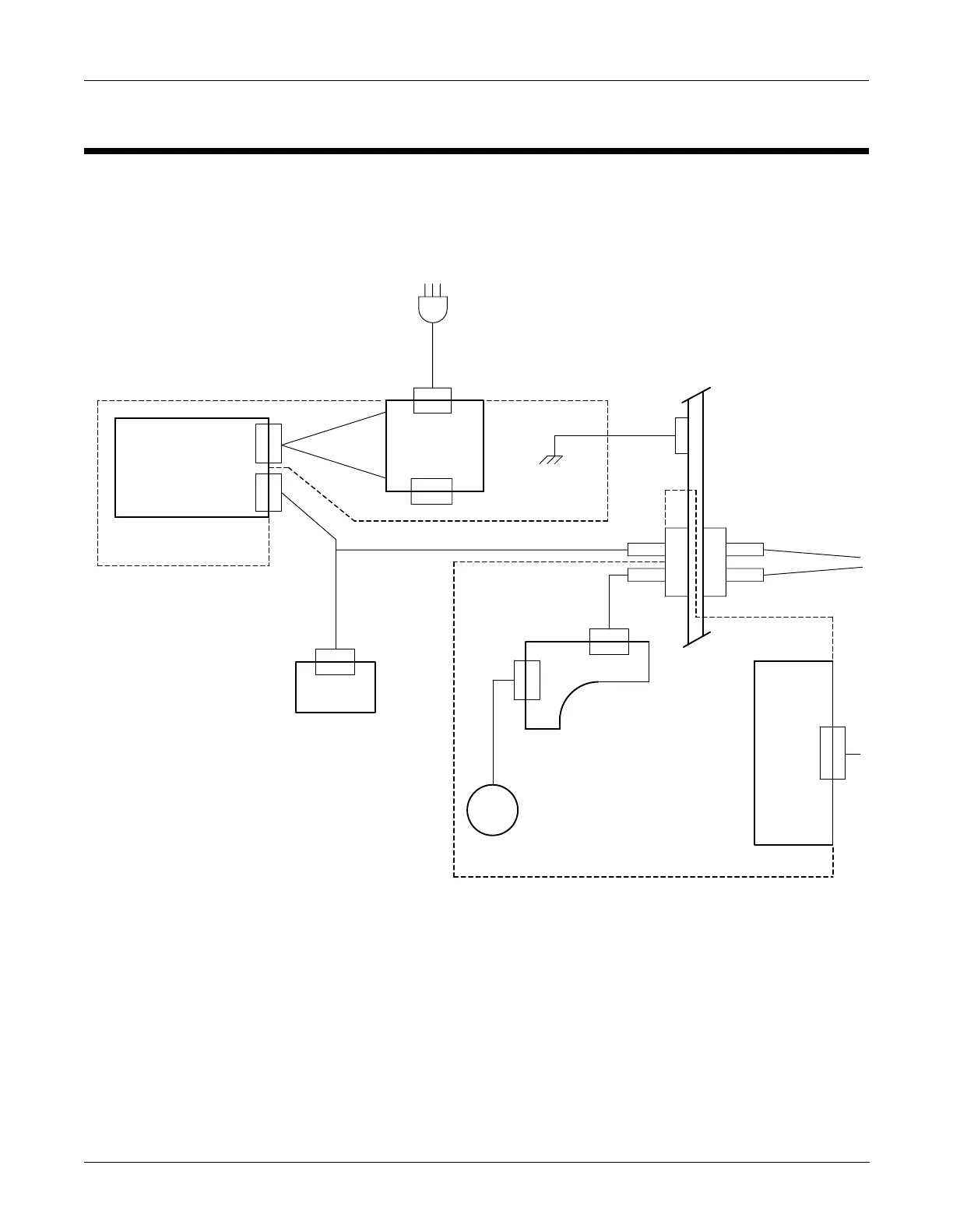

This diagram shows the cables and connectors for the assemblies in the
unit. The following pages detail the input/output signals for those
connectors.
A9J2
A9J1
A11P2 P1
W3
A11P3
P2
J1
W3P1
J2
W1E1
E1 Power Supply
Mounting Bracket
W1
W1E3
A8
A11P1
P2
E4 E5
A8P3
A8P2
J2
P1
P2
J1
Motor BD
Printhead
Sensor
Motor
A7 - Writer Assembly
A6P2
P1
A10J1
Power Supply
421117-001
700645-001
801222-001
801600-001
422397-001
700682-001
A9 - Power Supply
A10
Led BD
Power
Input
A11
MD1322-015L
