GE Multilin T35 Transformer Protection System 1-7
1 GETTING STARTED 1.3 ENERVISTA UR SETUP SOFTWARE
1

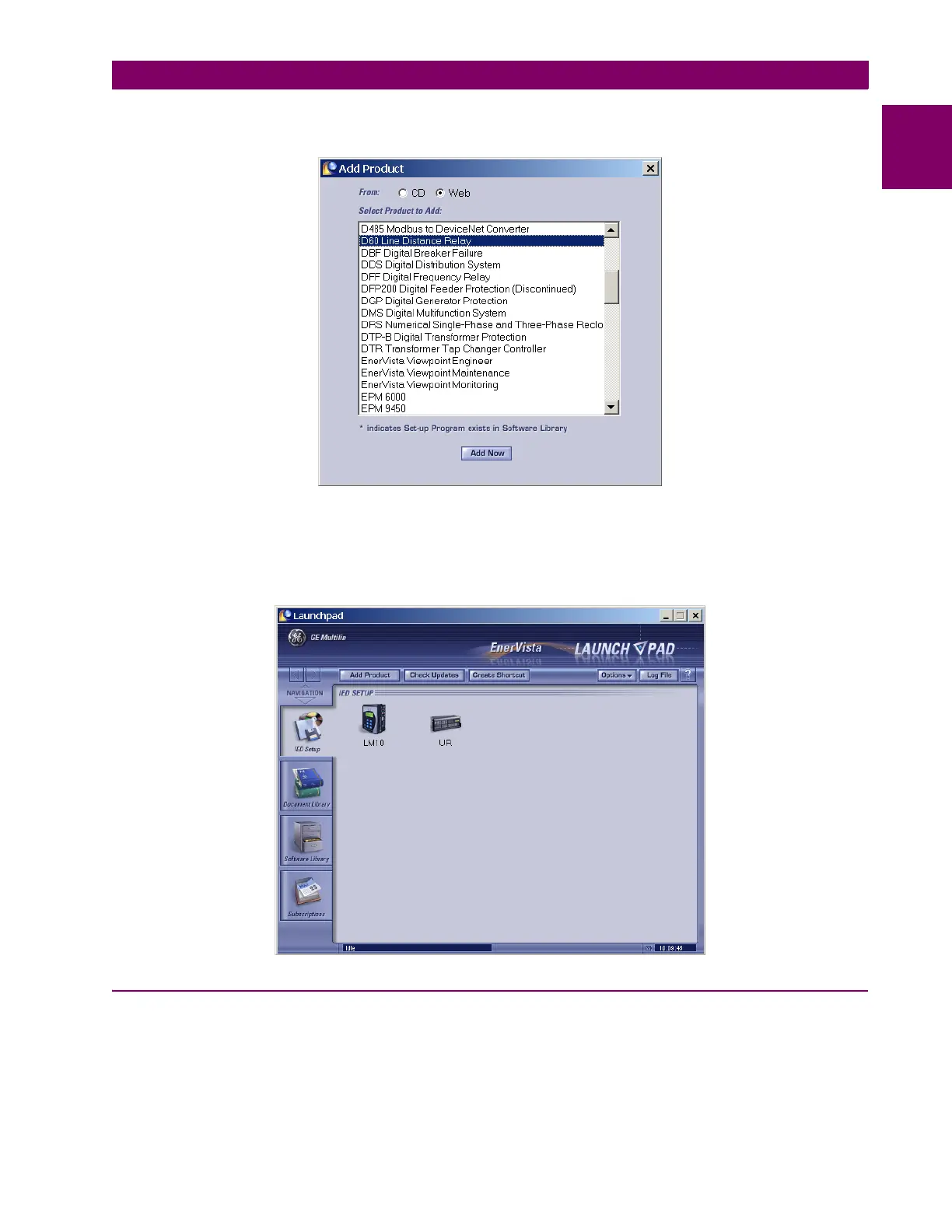

nection, then click the Add Now button to list software items for the product. EnerVista Launchpad then obtains the
software from the Internet or CD and automatically starts the installation program.
6. Select the complete path, including the new directory name, where the EnerVista UR Setup is to be installed.
7. Click on Next to begin the installation. The files are installed in the directory indicated, and the installation program
automatically creates icons and adds EnerVista UR Setup to the Windows start menu.
8. Click Finish to complete the installation. The UR-series device is added to the list of installed IEDs in the EnerVista
Launchpad window, as shown.
1.3.3 CONFIGURING THE T35 FOR SOFTWARE ACCESS
a) OVERVIEW
The user can connect remotely to the T35 through the rear RS485 port or the rear Ethernet port with a computer running
the EnerVista UR Setup software. The T35 can also be accessed locally with a computer through the front panel RS232
port or the rear Ethernet port using the Quick Connect feature.
• To configure the T35 for remote access via the rear RS485 port, see the Configuring Serial Communications section.
