IRECTION GB091046, REVISION 2 VIVID E9 / VIVID E7 BT’13 SERVICE MANUAL
Chapter 6 - Service adjustments 6 - 15
6-7-3-2 XY Lock Adjustment for Lock and Brake Mechanism
Follow this procedure if the park lock is not working, or the lock does not respond when pressing the
Frogleg Controls:
1.) Release the lock manually.
2.) Remove the four screws, Item 1. The screws’s heads are marked with red color in the figure below.
Be aware of the fragile power cable and do not pull the Park Lock out with force. It should fall
out by just guiding.

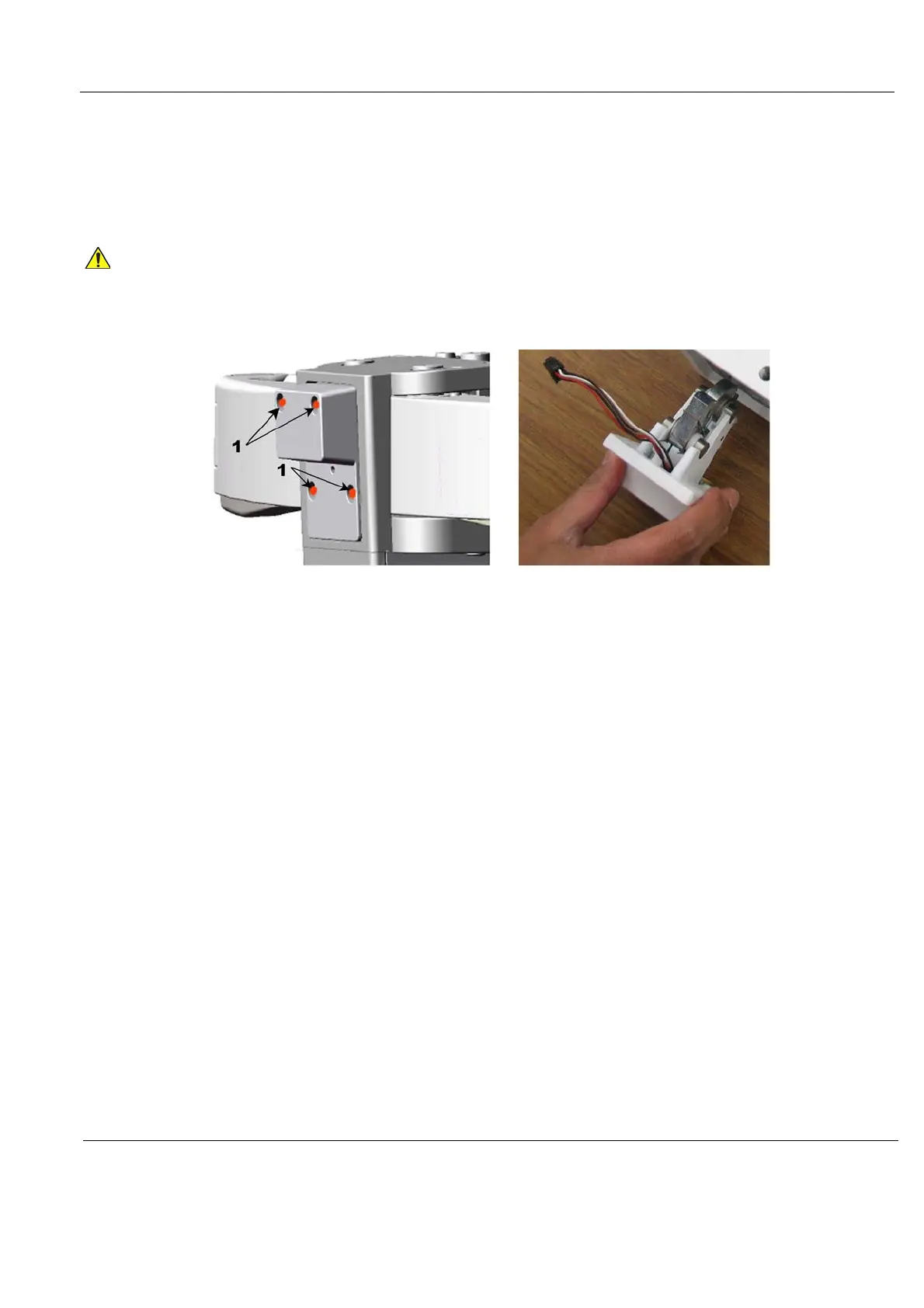

Figure 6-14 Remove the Park Lock
