IRECTION GB091046, REVISION 2 VIVID E9 / VIVID E7 BT’13 SERVICE MANUAL
6 - 16 Section 6-7 - Adjusting the XYZ Mechanism
6-7-3-2 XY Lock Adjustment for Lock and Brake Mechanism (cont’d)
•If the Park Lock Nut (2) and the Park Lock Lever (3), are in the positions illustrated in Figure 6-
15, the lock will not engage.
(This occurred in some earlier systems. The nut and retainer did not return to the “charged” mode
after unlock.)
• By hand, rotate the Threaded Lead Screw on the actuator (4) counterclockwise until the Lock Nut
is barely touching the Bearing Housing (5).
The two small plastic springs should just touch, but do not deform.
• Make sure the Park Lock Lever (3) is loose and can engage and hold the Lock Wheel, (6), in
locked position, as illustrated in Figure 6-16.

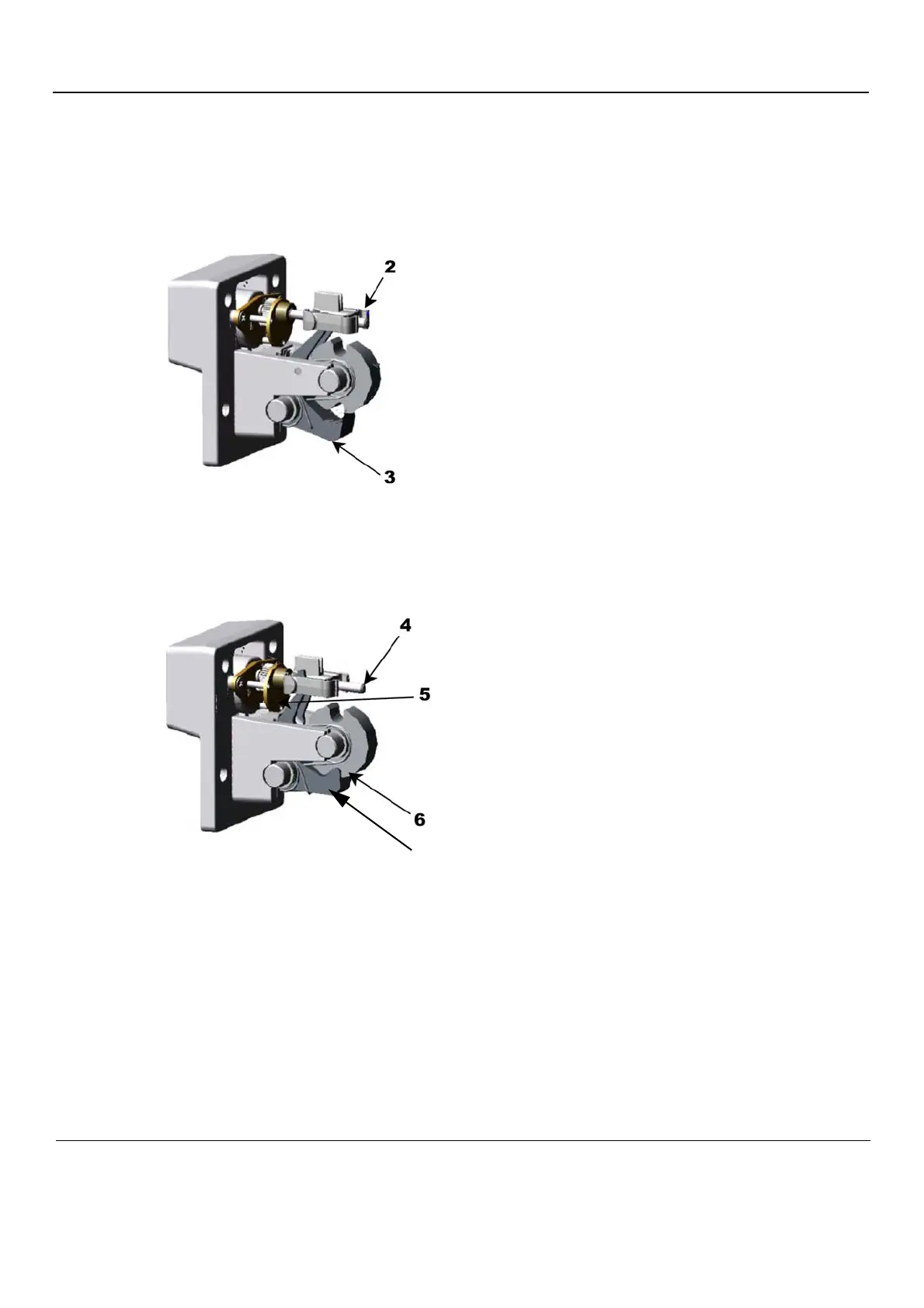

Figure 6-15 Park Lock Failure
Figure 6-16 Park Lock adjustment
