—————— TPD32-EV ——————
106
5 - CONVERTER OPERATION
5.1 KEYPAD
M- M+ AL EN n=0 Ilim
E
CANC
–
+
M- The led is lit when the drive operates
with a negative torque.
M+ The is lit when the drive operates
with a positive torque.
led
AL The led signals the intervention and
the alarm condition.
EN The is lit when the converter is
enabled.
led
n=0
The is lit when the motor speed is
lower than the threshold set by Zero
speed level.
led
Ilim
The is lit when the converter
operates at a current limit.
led
M- M+ AL EN n=0 Ilim

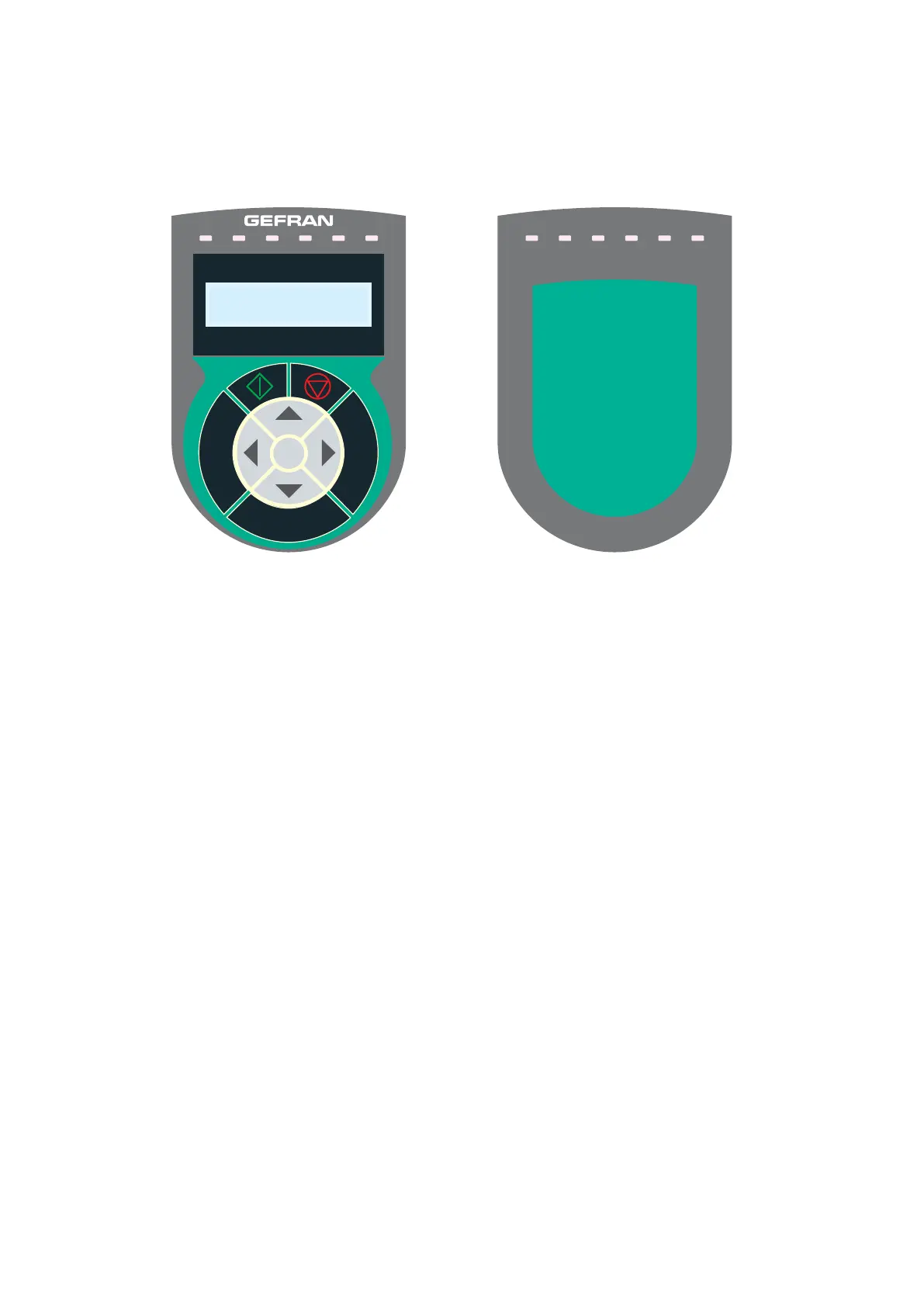

KB-TPD32-EV KC-TPD32-EV
KB-TPD32-EV programmable keypad (optional)
ThekeypadismadeofaLCDdisplaywithtwo16-digitlinesand10functionbuttons.Itisused
- tocommandthedrivewhenthissystemhasbeenselected
- todisplaythespeed,thevoltageanddiagnosticsduringtheoperatingtime
- tosetparameters
LED module KC-TPD32-EV
Inthestandarddeliverytheconvertissuppliedwiththeledmodulemountedonthefrontcover.
Itcontainssixledsforaneasymonitoringoftheconverterstatus.
TheKCmodulecanbemanuallyremovedandreplacedwiththeKeypad,whichisconnectedtotheregula-
tionboardthroughthededicatedconnector.
OntheKeypad,whichissuppliedasoptional,thesameledsattheKCmodulearemounted..
