—————— TPD32-EV ——————
62
10 mm [0.4"]
150 mm [6"]
150 mm [6"]
150 mm [6"]
10 mm [0.4"]10 mm [0.4"] 50 mm [2"]

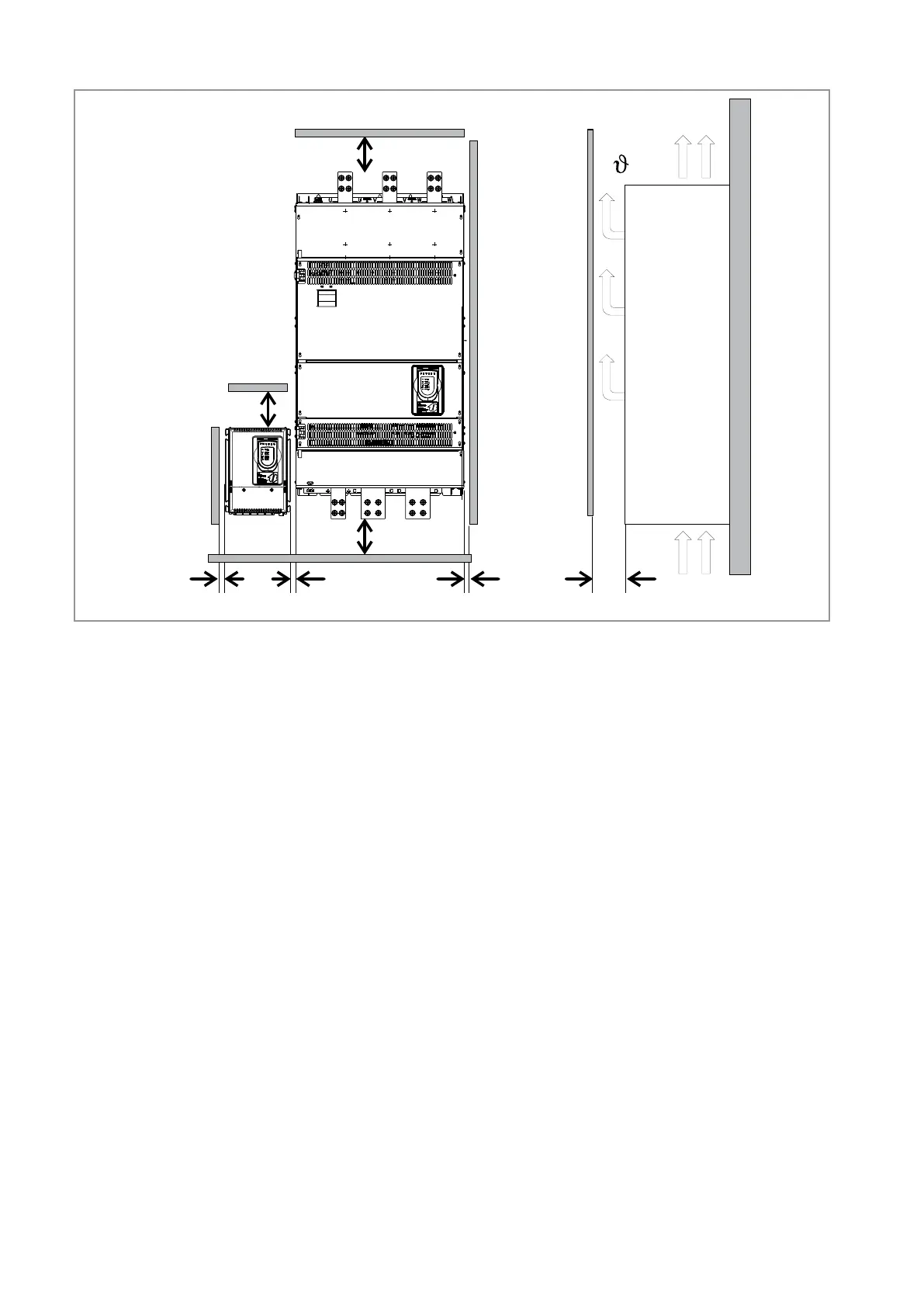

Figure 3.3.2: Mounting Clearance
