gefran TPD32-EV-500 series User Manual

—————— TPD32-EV ——————
472

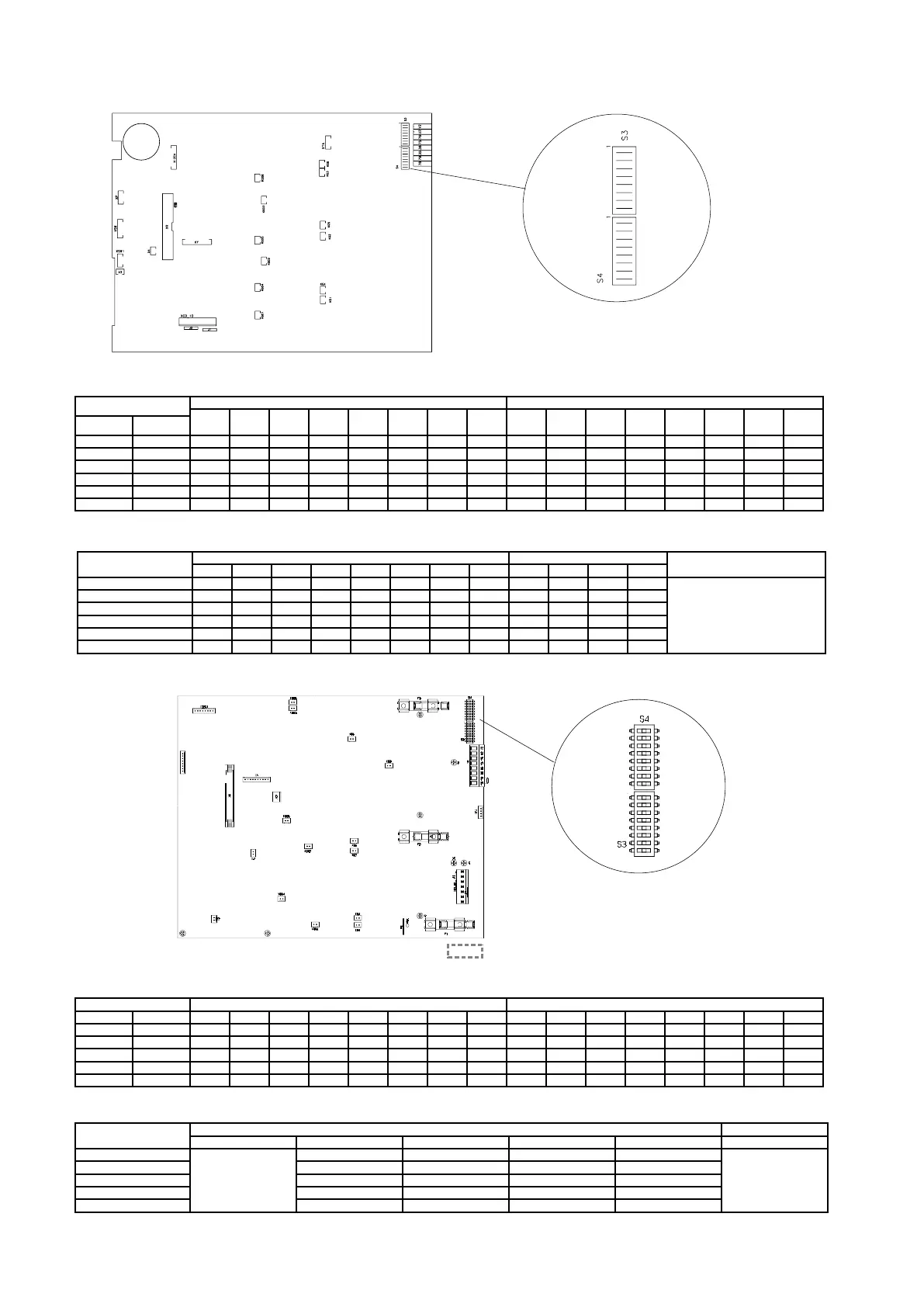

Figure 11.3.1: FIR1-... power/driver cards
4B only
Table 11.3.1-A: Selection of dip-switches “S3-XX” and “S4-XX” for FIR1-…cards
TPD32-EV-
Dip-switch Dip-switch
S3-1 S3-2 S3-3 S3-4 S3-5 S3-6 S3-7 S3-8 S4-1 S4-2 S4-3 S4-4 S4-5 S4-6 S4-7 S4-8
Standard American
20 17 ON ON ON
40 35 ON ON ON ON
70 56 ON ON ON ON
110 88 ON ON ON ON
140 112 ON ON ON
185 148 ON ON ON ON
Table 11.3.1 -B : Selection of dip-switches “S3-XX” and “S4-XX” for FIR1-…-FC cards
TPD32-EV-FC-A
Dip-switch Dip-switch
TA
S3-1 S3-2 S3-3 S3-4 S3-5 S3-6 S3-7 S3-8 S4-1 S4-2 S4-3 S4-4
20 ON
200/0.1
(ETI1188)
40 ON ON
70 ON ON
110 ON ON ON
140 ON ON ON
185 ON ON ON
Figure 11.3.2: FIR2-... power/driver card
4B only
Table 11.3.2-A: Selection of dip-switches “S3-XX” and “S4-XX” for FIR2-X-…cards
TPD32-EV- Dip-switch Dip-switch
Standard American S3-1 S3-2 S3-3 S3-4 S3-5 S3-6 S3-7 S3-8 S4-1 S4-2 S4-3 S4-4 S4-5 S4-6 S4-7 S4-8
280 224 ON ON ON ON
350 280 ON ON
420 336 ON ON ON ON
500 400 ON ON ON ON
650 450 ON ON ON ON
Table 11.3.2-B: Selection of TPD32-EV-FC for FIR2-X-…-FC cards
TPD32-EV-FC-B
Resistors T/A
R1 R2 R3 R4 R5
280
Not mounted
CUT 5R36 5R36 5R36
1:3000
350 CUT 5R36 5R36 5R36
420 CUT 5R36 5R36 5R36
500 CUT 5R36 5R36 5R36
650 5R36 CUT 5R36 5R36
