5. Assembly

PNEG-750-G2 16" Series II Sweep 131' and 135' Diameter 27

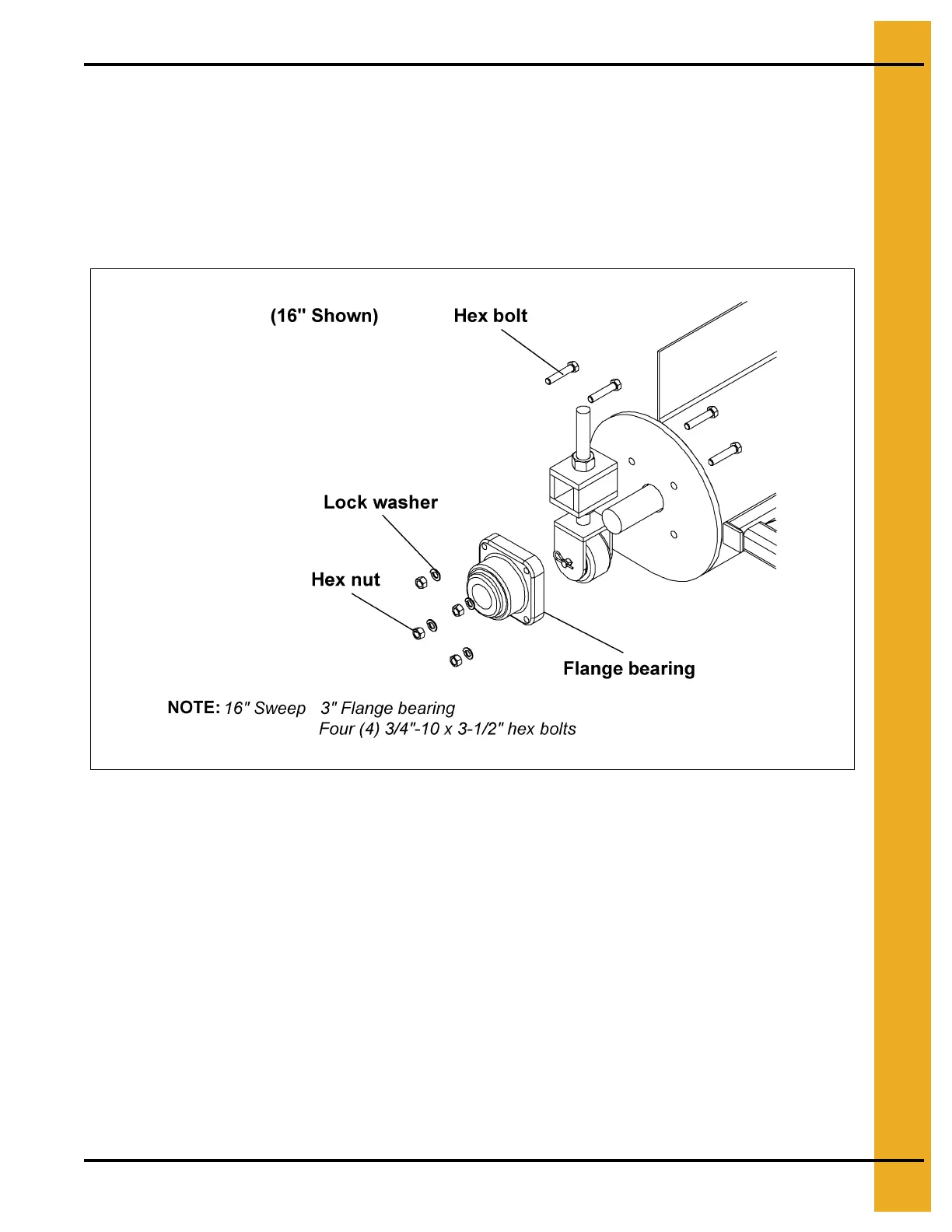

Flange Bearing Assembly

A. Slide the flange bearing onto the end stub and bolt it to the end plate using hex bolts, lock washers

and hex nuts as shown in Figure 5G.

NOTE: Do not tighten the set screws on the bearing at this time. This can be done after the gear reducer

is installed.

NOTE: Caster assembly only used on 16" sweeps with extensions.

Figure 5G

Gear Reducer Assembly

A. Slide the output shaft of the reducer through the end plate of the head section and into the end of

the head flight. Secure the reducer output shaft to the head flight with hex bolts and lock nuts.

(See Figure 5H on Page 28.)

B. Bolt the reducer to the end plate of the head section using hex bolts, flat washers and lock washers,

supplied with the reducer. (See Figure 5H on Page 28.)

NOTE: The input shaft of the reducer MUST be to the top of the reducer. Refer to the Owner’s manual

supplied with the reducer for proper vent plug, fill plug and drain plug locations.
