84 PNEG-750-G2 16" Series II Sweep 131' and 135' Diameter

Flight Components

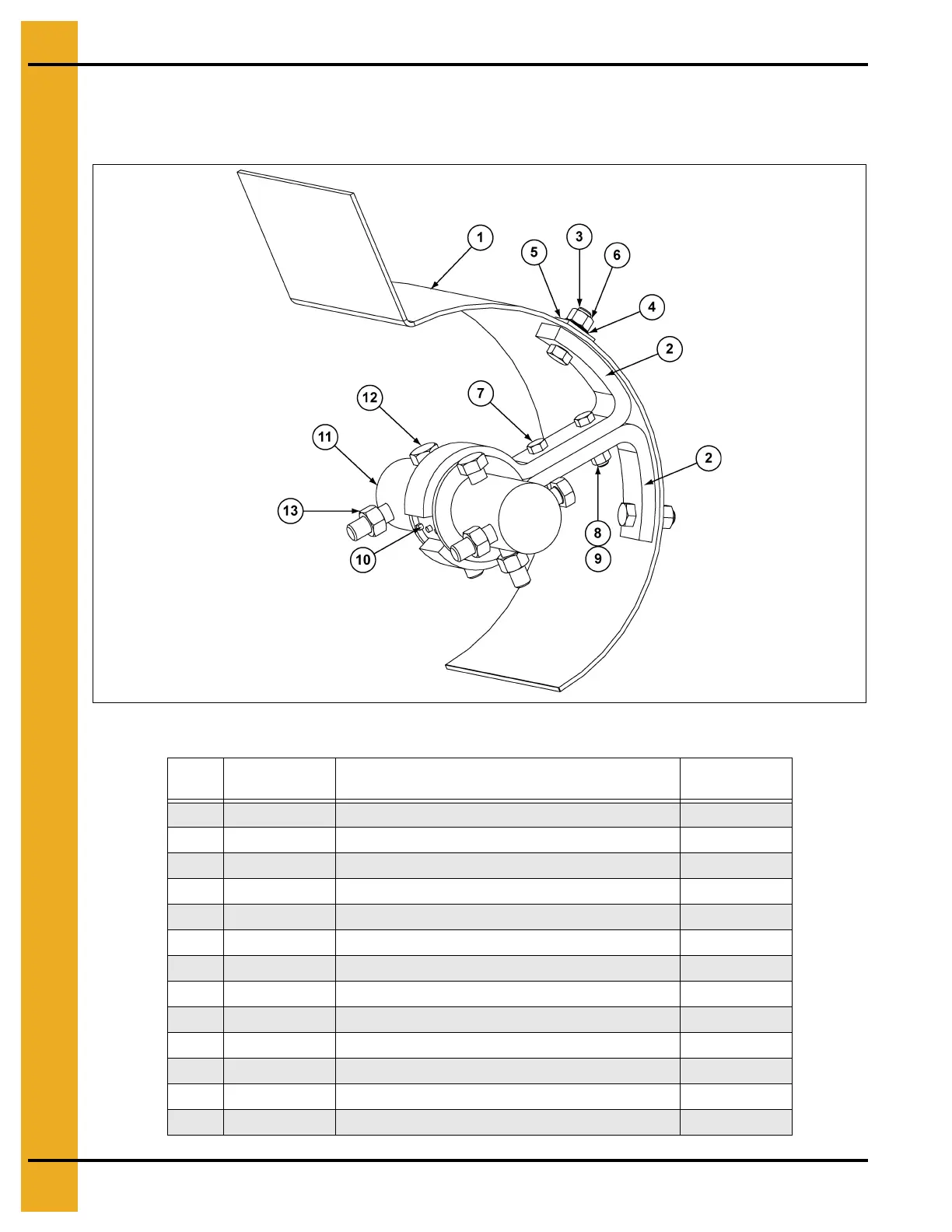

16" Flight Connection Components

16" Flight Connection Components Parts List

Ref # Part # Description

Qty per

Connection

1 Intermediate Shroud - 3/16" x 16" N/A

2 GC04064 Hanger Bearing Bracket for 16" Sweep 2

3 S-4329 Bolt, HHCS 5/8"-11 x 2" ZN Grade 8 2

4 S-3208 5/8" Split Lock Washer 2

5 S-8423 Square Flat Washer 11/16" ZN 2

6 S-4110 Hex Nut 5/8"-11 ZN Grade 5 2

7 S-7811 Bolt, HHCS 1/2"-13 x 2" ZN 2

8 S-236 1/2" Split Lock Washer ZN 2

9 S-3729 Hex Nut 1/2"-13 ZN YDP Grade 5 2

10 GC07702 Nylon Bearing: 3" 2

11 GC03559 3" Coupling Stub 1

12 S-6638 Bolt, HHCS 3/4"-10 x 5-1/2" ZN Grade 8 4

13 S-6639 Hex Nut 3/4"-10 ZN Grade 5 4
