4 - System setup
20

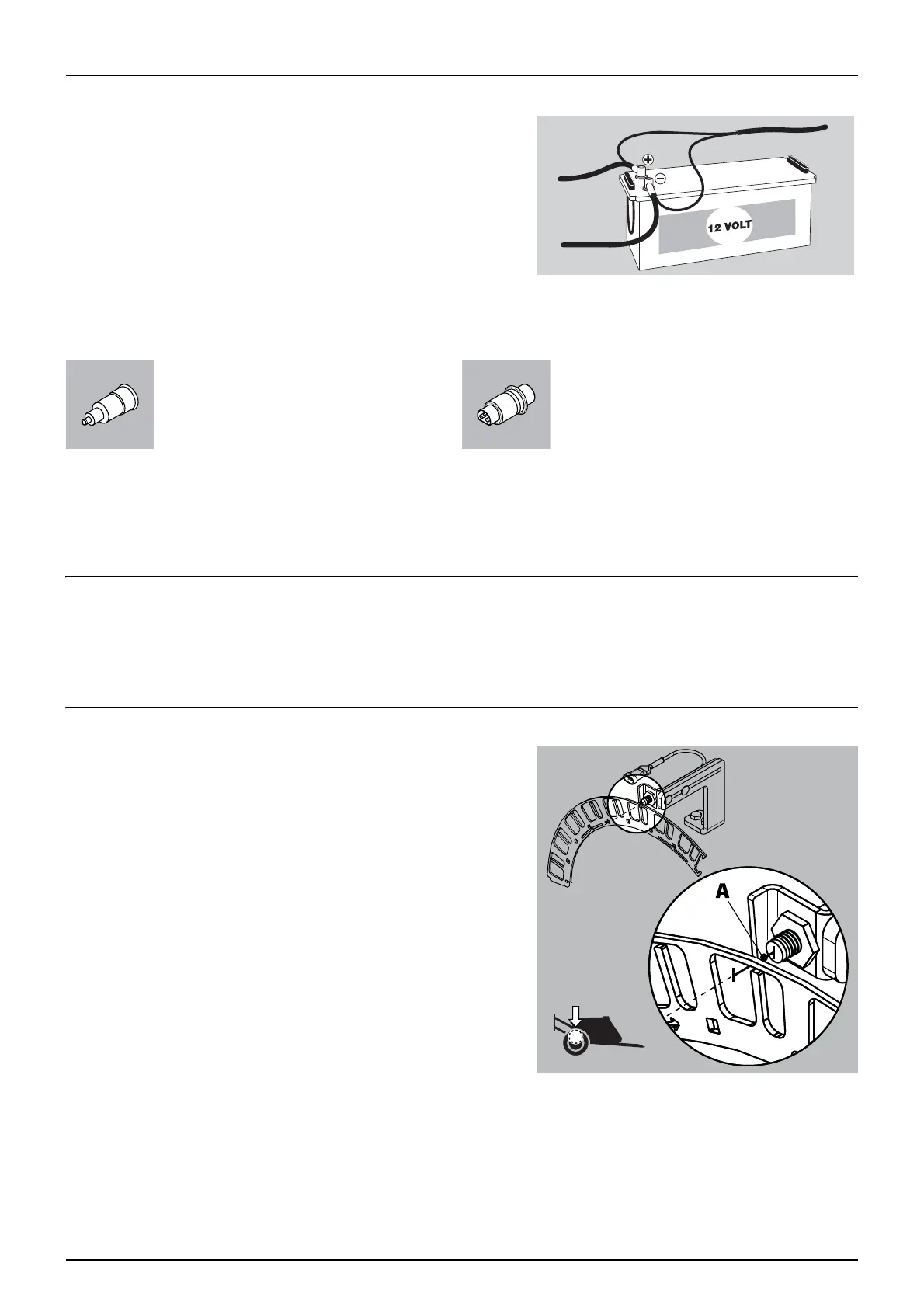

Power supply
The power requirement is 12-15 Volt DC. Always note polarity!
Brown wire is positive (+)
Blue wire is negative (-).
Power supply must come directly from the battery. For proper function
of the electric equipment, the wires must have the following
recommended cross sectional areas and correct fuses to ensure a
sufficient power supply. The delivered power connectors follows the
standard of most newer tractors. If having a tractor with another power
connector it is necessary to disassemble connector and fit it to the actual tractor connector.
Use the HARDI Electric distribution box (Ref. no. 817925) if the tractor has a doubtful wiring.
±
WARNING! Do not connect to the starter motor or generator/alternator. Warranty is void if this is done.
μ
ATTENTION! See paragraph “System start-up” for more about connecting the controller.
Printer
If the 12 Volt printer is fitted, the supplied tube can be utilised to fit the printer on the Controller/Terminal brackets.
μ
ATTENTION! The Controller/Terminal should be protected from moisture and should be removed when not in use, if
the tractor does not have a cabin.
Speed transducer for sprayer
The speed transducer is located at the inside of the sprayers right wheel.
It is an inductive type that requires a metallic protrusion to pass by it to
trigger a signal. To trigger a speed ring is used. It should be adjusted so
transducer is placed to the centre of the holes in the speed ring (vertical
direction). Recommended distance between protrusion and transducer
(A) is 3 to 6 mm. Check this in the whole circumference. Correct fitting is
indicated by constant blinking from transducer when the wheel rotates.
CIGAR CONNECTOR
Spray control unit requires:
Wire 2.5 mm, Fuse 10 Amp
Hydraulic control unit requires:
Wire 4.0 mm, Fuse 16 Amp
JOBCOM CONNECTOR
The unit requires:
Wire 6.0 mm, Fuse 25 Amp
