2.3 Basic Configuration in Startup Wizard
2.3.1 Configuring the Signal Input Channel
After the startup and login, the device system enters the Wizard for configuring the signal input.
You can also click Menu > Camera > Signal Input Status to configure the signal input.
Steps:
1. Check the checkbox to select different signal input types: TVI/CVBS, AHD or IP.
2. Click Apply to save the settings.

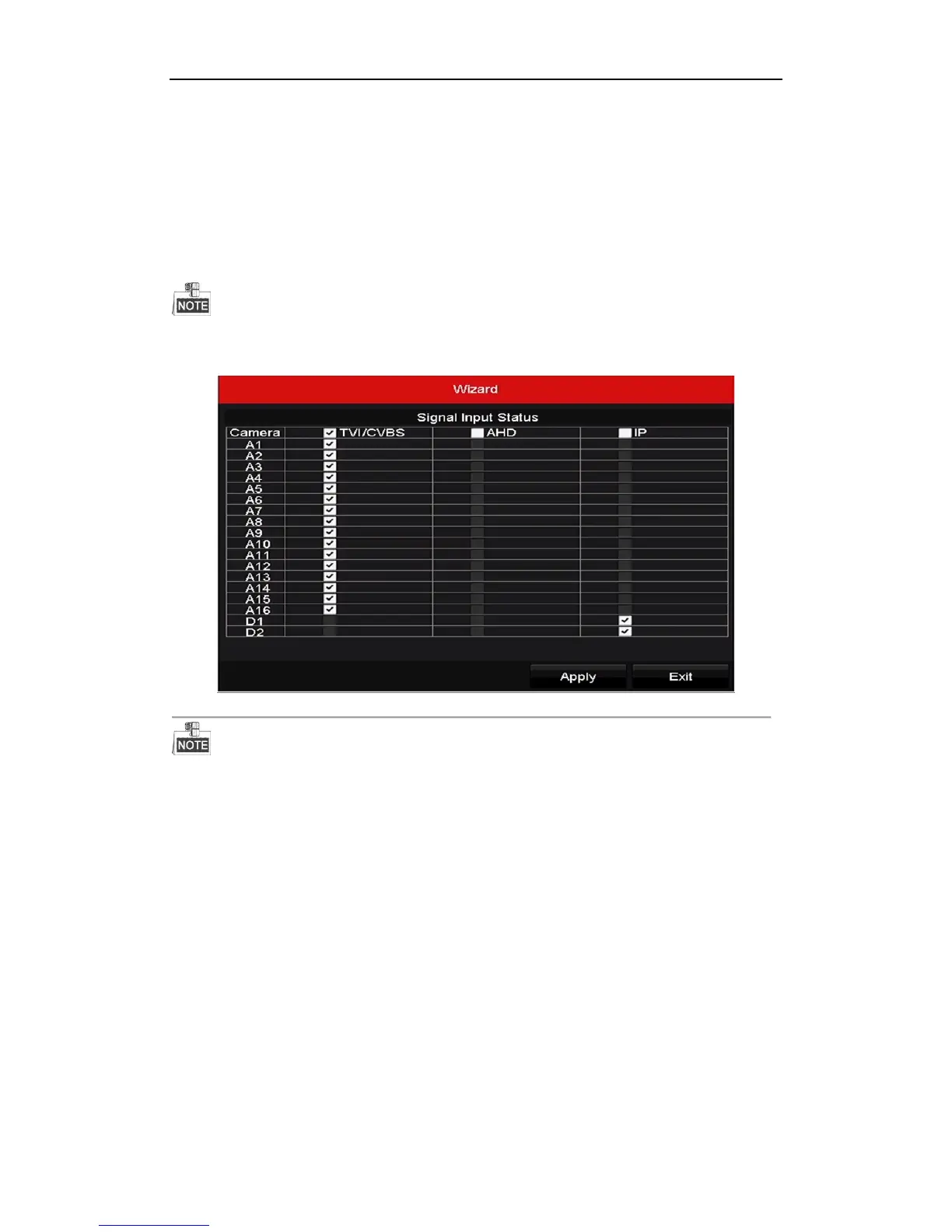

Figure 2. 5 Configure Signal Input Type
The AHD signal input is supported by the F series DVR only.
For DS-7200HUHI-F/N series DVR, 3MP and 5MP signal input types are selectable. And each two of the
TVI/CVBS, 3MP and 5MP signal can be mixed randomly.
Each two video channels are grouped in sequence, e.g., CH01 and CH02, CH03 and CH04…, and the two
channels in the same group must be connected with the same type of video source, i.e., the analog or
HD-TVI or AHD video input.
In the live view interface, when there is no video signal of the analog channel, the corresponding connectable
video signal type message can be displayed on the screen.
2.3.2 Using the Wizard for Basic Configuration
By default, the Setup Wizard starts once the device has loaded.
Selecting the language:
1. Select the language from the dropdown list.
2. Click Apply button.
