Digital Video Recorder User Manual
67
5.2 Configuring Recording Schedule
The DS-7100 models support continuous, motion and event triggered recording types, and other models
support continuous, alarm, motion, motion | alarm, motion & alarm, event and POS triggered recording
types.
In this chapter, we take the record schedule procedure as an example, and the same procedure can be applied
to configure schedule for both continuous recording.
Purpose:
Set the record schedule, and then the camera will automatically start/stop recording according to the configured
schedule.
Steps:
1. Enter the Record Schedule interface.
Menu> Record> Schedule

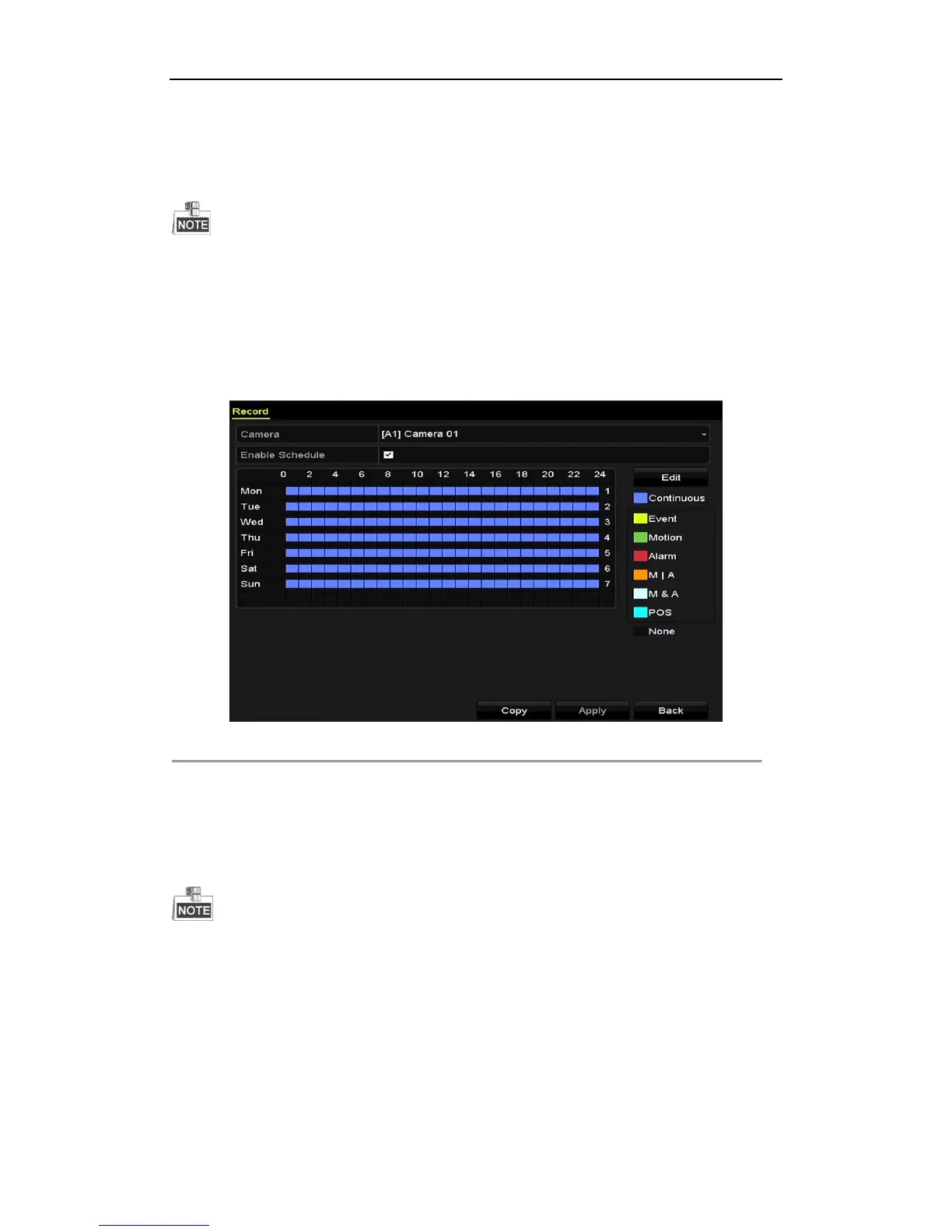

Figure 5. 7 Record Schedule
Different recording types are marked in different color icons.
Continous: scheduled recording.
Event: recording triggered by all event triggered alarm.
Motion: recording triggered by motion detection.
Alarm: recording triggered by alarm.
M/A: recording triggered by either motion detection or alarm.
M&A: recording triggered by motion detection and alarm.
POS: recording triggered by POS and alarm.
This POS recording is supported by DS-7300HQHI-F/N and DS-8100HQHI-F/N series DVR only.
2. Choose the camera you want to configure in the Camera dropdown list.
3. Check the checkbox of Enable Schedule.
4. Configure the record schedule.
Edit the schedule
1) Click Edit.
2) In the message box, you can choose the day to which you want to set schedule.
3) To schedule an all-day recording, check the checkbox after the All Day item.
