Digital Video Recorder User Manual
43
2.6 Configuring the Signal Input Channel
The F1/N, F2/N, and F1/F2 series DVR supports the AHD video input. You must define each analog channel to
TVI/CVBS, AHD or IP signal input before connecting the camera. And the channel must be connected with the
same video input type which you configure on the menu.
Steps:
1. Enter the Signal Input Status interface.
Menu > Camera > Signal Input Status
2. Check the checkbox to select different signal input types: TVI/CVBS, AHD or IP. And for
DS-7200HUHI-F/N models, the 3MP and 5MP video input types are selectable.

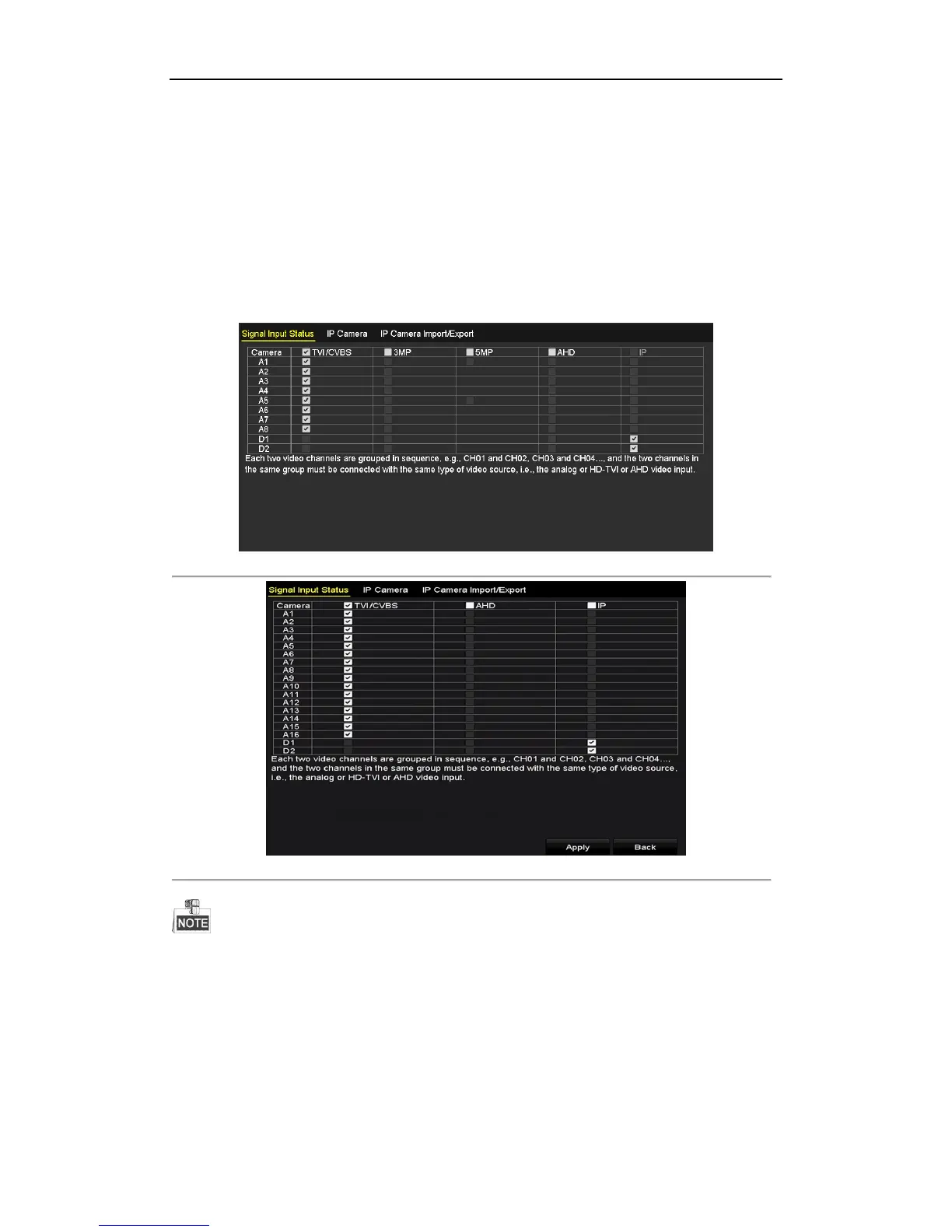

Figure 2. 29 Configure Signal Input Type for DS-7200HUHI-F/N
Figure 2. 30 Configure Signal Input Type
3. Click Apply to save the settings.
Each two video channels are grouped in sequence, e.g., CH01 and CH02, CH03 and CH04…, and the two
channels in the same group must be connected with the same type of video source, i.e., the analog or
HD-TVI or AHD video input.
For DS-7200HUHI-F/N models, the 3MP and 5MP video input types are selectable. Each two types of
TVI/CVBS, 3MP and 5MP signal can be mixed randomly.
In the live view interface, when there is no video signal of the analog channel, the corresponding connectable
video signal type message can be displayed on the screen.
