HIKVISION DS-K1T803F User Manual

Fingerprint Access Control Terminal·User Manual
74

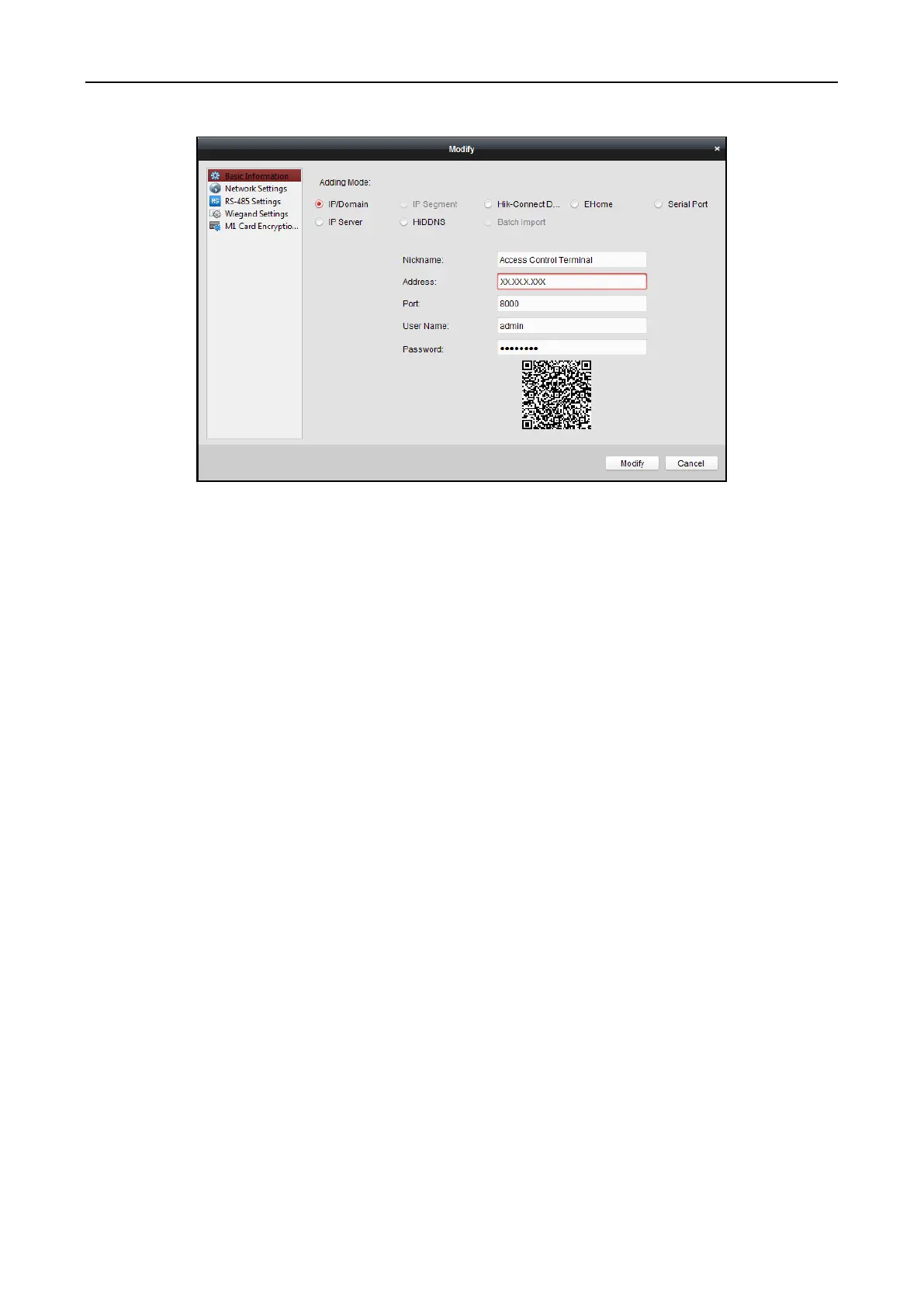

4. Edit the device information, including the adding mode, the device name, the device IP address,
port No., user name, and the password.
5.4.4 Network Settings
Purpose:
After adding the access control device, you can set the uploading mode, and set the network
center and wireless communication center.
Select the device in the device list, and click Modify to pop up the modifying device information
window.
Click Network Settings tab to enter the network settings interface.
Uploading Mode Settings
Purpose ：
You can set the center group for uploading the log via the EHome protocol.
Steps:
1. Click the Uploading Mode tab.

HIKVISION DS-K1T803F Specifications

General

Brand	HIKVISION
Model	DS-K1T803F
Category	IP Access Controllers
Language	English
