Network Traffic Camera • User Manual
45

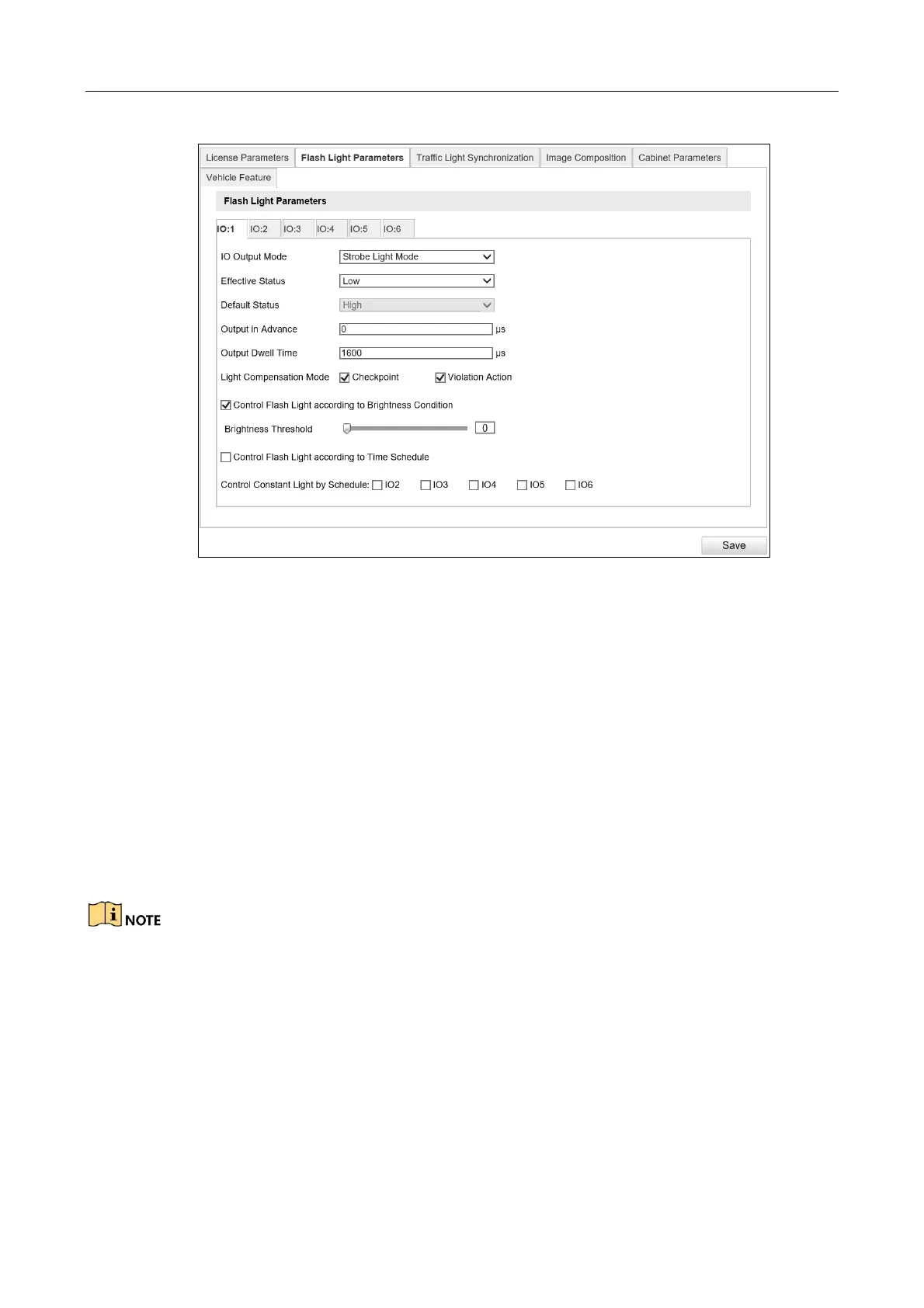

Figure 9-2 Flash Light Parameters Configuration
Step 3 Select IO Output Mode. Strobe Light Mode and Polarize Mode are selectable.
 Strobe Light Mode
1) Select Effective Status. Pulse, High, and Low are selectable.
− High Level/Low Level: The effective status should stay different with the default status
for I/O to take effect. And the default status changes according to the
selection of the effective status. If you set the effective status as high level,
the default level goes to low level. The selection of high/low level is
applicable to burst light.
− Pulse: If you set the effective status as pulse, you can select the default status as high
level or low level. The selection of pulse is applicable to strobe light.

When you select Capture Mode as Strobe in Application mode, we recommend that select
Effective Status as Pulse, and select Default Status as Low.

When you select Capture Mode as Burst in Application mode, we recommend that select
Effective Status as High, and select Default Status as Low.
2) Enter Output in Advance. It refers to the preact time [0 to 1000 μs] of the flash light,
to ensure that the flash light is on when triggered.
