SPECIFICATIONS
12-12

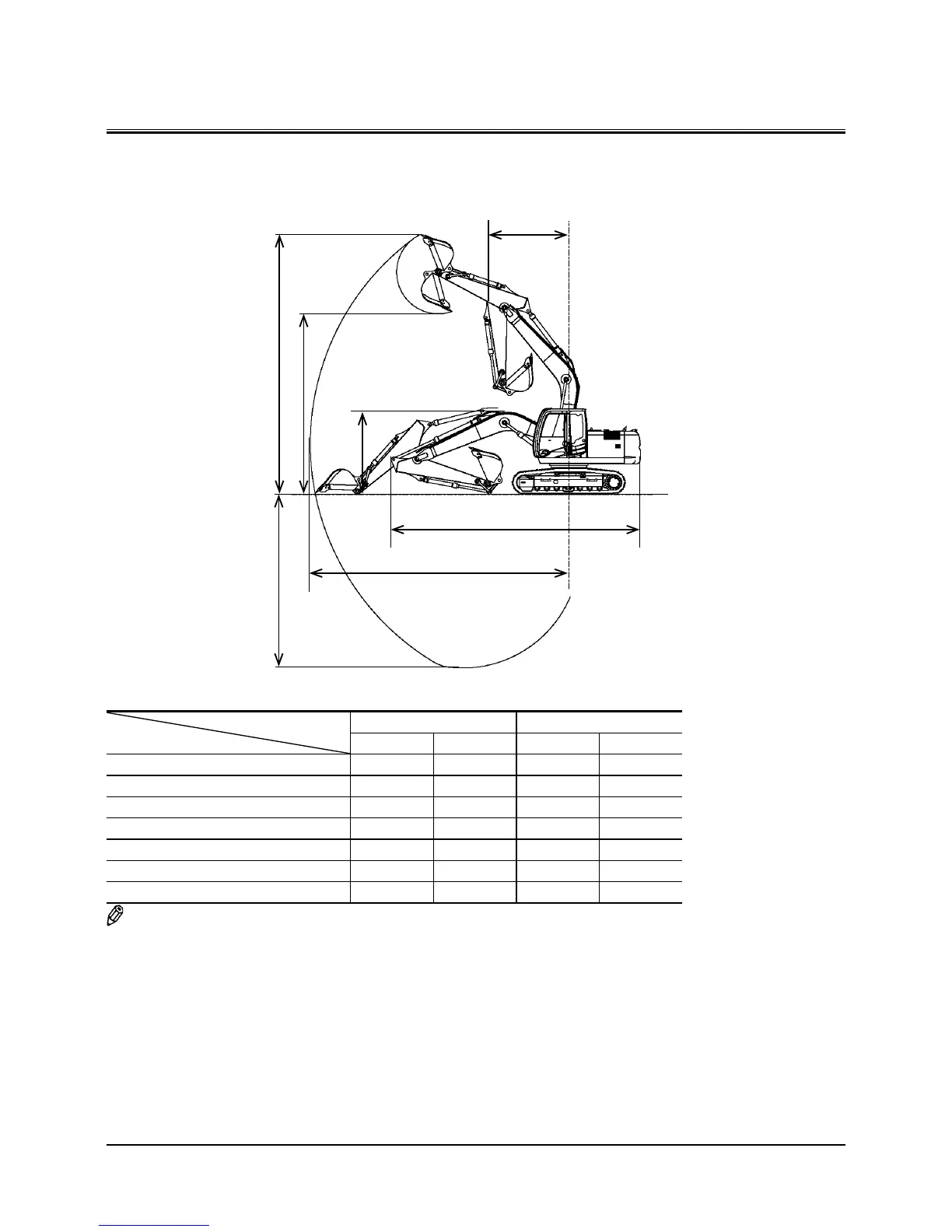

WORKING RANGES
ZX160LC-3 (Machine with Mono Boom)
Category
Item
2.22 m (7 ft 4 in) Arm 2.58 m (8 ft 6 in) Arm
mm ft•in mm ft•in
A: Maximum Digging Reach
8520 27’12” 8870 29’2”
B: Maximum Digging Depth
* 5620 * 18’6” * 5980 * 19’8”
C: Maximum Cutting Height
* 8620 * 28’4” * 8880 * 29’2”
D: Maximum Dumping Height
* 5940 * 19’6” * 6170 * 20’3”
E: Overall Height
3190 10’6” 3010 9’5”
F: Overall Length
8650 28’5” 8550 28’1”
G: Minimum Swing Radius
3290 10’10” 2910 9’7”
NOTE: * The dimensions do not include the height of the shoe lug.
T1T1-01-01-003
C
B
D
A
F
E
G

Hitachi ZAXIS 270-3 class Specifications

General

Brand	Hitachi
Model	ZAXIS 270-3 class
Category	Excavators
Language	English
