Hitachi ZAXIS 270-3 class User Manual

OPTIONAL ATTACHMENTS AND DEVICES
13-38

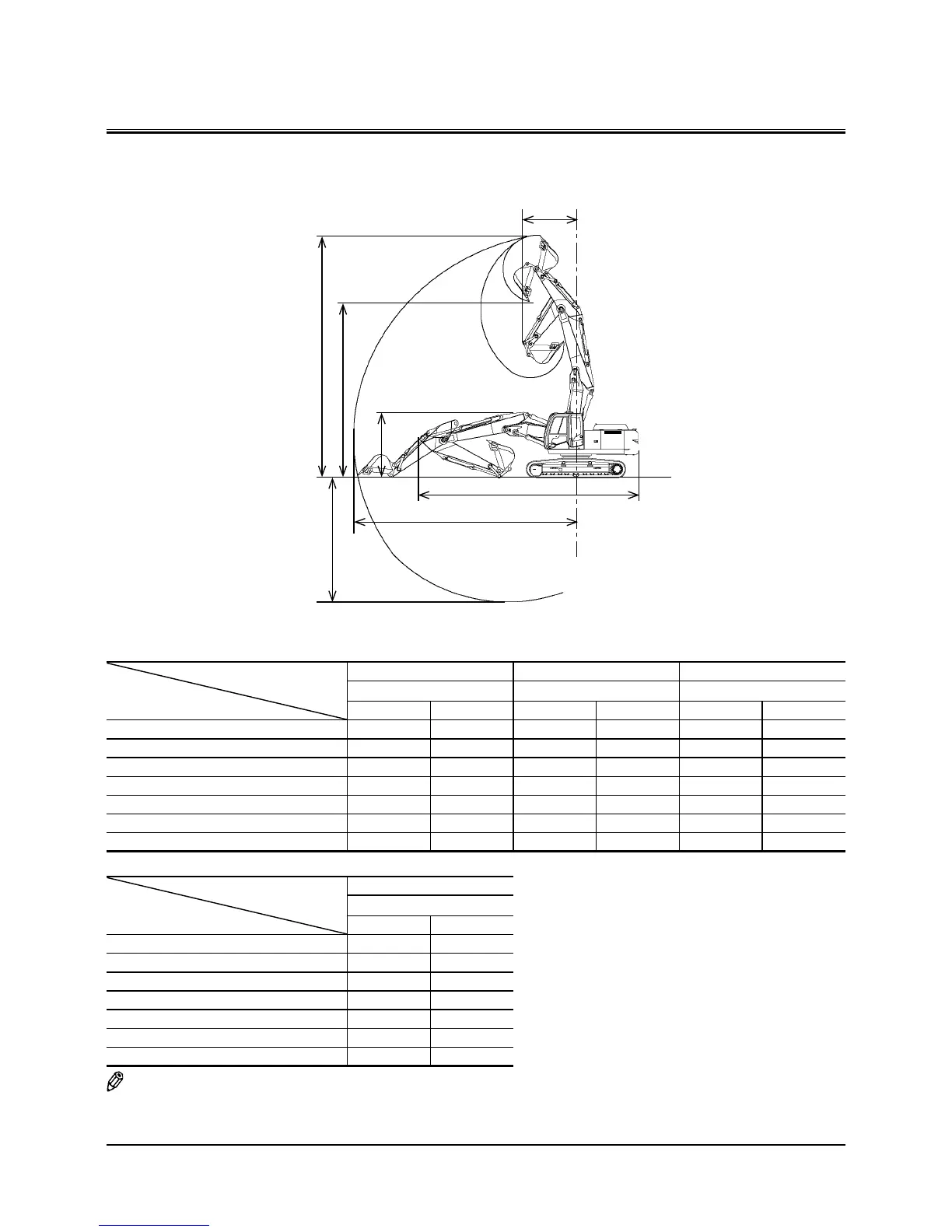

WORKING RANGES
ZX250LC-3, 250LCN-3 2-piece Boom
Category
Item
2.19 m (7 ft 2 in) Arm 2.50 m (8 ft 2 in) Arm 2.96 m (9 ft 9 in) Arm
Backhoe Backhoe Backhoe
mm ft•in mm ft•in mm ft•in
A: Maximum Digging Reach
9770 32’1” 10010 32’10” 10430 34’3”
*B: Maximum Digging Depth
5810 19’1” 6080 19’11” 6530 21’5”
*C: Maximum Cutting Height
11300 37’1” 11470 37’8” 11840 38’10”
*D: Maximum Dumping Height
8210 26’11” 8350 27’5” 8720 28’7”
E: Overall Height
3150 10’4” 3200 10’6” 3090 10’2”
F: Overall Length
10230 33’7” 10250 33’8” 10220 33’6”
G: Minimum Swing Radius
2500 8’2” 2560 8’5” 2310 7’7”
Category
Item
3.61 m (11 ft 10 in) Arm
Backhoe
mm ft•in
A: Maximum Digging Reach
11070 36’4”
*B: Maximum Digging Depth
7190 23’7”
*C: Maximum Cutting Height
12420 40’9”
*D: Maximum Dumping Height
9300 30’6”
E: Overall Height
3340 11’0”
F: Overall Length
10190 33’5”
G: Minimum Swing Radius
2610 8’7”
NOTE: * The dimensions do not include the height of the shoe lug.
M1V1-13-003
A
G
B
D
C
F
E
Backhoe
