SPECIFICATIONS
12-38

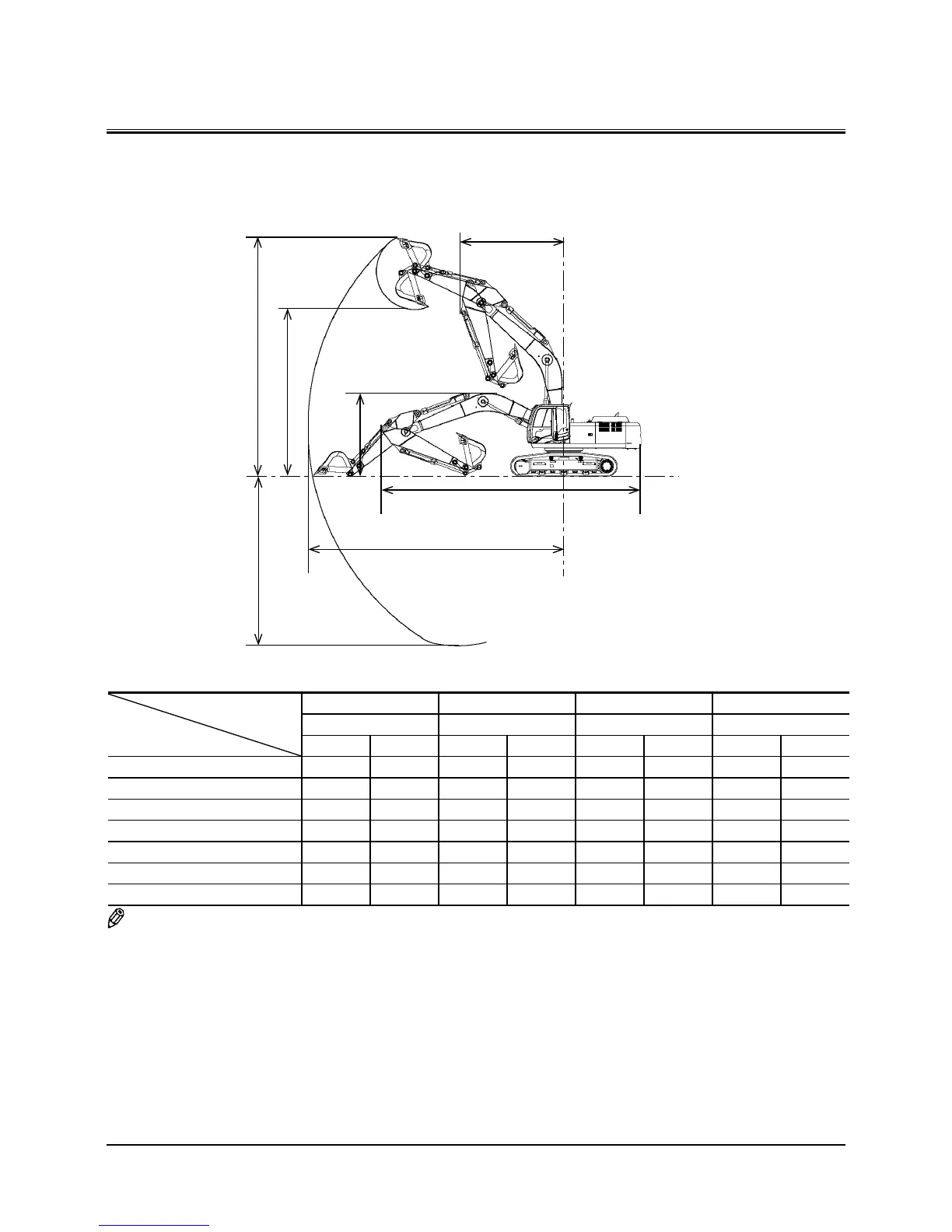

WORKING RANGES
ZX350LC-3, 350LCN-3
Category
Item
2.33 m (7 ft 8 in) Arm 2.67 m (8 ft 9 in) Arm 3.20 m (10 ft 6 in) Arm 4.00 m (13 ft 1 in) Arm
Backhoe Backhoe Backhoe Backhoe
mm ft•in mm ft•in mm ft•in mm ft•in
A: Maximum Digging Reach
10310 33’10” 10570 34’8” 11100 36’5” 11860 38’11”
B: Maximum Digging Depth
* 6500 * 21’4” * 6840 * 22’5” * 7380 * 24’3” * 8180 * 26’10”
C: Maximum Cutting Height
* 9980 * 32’9” * 9990 * 32’9” * 10360 * 34’0” * 10570 * 34’8”
D:
Maximum Dumping Height
* 6900 * 22’8” * 6940 * 22’9” * 7240 * 23’9” * 7630 * 25’0”
E: Overall Height
3510 11’6” 3470 11’5” 3270 10’9” 3600 11’10”
F: Overall Length
11170 36’8” 11130 36’6” 11000 36’1” 11090 36’5”
G: Minimum Swing Radius
4460 14’8” 4610 15’2” 4460 14’8” 4470 14’8”
NOTE: * The dimensions do not include the height of the shoe lug.
M1V1-12-004
A
G
B
D
C
F
Backhoe
E
