OPTIONAL ATTACHMENTS AND DEVICES
13-41

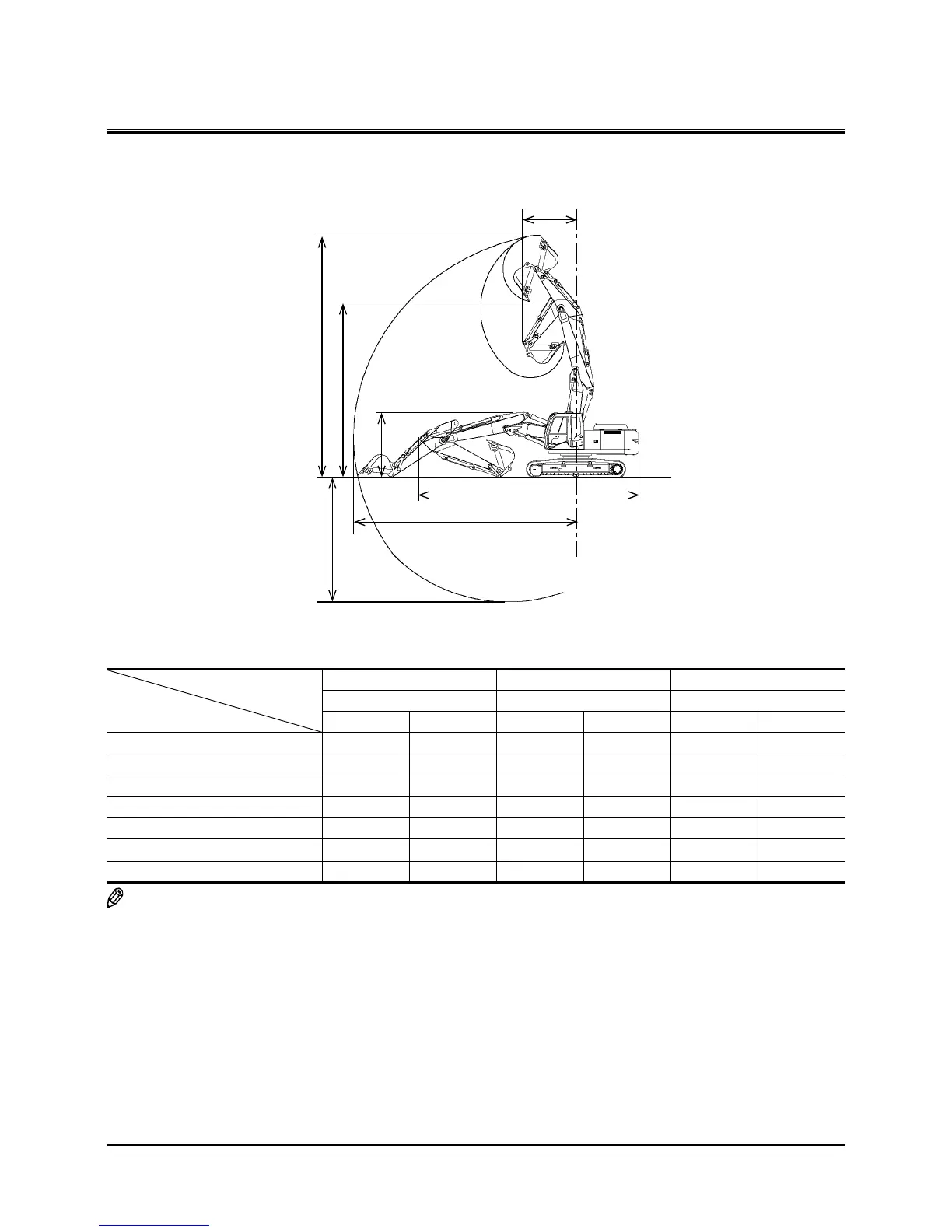

WORKING RANGES
ZX280LC-3, 280LCN-3 2-piece Boom
M1V1-13-003
A
G
B
D
C
F
E
Backhoe
Category
Item
2.42 m (7 ft 10 in) Arm 3.11 m (10 ft 2 in) Arm 3.76 m (12 ft 4 in) Arm
Backhoe Backhoe Backhoe
mm ft•in mm ft•in mm ft•in
A: Maximum Digging Reach
10070 33’1” 10740 35’3” 11330 37’2”
*B: Maximum Digging Depth
6020 19’9” 6690 21’11” 7330 24’ 1”
*C: Maximum Cutting Height
11500 37’9” 12080 39’8” 12550 41’2”
*D: Maximum Dumping Height
8390 27’6” 8960 29’5” 9430 30’11”
E: Overall Height
3220 10’7” 3150 10’4” 3380 11’1”
F: Overall Length
10330 33’11” 10300 33’10” 10310 33’10”
G: Minimum Swing Radius
2820 9’3” 2580 8’6” 2740 9’0”
NOTE: * The dimensions do not include the height of the shoe lug.
