Hitachi ZAXIS 270-3 class User Manual

OPTIONAL ATTACHMENTS AND DEVICES
13-28

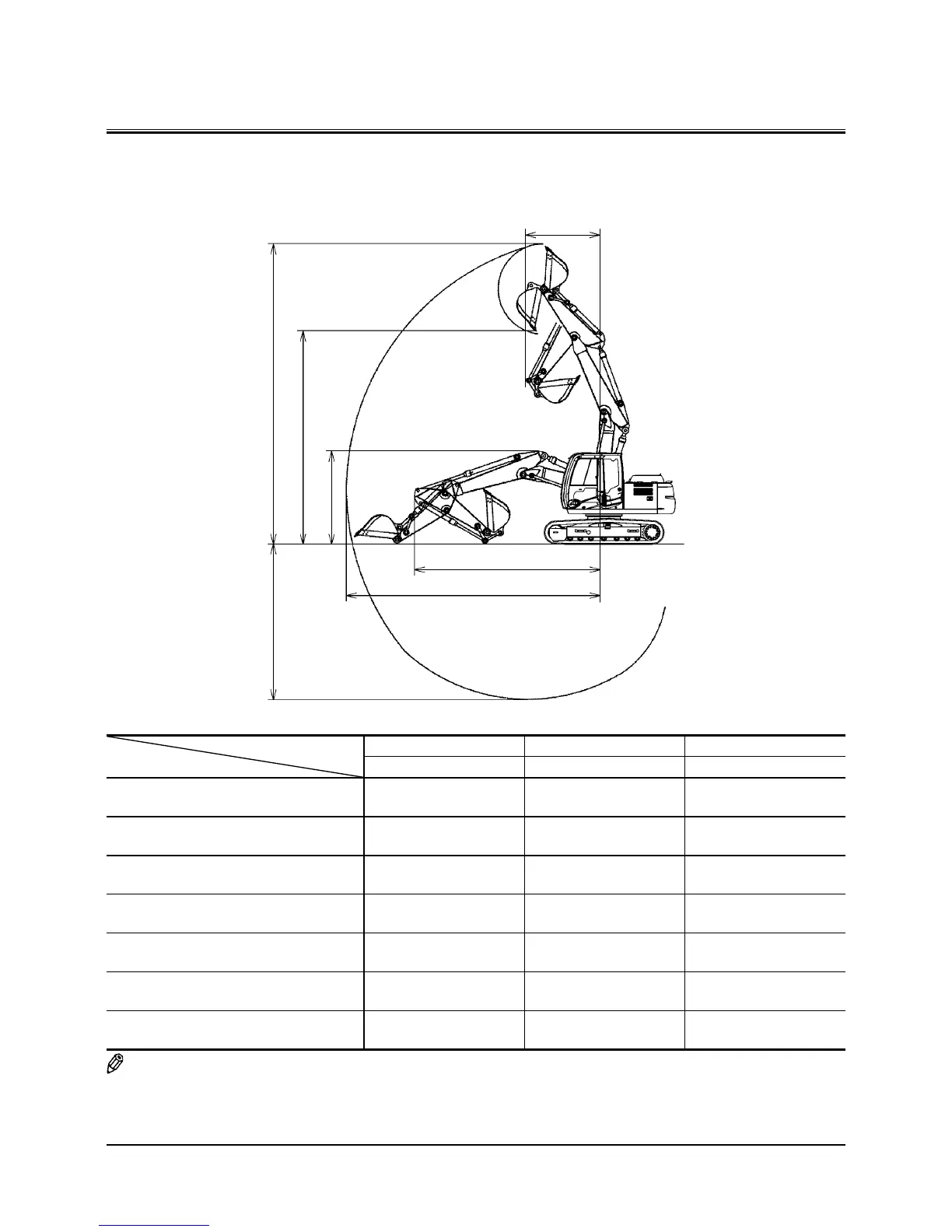

WORKING RANGES
ZX130-3, 130LCN-3 2-piece Boom
Category
Item
2.10 m (6 ft 11 in) Arm 2.52 m (8 ft 3 in) Arm 3.01 m (9 ft 11 in) Arm
Backhoe Backhoe Backhoe
A: Maximum Digging Reach mm
(ft•in)
7950
(26' 1")
8320
(27' 4")
8800
(28' 11")
*1 B: Maximum Digging Depth mm
(ft•in)
4940
(16' 3")
5340
(17' 6")
5830
(19' 2")
*1 C: Maximum Cutting Height mm
(ft•in)
9070
(29' 9")
9390
(30' 10")
9820
(32' 3")
*1 D: Maximum Dumping Height mm
(ft•in)
6610
(21' 8")
6930
(22' 9")
7360
(24' 2")
E: Overall Height mm
(ft•in)
2740
(9' 0")
2740
(9' 0")
*2 2740
(9' 0")
F: Overall Length mm
(ft•in)
7610
(25' 0")
7590
(24' 11")
7590
(24' 11")
G: Minimum Swing Radius mm
(ft•in)
1750
(5' 9")
1820
(6' 0")
2000
(6' 7")
NOTE: *1 The dimensions do not include the height of the shoe lug.
*2 The dimensions asterisked are for transport pin position.
M1U1-12-006
A
G
C
D
E
F
B
