OPERATOR'S STATION
1-25

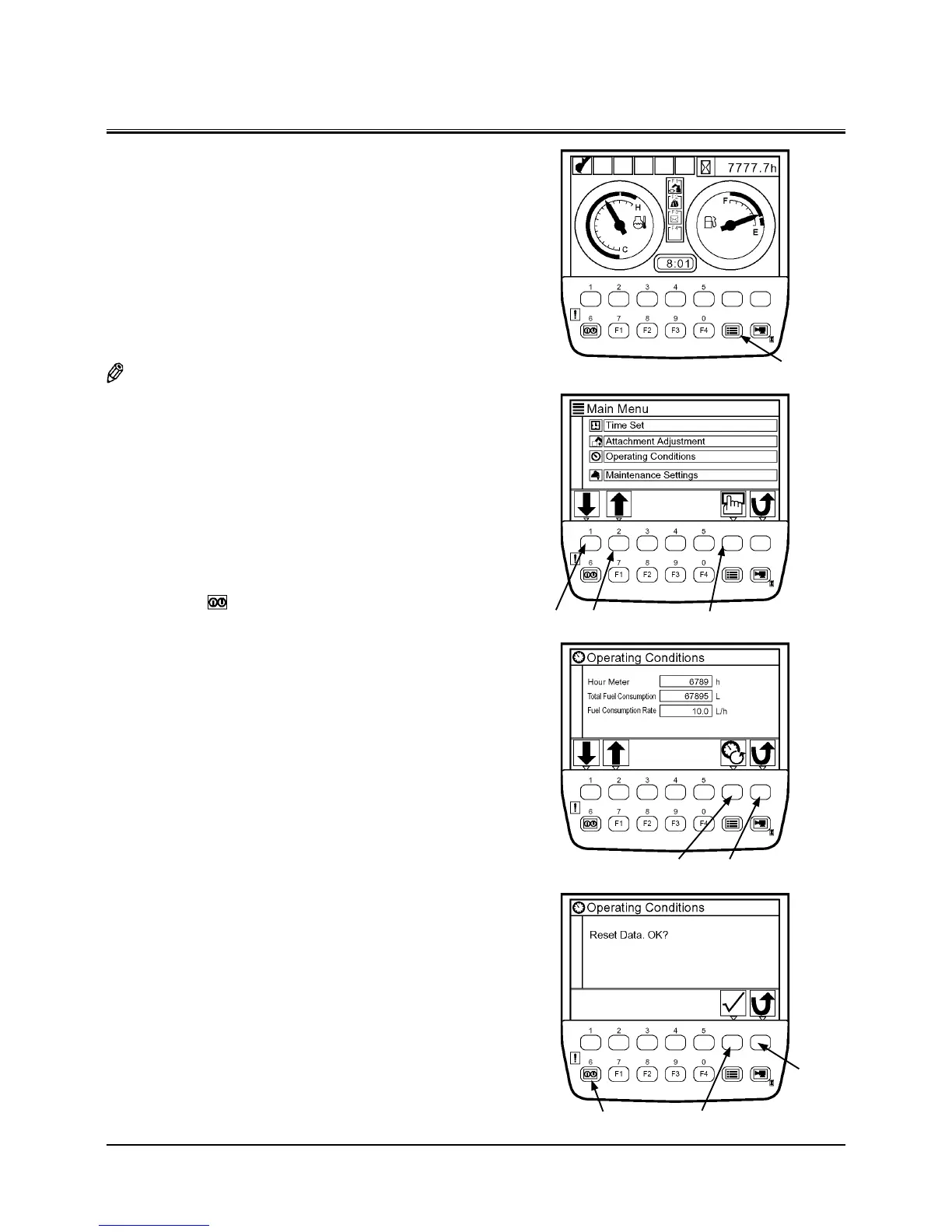

DISPLAYING OPERATING CONDITIONS
1. When the basic screen displayed, push the menu key and
display main menu.
2. Select operating conditions from main menu by using
keys 1 and 2. Push the determination key. Then, the oper-
ating conditions screen displays.
3. Push the reset key, and display the data reset confirm
screen.
When reset the data, push the determination key.
NOTE: When pushing the back key, return to the previous
screen.
IMPORTANT: Total fuel consumption and fuel consump-
tion rate depend on the operating environ-
ment and the operation method of machine.
The values shown on the screen are just for
reference.
There could arise ± 20% of differences be-
tween actual fuel consumption and fuel con-
sumption which is displayed by the monitor
unit.
4. Push key 6 , and the basic screen displays.
Back KeyReset Key
Back Key
Determination KeyKey 6
Menu Key
Determination KeyKey 2Key 1
T1V1-05-01-123
Basic Screen
T1V5-05-01-019
T1V5-05-01-025
T1V5-05-01-026
To Next Page
